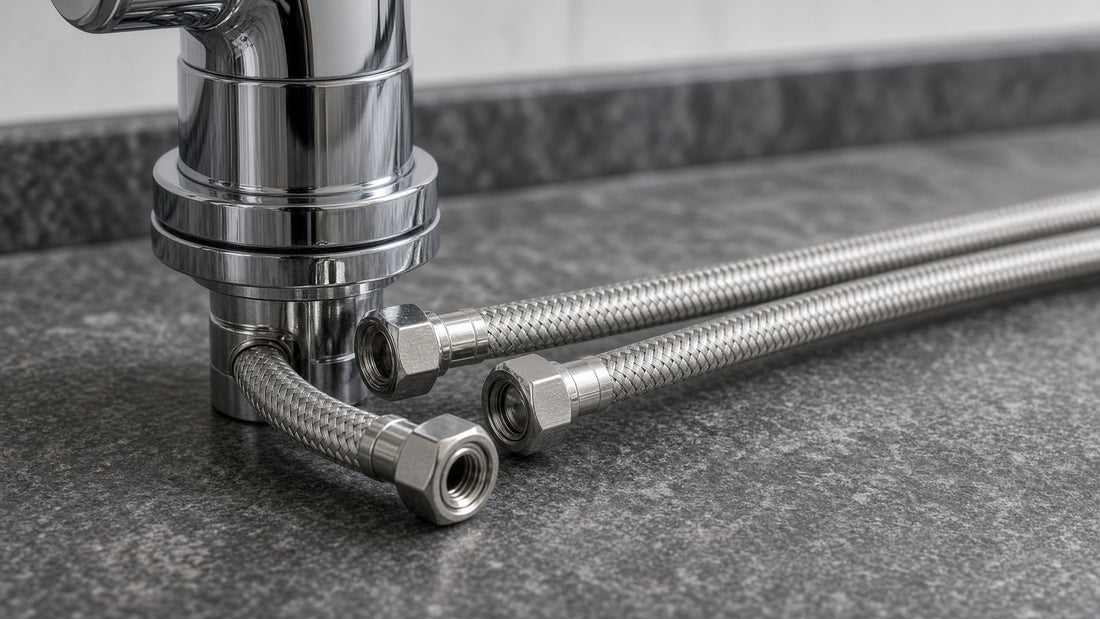

Bathroom Faucet With Attached Supply Lines: What to Verify

You open the box for your new fixture, expect to see the standard threaded brass shanks protruding from the bottom, and instead find long, flexible hoses permanently embedded directly into the metal body. This design shift often catches homeowners off guard during a weekend vanity update. Instead of threading on separate connectors, you must route these factory-sealed tubes through the mounting deck and straight to the wall stops.

Working with a bathroom faucet with supply lines attached requires adjusting your normal pre-installation checklist. The permanent nature of these connections shifts the immediate focus from finding separate, correctly sized hoses to confirming your existing under-sink environment can accommodate the unalterable factory configuration without modification.

Assessing Factory Hose Length Limits

The most critical restriction with integrated hoses involves their absolute maximum vertical and horizontal reach. Unlike traditional bare-shank setups where you can buy longer braided tubes at the hardware store, these factory-installed lines cannot be swapped out if they fall short of your shutoff valves. You must determine the exact physical distance from the mounting deck down to the wall stops before securing the hardware.

Discovering a length deficit during the physical installation halts the entire project immediately. While extension adapter fittings exist on the market, adding extra threaded joints between the fixture and the valve introduces unnecessary potential failure points. You want to rely solely on the continuous factory bathroom faucet supply lines whenever possible to maintain a secure, uninterrupted path for the incoming water pressure.

Evaluate the actual route the flexible material will take, factoring in the sweeping curve required to bend the tubing without kinking the inner core. Pulling a line taut straight from the shutoff valve to the fixture body stresses the internal crimp connections hidden inside the brass housing. Always allow for a relaxed, natural drop under the sink basin to ensure long-term structural reliability.

Identifying Shutoff Valve Thread Compatibility

The permanent hoses emerging from your new fixture terminate in specific metal nuts designed to mate directly with wall or floor shutoff valves. You must inspect your existing plumbing to verify these ends will thread onto the stops securely. Most contemporary integrated setups feature three-eighths-inch compression fittings at the valve end, which serves as the current industry standard for residential plumbing rough-ins.

Older properties sometimes present a physical mismatch if the original shutoff stops utilize half-inch connections or rely on older sweat-soldered copper risers. Dealing with incompatible connections requires a different strategy since you cannot simply swap the flexible tube for one with different ends. You will need to address the thread discrepancy directly at the wall stop rather than at the fixture body.

Replacing the shutoff valves themselves provides the cleanest, most reliable solution if the existing threads do not match the new integrated lines. Swapping out old multi-turn gate stops for modern quarter-turn ball valves equipped with standard three-eighths-inch outlets ensures the new hoses connect properly. This direct approach eliminates the need for bulky brass thread adapters that clutter the cramped space inside the vanity.

Navigating Basin Hole Clearances

Pushing a modern fixture with integrated lines down through a traditional ceramic sink deck presents unique physical routing challenges. Instead of dropping a clean brass shank through the porcelain and attaching lines from below later, you must feed the bulky end nuts and the hoses through the mounting hole simultaneously. Some older sink designs feature narrow, closely spaced drillings that barely accommodate standard hardware.

You must carefully thread the lines one at a time if the sink hole diameter feels restrictive during the initial test fit. Forcing both metal compression nuts through the opening concurrently can scratch the sink material or crush the delicate metal braiding surrounding the inner hoses. Staggering the nuts as you lower the fixture body prevents binding and protects the finish of your basin.

Centerset models with integrated lines often contain additional moving elements like a metal pull-rod for the drain stopper passing through the exact same central space. Routing the flexible hoses around these internal mechanical parts before they drop into the cabinet requires extreme patience. Verify the tubes do not entangle the lift rod, as this would prevent the pop-up drain assembly from operating smoothly.

Managing Excess Tubing Under Sinks

Sometimes the provided factory lines exceed the necessary distance to the wall stops by a significant margin. Having an abundance of flexible tubing coiling around the cabinet interior might seem harmless, but improper physical management leads to flow restrictions. Hoses that droop too low can snag on stored items, cleaning supply bottles, or slide-out drawer tracks hidden beneath the vanity surface.

Creating a wide, horizontal loop takes up the slack safely without stressing the braided exterior. You must avoid forcing the lines into tight circles or severe bends that pinch the internal polymer core, which reduces the effective bathroom faucet supply lines size and drops the water pressure. A broad loop allows the water to flow freely while keeping the extra material elevated.

Securing the looped lines lightly against the back wall of the cabinet prevents accidental pulling or tangling. Using loose plastic zip ties or rounded pipe straps keeps the routing tidy, but you must ensure these restraints never compress the flexible tubing. The objective is organizing the storage space underneath while maintaining the full internal diameter of the hoses.

Addressing Potential Leak Points

Integrated hoses completely remove the threaded connection point directly under the fixture body, effectively eliminating one common source of drips. The focus then shifts entirely to the connection point at the wall stop. Because the lines are permanently fixed at the top, any twisting motion applied to the hose during tightening directly transfers mechanical stress straight up into the main faucet housing.

You must hold the flexible line completely stationary while tightening the lower compression nut onto the shutoff valve threads. Allowing the braided line to rotate with your primary wrench creates a twisted hose that constantly attempts to uncoil itself inside the cabinet. This persistent rotational tension can eventually compromise the vital factory crimp hidden deep inside the fixture body.

Gripping the metal ferrule or the rigid portion just above the spinning nut with pliers while turning the nut with an adjustable wrench prevents this dangerous twisting. Applying this dual-tool technique ensures the hose remains in its relaxed, natural factory orientation. Verifying the line sits perfectly straight and untwisted serves as a crucial final visual check before turning the main water back on.

Adapting Kitchen Techniques For Bathrooms

Homeowners familiar with researching how to install kitchen faucet supply lines will notice immediate structural similarities with these integrated bathroom models. Pull-down kitchen fixtures have relied on factory-attached hoses for many years to accommodate the moving spray wand mechanisms inside the tall spout. The primary difference lies in the highly confined workspace found under a standard bathroom vanity compared to a spacious kitchen setup.

The core principles of avoiding cross-threading and respecting minimum bend radius limitations apply equally to both plumbing environments. However, bathroom configurations often position the shutoff valves awkwardly behind decorative pedestal columns or tightly squeezed against vanity drawer slides. You must map out your tool clearance carefully before committing to the final locked position of the connection nuts.

Applying lessons learned from larger sink installations helps navigate these tighter bathroom clearances more effectively. Threading the nuts onto the wall valves entirely by hand until completely snug before applying any metal tools prevents damaging the fine brass threads. This careful tactile technique proves especially valuable when working blindly reaching behind a solid bathroom cabinet partition.

Evaluating Long Term Fixture Maintenance

The permanent nature of these connections fundamentally alters how you approach future maintenance and inevitable physical wear. In a traditional plumbing setup, a damaged braided hose requires a simple inexpensive replacement trip to the local hardware store. With factory-attached lines, severe physical damage to the hose outer layer often means replacing the entire faucet unit completely.

Protecting the exposed lines from chemical exposure under the sink extends the functional lifespan of the fixture. Storing harsh bleach cleaners or acidic liquid drain openers directly next to the braided steel can cause rapid invisible corrosion on the exterior mesh. You should isolate all chemical storage away from the plumbing connections to preserve the structural integrity of the integrated lines.

Routine visual inspections help catch minor dripping issues before they escalate into major vanity water damage. Checking the outer condition of the lines every few months ensures no slow weeping has developed at the lower valve joints. This proactive visual monitoring takes only a few seconds but secures the long-term reliability of your entire bathroom sink setup.

Handling a fixture featuring permanently attached hoses requires verifying length limitations, thread compatibility, and routing clearances before tightening the main mounting hardware. Confirming your wall stops match the factory fittings and managing any excess line with wide, relaxed loops prevents flow restrictions and unnecessary mechanical stress on internal factory connections. This careful pre-installation review ensures the integrated design performs reliably over the life of the unit.
