Handheld Shower Head for a Bathtub: Connection Options

Avoiding Diverter Valve Compatibility Errors

Purchasing a slip-on rubber hose meant to stretch over an existing standard tub spout represents the most frequent and messy error in this project. These friction-fit attachments inevitably blow off under normal municipal water pressure, spraying water all over the bathroom walls and failing to deliver a usable stream. Figuring out how to add a handheld shower head to a bathtub requires a mechanical, threaded connection capable of withstanding constant hydraulic force. Relying on a temporary rubber boot simply creates a slipping hazard and a frustrating bathing experience that usually results in water damage outside the bathing enclosure.

The core challenge lies in redirecting the water flow from the main downward spout into a flexible hose. This redirection requires a functional diverter mechanism built to handle significant hydraulic backpressure. Some existing bathroom setups already feature a diverter pin directly on the tub spout, while others control the water path entirely behind the wall through a brass transfer valve. Identifying exactly where your water diversion currently takes place determines which hardware path you must take to add a new spray wand safely.

Attempting to thread a new hose directly onto a spout that lacks a dedicated outlet port will immediately halt your project. You cannot drill into a standard cast brass or zinc spout to create a new connection point, as this destroys the internal water pathways. A successful installation demands swapping existing hardware for components specifically engineered with auxiliary threaded ports designed to accept standard plumbing fittings.

Replacing the Tub Spout Directly

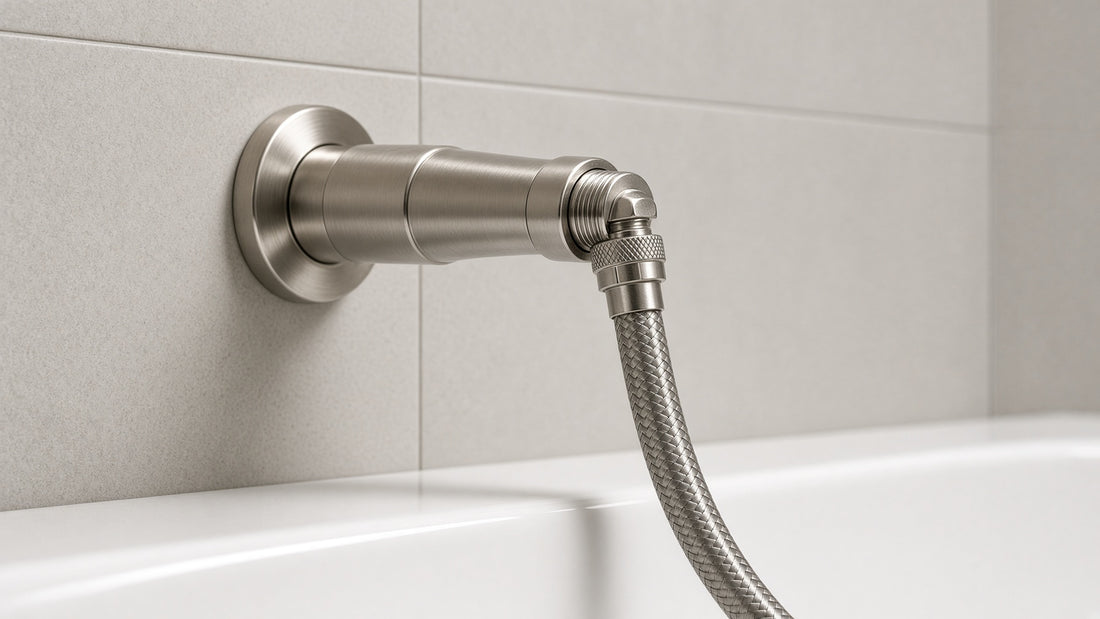

Swapping the existing water spout for a specialized diverter model offers the most direct upgrade path for a standard alcove tub. A diverter spout equipped with an integrated half-inch threaded male outlet allows you to attach a flexible metal hose right at the water source. Pulling the diverter pin up forces the water out through this secondary side or top port instead of falling directly into the basin, instantly activating the handheld wand.

Removing the old spout involves identifying how it currently attaches to the copper pipe protruding from the wall structure. A slip-fit spout secures via a small set screw hidden underneath near the wall base, requiring a standard hex wrench to loosen before sliding the spout off. A threaded spout simply twists counterclockwise off the pipe, though calcified mineral deposits often demand the use of a large strap wrench to break the initial seal without marring the wall or twisting the hidden copper pipe.

Installing a new bathtub faucet handheld shower attachment requires sealing the exposed pipe threads with fresh PTFE tape wrapped tightly in a clockwise direction. Once the new diverter spout is fully seated against the tile, the flexible hose threads directly onto the newly exposed side port. Hand-tightening this connection over the internal rubber gasket prevents crushing the seal and ensures a watertight mechanical joint that will not vibrate loose during heavy usage.

Adding a Splitter to the Shower Arm

Bathrooms featuring an existing overhead shower offer an alternative connection point located high on the wall, bypassing the lower tub spout entirely. Installing a mechanical splitter valve between the angled shower arm pipe and the fixed showerhead creates an immediate secondary water path. This small brass fitting features a side port that accepts a standard flexible hose, eliminating the need to modify the lower tub plumbing entirely and keeping the heavy hose away from the floor.

This overhead approach works exceptionally well if your primary goal involves washing pets, rinsing tall tile walls, or reaching the far corners of the tub basin. The small lever on the side of the splitter valve controls the water flow direction, allowing you to run the fixed head alone, the handheld wand alone, or both simultaneously depending on the specific internal cartridge design. Because the connection point sits high above the bather, the hose drapes naturally down into the tub space without interfering with the main faucet handles.

Working with the shower arm requires caution to avoid breaking the pipe behind the finished wall, which would necessitate immediate wall demolition to repair. Use locking pliers padded with a thick rag to hold the shower arm stationary while using an adjustable wrench to loosen the old showerhead. Wrapping the pipe threads with fresh sealant tape before threading on the new splitter prevents microscopic leaks that can cause water to drip silently behind the decorative wall escutcheon.

Installing a Deck Mounted Transfer System

Roman tubs and drop-in basins feature wide flat decks that require entirely different hardware than standard vertical wall-mounted configurations. Adding a spray wand to these large horizontal basins usually involves installing a complete bathtub faucet with handheld sprayer directly into the deck surface. This specific upgrade requires drilling an additional hole through the acrylic, cast iron, or stone rim to accommodate the new hose and the vertical wand bracket.

Deck-mounted setups conceal the entire length of the flexible hose beneath the tub surround when not in active use, maintaining a clean visual profile. The wand rests securely in a stationary vertical bracket on the deck, and pulling it upward extends the hidden hose out of the concealed cavity. A specialized brass rough-in valve installed completely below the deck manages the water diversion between the main high-flow Roman spout and the secondary wand attachment.

Integrating this complex system on an existing Roman tub presents significant physical access challenges for the installer. You must have clear physical access to the underside of the tub deck to route the new hose, connect the brass transfer valve, and tighten the heavy mounting hardware. If the tub surround lacks a removable access panel, this hardware path requires cutting through the exterior apron or approaching the hidden plumbing from the ceiling of the room directly below.

Managing Hose Length and Reach

Selecting the correct hose length prevents daily frustration and protects the threaded plumbing connections from excessive mechanical stress. A standard handheld shower head for bathtub usage typically includes a sixty-inch flexible hose right out of the box. While this baseline length suffices for basic seated bathing in a standard sixty-inch alcove tub, it frequently falls short for rinsing tall shower walls or washing a large dog at the far end of the basin.

Upgrading to a seventy-two-inch or eighty-four-inch hose provides the necessary physical reach for comprehensive cleaning tasks and corner-to-corner rinsing. However, a longer hose creates distinct storage challenges inside the enclosed bathing footprint. An excessively long metal coil resting permanently on the tub floor risks scratching the acrylic finish over time and creates a noticeable tripping hazard for anyone entering the wet environment.

Pay close attention to the specific hose material during your component selection process. Smooth synthetic hoses resist bacterial growth and wipe down easily with a sponge, but they tend to retain memory coils that make them stiff and unruly. Interlocking stainless steel hoses drape naturally and lie perfectly flat against the tile wall, but their intricate metal grooves require more rigorous manual cleaning to prevent soap scum and hard water scale buildup.

Drilling and Anchoring the Wall Bracket

A handheld wand requires a secure resting place when not actively in the user's grasp to prevent it from swinging wildly and chipping the tub basin. If you route the water from a lower tub spout, you must mount a separate holding bracket on the tile wall above. Relying on suction cup mounts provides a temporary fix, but the constant weight of a metal wand and a wet hose eventually causes these friction mounts to detach and crash heavily into the tub.

Permanent wall brackets demand drilling directly through the finished tile to anchor heavy screws into the wall structure behind it. Utilize a diamond-tipped hole saw at low speeds to penetrate hard porcelain or ceramic tiles without cracking the surrounding brittle surface. Keep the drill bit constantly lubricated with a steady stream of water to prevent thermal shock and ensure a clean, precise hole that aligns perfectly with your mounting bracket.

Driving screws through hollow drywall or cement board requires heavy-duty toggle anchors specifically rated for wet residential environments. If possible, use a stud finder to locate a solid wooden wall stud for at least one of the mounting screws to provide maximum structural rigidity against pulling forces. Apply a small dab of clear silicone caulk inside the drilled holes before inserting the plastic anchors to permanently seal the wall cavity against penetrating moisture.
