Quick answer: Usually the leak at the connector is caused by a worn or missing rubber washer; the washer provides the seal between the bracket and the hose. Only when the washer is intact but the threads are stripped, cross-threaded, or the internal tube is cracked does the hose itself need replacement.
Spotting the Connector Drip Early
You finish a warm shower, turn off the valve, and notice a persistent stream of water trickling down the metal casing where the flexible line meets the bracket. A handheld shower hose leaking at this specific junction wastes water, reduces pressure, and creates hard water stains. Pinpointing the exact location of the drip is the required first step before disassembling your plumbing fixtures. Differentiating between a loose connection and a mechanically failing component saves time during any DIY repair project. When water sprays forcefully from the base of the handle, the issue remains isolated to the connector itself. Wiping the entire assembly dry with a towel while the water runs helps you see exactly where moisture first appears. Most users instinctively try to grip the hex nut and twist it further clockwise, hoping to stop the stray spray. Overtightening is a common mistake that frequently makes the underlying problem worse. Excessive force crushes internal rubber seals, bends brass fittings, or cracks plastic threads inside the housing.
| Failure Cause | Symptoms | Recommended Action |
|---|---|---|
| Worn or missing washer | Continuous drip at connector, water on bracket | Replace rubber washer with new one |
| Stripped or cross-threaded threads | Nut won’t tighten, water leaks despite tightening | Clean threads, apply plumber’s tape if allowed, re-tighten or replace connector |
| Cracked hose nut (structural damage) | Fine spray from nut, cannot stop by tightening | Replace entire handheld shower hose assembly |
| Broken internal tube or failed factory crimp | Water leaks behind washer, hose moves independently | Replace complete Moen handheld shower hose |
Removing the Hose for Inspection
Before ordering replacement parts or calling a plumber, you must look inside the fitting to identify the culprit. Turn off the shower valve completely and place a thick towel over the tub drain to catch any small parts. Use an adjustable wrench or slip-joint pliers to loosen the connector nut attached to the wall elbow or the base of the showerhead. Wrapping a thin cloth around the metal jaws of your tool prevents deep scratches on the finish of the fixture. Hold the supply bracket steady with one hand while turning the nut gently counterclockwise. Once the nut breaks free of the tension, use your bare hands to spin it off until the flexible line detaches completely. Shake out any excess water trapped inside the tube and dry the internal threads of both the bracket and the hose connector with a paper towel. Having a clear, dry, and well-lit view of the internal components is mandatory to figure out why the fixture failed. Inspect the opening under a bright flashlight.

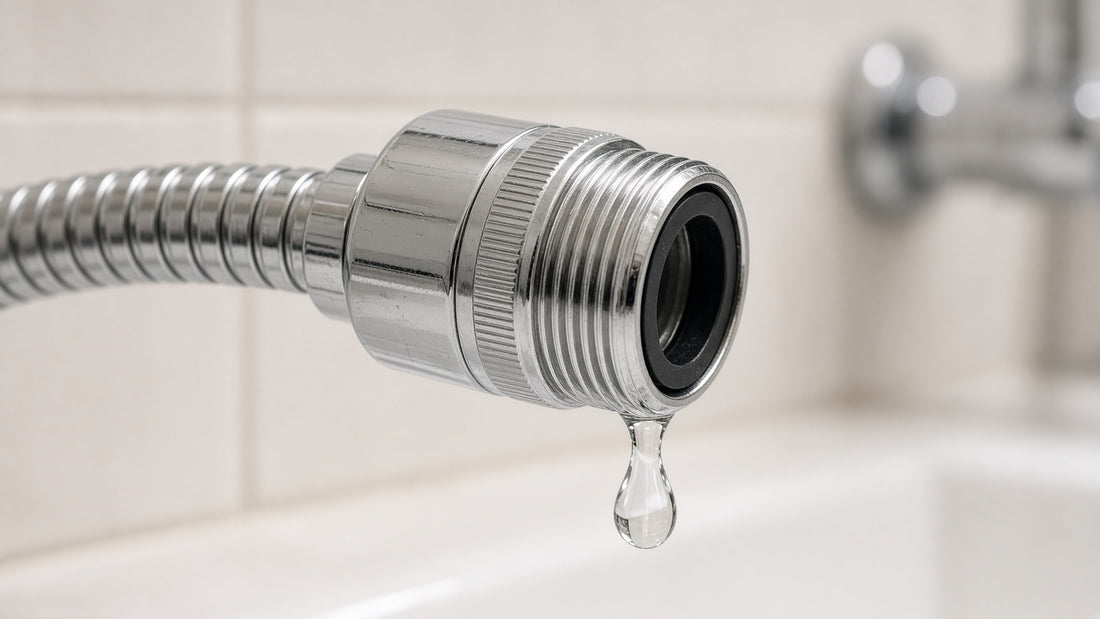

Diagnosing a Worn or Crushed Washer
Look directly into the opening of the detached hose nut where it usually meets the supply line. You should immediately see a round rubber or silicone ring sitting flat against the bottom ledge of the fitting. This small piece is solely responsible for creating a watertight seal between the solid bracket pipe and the flexible line. Pull the ring out carefully using a pair of needle-nose pliers or the tip of a small flathead screwdriver. If the rubber feels brittle, stiff, or crumbles to the touch, it has completely lost the natural elasticity required to block water under high residential pressure. You will also likely notice a deep groove permanently compressed into the surface of older seals, indicating it can no longer spring back to its original shape. A missing washer is another frequent culprit, particularly right after a fresh installation, a recent move, or a vigorous deep cleaning of the bathroom. Replacing a deteriorated, flattened, or lost rubber ring with a fresh one resolves the vast majority of leaks at this junction. Standard plumbing supply kits usually contain several sizes.
Checking the Connector Threads for Damage
If the rubber ring appears thick, pliable, and perfectly intact, the next suspected failure point is the threaded housing itself. Carefully inspect the internal threads carved into the hose nut and the external threads on the shower bracket. These ridges must interlock smoothly to pull the two components tightly together against the rubber seal. Look closely for cross-threading, which happens when the nut was screwed on at a slight angle during previous maintenance, grinding the ridges flat. Stripped threads prevent the connector from tightening down far enough to compress the rubber ring properly, allowing water to easily escape. Run your fingernail along the grooves to feel for rough spots, burrs, or flattened sections. Hairline cracks running vertically down the side of a conical hose nut can also cause a persistent handheld shower hose leaking problem. Even tiny fractures expand slightly when the water lines pressurize, creating a fine spray that no amount of tightening will fix. In these cases of structural housing damage, replacing the entire flexible line becomes necessary to prevent a larger bathroom flood.
Examining the Internal Tubing Joint
The visible threaded nut is only the outer decorative shell of the connector assembly. Inside this shell, a smaller brass or heavy-duty plastic barb attaches directly to the inner PVC or silicone tubing that carries the water. This internal, hidden connection relies on small O-rings or tight, factory-crimped metal sleeves to hold pressurized water. Gently tug on the flexible metal casing while firmly holding the connector nut to see if there is excessive play or movement. If the inner tube shifts independently of the outer shell, the factory crimp may have degraded over time. Water escaping from behind the rubber washer points directly to this type of failed internal joint. You cannot safely repair a ruptured inner tube or a failed factory crimp with household tools or waterproof tape. Upgrading to a complete, factory-sealed moen handheld shower hose ensures you receive a pressure-tested inner tube designed to withstand daily residential use without splitting. Opting for a full replacement in this scenario prevents sudden catastrophic water bursts while bathing.
Reassembling the Components Without Leaks
Once you insert a fresh rubber seal or prepare a brand new replacement line, clean the supply bracket threads with an old toothbrush to remove hard water scale. Mineral buildup acts like sandpaper, preventing the new nut from seating evenly against the supply pipe and causing tiny gaps. A quick scrub with diluted white vinegar dissolves these stubborn deposits. Apply a single wrap of plumbers tape around the supply bracket threads only if the specific manufacturer instructions suggest doing so. Many modern shower fixtures rely entirely on the rubber seal for watertightness and actually leak more if thick tape interferes with the thread depth. If you do use tape, wrap it clockwise so the nut does not unpeel it. Hand-tighten the connector nut onto the bracket, turning clockwise until you feel firm, solid resistance. Turn on the water supply fully and test the joint for drips before reaching for a wrench. Apply an extra quarter-turn with your protected pliers only if a minor weep persists under full water pressure.
Selecting the Right Replacement Parts
