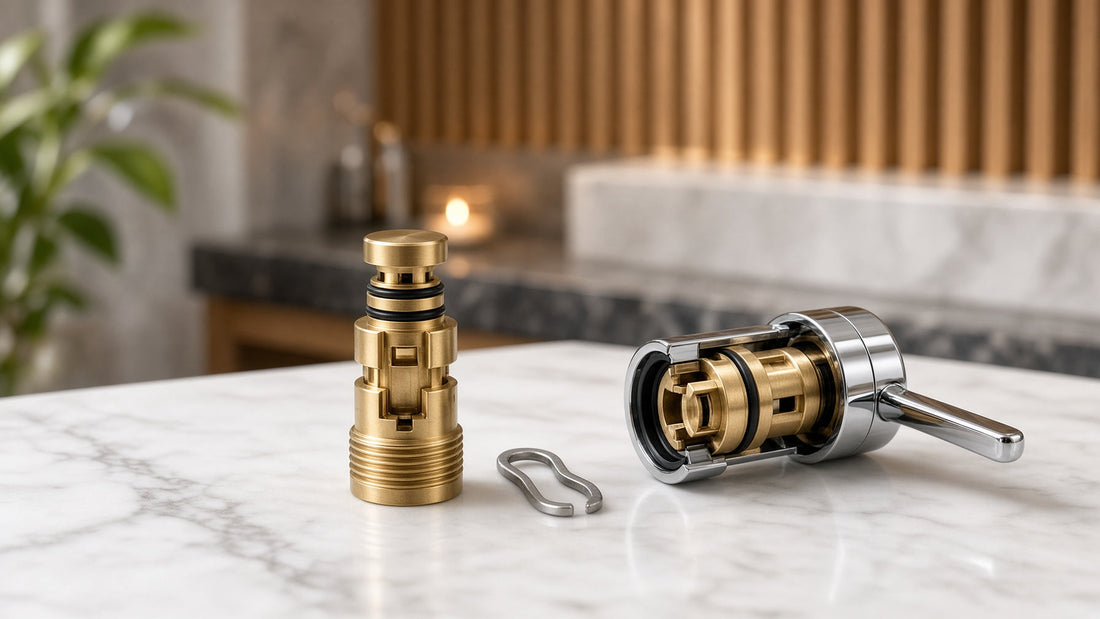

Quick answer: To replace a bathroom faucet cartridge, first shut off the water supply, then remove the handle and retainer clip, pull out the old cartridge, clean the valve body, and install the new cartridge with correct orientation before reassembling and test for leaks.
A persistent drip coming from your bathroom sink or soaking tub is not only annoying and wasteful; it can also stain your high-end ceramic and stone surfaces over time. When your hardware starts leaking, the root cause is almost always a worn-out internal valve core.
Instead of replacing the entire fixture, learning how to replace a bathroom faucet cartridge is a cost-effective, straightforward DIY repair. Whether you are dealing with a single-lever basin or a multi-handle setup, here is your complete guide to swapping out a failing valve.
1. Preparation and Water Shut-Off
Before you touch any tools, stopping the water supply is mandatory.
Turn Off the Valves: Locate the hot and cold shut-off valves hidden on the supply lines underneath your vanity sink, or turn off the main bathroom water supply if you are servicing a tub.
Drain Residual Pressure: Open the faucet handle to let any trapped water drain out completely, and plug the sink drain with a washcloth so tiny screws or retainer clips don't accidentally vanish down the pipe.
| Step | Single-Handle Procedure | Double-Handle Procedure |
|---|---|---|
| Shut off water | Turn off hot and cold shut-off valves under vanity or main supply | Turn off hot and cold shut-off valves under vanity or main supply |
| Remove handle | Pop decorative cap, loosen set screw with Allen wrench, lift lever, unscrew protective sleeve | Unscrew individual porcelain or metal lever handles to expose stems |
| Remove retainer clip | Pull U-shaped metal clip with needle-nose pliers | Pull U-shaped metal clip with needle-nose pliers |
| Extract old cartridge | Grip stem with pliers, twist to break scale, pull straight up | Grip stem with pliers, twist to break scale, pull straight up |
| Clean valve body | Clean scale buildup with vinegar and soft brush | Clean scale buildup with vinegar and soft brush |
| Install new cartridge | Align hot/cold orientation, push fully, reinstall retainer clip | Align hot/cold orientation, push fully, reinstall retainer clip |
| Reassemble & test | Reattach handle, turn water on, check for leaks | Reattach handles, turn water on, check for leaks |
2. Accessing the Core: Single vs. Double Handle
The exact removal process depends slightly on your fixture configuration:
Single-Handle Basins: Pop off the decorative hot/cold indicator cap on the handle, use an Allen wrench to loosen the hidden set screw, lift the lever off, and unscrew the protective sleeve.
Double Handle Units: If you are learning how to replace a faucet cartridge double handle bathroom, you will unscrew individual porcelain or metallic lever handles to expose each separate hot and cold stem assembly.
3. Extracting and Replacing the Valve
Once the internal cartridge is exposed, follow these steps to complete the swap:
Remove the Retainer Clip: Use a pair of needle-nose pliers to pull the U-shaped metal retaining clip straight up and out of the brass housing.
Pull Out the Old Core: Grasp the stem firmly with pliers and twist it gently back and forth to break any mineral scale adhesion, then pull it straight up.
Inspect and Clean: If you are trying how to replace a leaking bathroom faucet cartridge, look inside the valve body for scale buildup and clean it out with vinegar and a soft brush.
Install the New Cartridge: Align the new cartridge correctly (ensuring the hot/cold orientation matches) and push it fully into place before reinserting the metal retainer clip securely.
