Moen Halle Bathroom Faucets: Comparing the 84971 and 84972

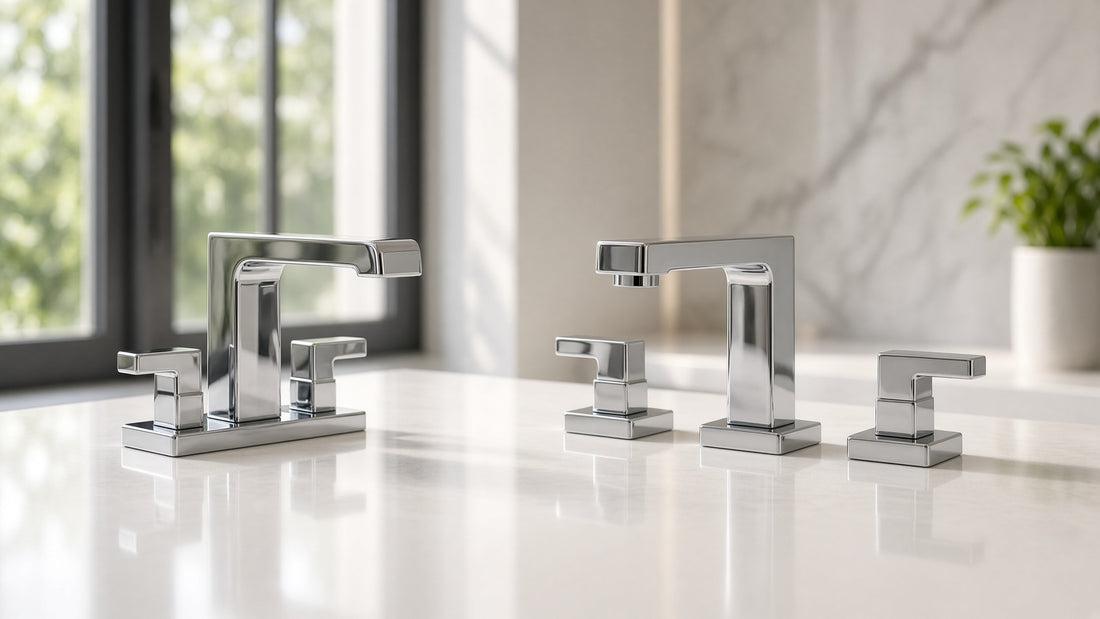

Four inches versus eight inches completely changes how you disassemble and repair the specific fixture mounted on your vanity. If the distance between the center of your hot valve and the center of your cold valve measures exactly four inches, you own the 84971 configuration, which relies on a single continuous casting. Expanding that footprint to eight inches or more means you are dealing with the 84972, a three-piece system utilizing isolated components. A moen halle bathroom faucet catches the eye with its strict geometric angles, but beneath the countertop, these two numeric identifiers dictate entirely different plumbing pathways. Grab a tape measure before you order any replacement cartridges or attempt to wrench off a leaking spout.

Your approach to stopping a steady drip or fixing a wobbly handle relies heavily on knowing how the water travels from the wall stops to the sink deck. The compact design squeezes every mechanical part into one tight area, forcing you to handle the entire assembly during a basic repair. The expanded layout separates the workload, giving you the ability to isolate problems to a single independent module without disturbing the rest of the installation.

Distinguishing the Core Water Pathways

The 84971 unit features a unified brass body hidden just beneath the rectangular metal deck plate. Cold and hot water lines feed directly into this central block, where internal channels direct the flow through the control cartridges and immediately up into the spout. You must treat this entire structure as a single mechanical entity, meaning a severe crack in the central manifold requires a total replacement of the fixture.

Moving to the 84972 layout introduces a decentralized approach to water delivery. The hot and cold valves sit inside their own dedicated brass cylinders, mounted far apart from the main central spout. Water passes through these outer valves and travels through flexible under-sink hoses to reach the middle delivery tube. This physical separation prevents a localized cartridge leak from structurally compromising the central spout mount.

Repairing the widespread setup often proves less frustrating because the components are spread out, offering more room for wrenches and pliers. Working on the compact four-inch model demands careful tool navigation to avoid scratching the tight cluster of square handles and the closely positioned central spout.

Tracking Down Internal Cartridge Leaks

Finding the exact source of a constant drip requires distinct diagnostic steps based on your measured layout. On the decentralized three-piece system, you can easily isolate a failing cartridge by feeling the temperature of the dripping water after the fixture sits unused for a few hours. A warm drop points directly to the left valve, while a chilled drop tells you to focus your tools on the right side. Turn off the corresponding wall stop and remove that specific handle to swap the faulty ceramic disc mechanism.

The unified four-inch block makes temperature isolation slightly more difficult due to the shared internal chamber. Heat easily transfers across the solid brass casting, sometimes masking which side actually lost its watertight seal. To find the faulty side on this model, shut off the hot water supply valve under the sink and wait ten minutes. If the dripping stops entirely, the hot cartridge has failed, but if the water continues to fall, the cold cartridge needs replacement.

Extracting the cartridges from either model requires removing the top metal handle and unscrewing a retaining nut. The square design of the Halle series means you must align the replacement cartridge stems precisely before pressing the metal levers back down, otherwise the sharp geometric lines will look obviously crooked.

Handling Under Sink Hose Disconnects

The 84972 widespread configuration introduces potential leak points that simply do not exist on the compact version. Flexible crossover hoses connect the isolated outer valves to the central spout, utilizing push-button locking clips to secure the pressurized water lines. Heavy storage items shoved under the vanity can easily bump these hanging hoses, putting lateral stress on the plastic clips and causing a slow, persistent drip at the connection joint.

Addressing a leak at these junction points requires you to crawl under the sink and inspect the specific plastic snap-fit housings. Push the plastic connector firmly upward against the brass nipple while pressing the release button, then pull down to disconnect the line. Wipe the brass nipple clean with a rag and push the hose back into place until you hear a sharp, definitive click. This simple reseating process often realigns the internal rubber seal and stops the water from escaping.

If reseating fails to stop the moisture, the internal rubber ring inside the plastic connector has likely torn or degraded. You cannot replace just the tiny seal inside these proprietary fittings; the entire crossover hose assembly must be swapped out for a new one to guarantee a safe, watertight environment under your sink.

Clearing the Hidden Spout Restrictor

Both configurations suffer from restricted water flow when sediment from the municipal supply line clogs the aerator screen. The Halle aesthetic relies on a completely flat, flush spout tip, meaning the flow restrictor sits entirely recessed inside the square metal housing. Standard pliers are useless here and will only permanently damage the visible exterior finish if you attempt to force them into the opening.

You must locate the specific plastic removal tool included with the original packaging to service this hidden component. Push the grooved end of the tool directly upward into the spout cavity until it grabs the plastic teeth of the aerator housing. Rotate the tool counterclockwise to unthread the cylinder and drop the clogged screen securely into your hand.

Soak the blocked component in a small container of white vinegar to break down the hardened mineral scale blocking the tiny mesh grid. Scrub the softened debris away with a small brush and rinse the screen thoroughly before threading it back into the spout housing. Maintaining this specific part restores the heavy water volume you expect during daily hand washing routines.

Rectifying Loose Geometric Handles

Square handles demand perfect alignment, as even a one-degree shift makes the entire fixture look broken or poorly installed. On the 84971, the handles sit incredibly close to the central spout, making any rotational drift immediately obvious to anyone entering the room. Repetitive turning motions slowly vibrate the hidden setscrews loose, allowing the metal outer cap to wiggle independently from the internal valve stem.

Fixing this looseness requires finding the tiny access hole located on the back or side of the handle skirt. Insert a thin hex wrench into the cavity and tighten the internal screw until the metal cap grabs firmly onto the cartridge stem. Do not apply excessive force, as stripping the tiny metal threads will trap the handle permanently on the fixture and force a destructive removal process.

The 84972 models face similar alignment issues, but the wider spacing makes adjustments slightly less cramped. If tightening the setscrew does not fix a crooked handle, you may need to lift the metal cap off entirely and rotate it one notch over on the grooved plastic spline of the internal cartridge. Getting the handles to sit perfectly parallel to the sink edge restores the sharp architectural aesthetic of the original setup.

Securing the Base Against Countertop Moisture

Water pooling around the base of your handles points to a failure in the static mounting seals protecting the sink deck holes. The 84971 relies on a single wide deck plate and a continuous foam gasket to block splashing water from seeping into the wooden vanity below. If this central gasket degrades, water will constantly drip down the main threaded mounting shanks every time you wash your hands.

To stop exterior water from bypassing the deck plate, unbolt the entire unit from under the sink and lift it slightly. Clean away the old gasket material and roll a thick bead of standard plumber's putty around the entire perimeter of the metal base. Bolting the fixture back down compresses the putty, creating a custom, watertight barrier across all three center holes.

The 84972 utilizes independent rubber gaskets under each of the three separate metal escutcheons. A leak around one of the outer handles requires you to loosen only that specific valve bracket from underneath and replace the localized rubber ring. This modular design prevents you from having to disturb the central spout mounting hardware just to fix a base leak around a hot water handle.

Repairing a Moen Halle bathroom fixture effectively requires acknowledging how the physical footprint changes the underlying mechanical framework. The four-inch 84971 limits your working space and relies on a unified manifold to mix temperatures, while the 84972 spreads the components out using flexible crossover connections. Taking the time to measure your hole spacing and trace the specific water routes guarantees you can fix drips, realign square handles, and clear hidden aerators without causing further damage to the plumbing.
