Quick answer: The shower arm flange must be large enough to completely cover the wall opening while sliding over a standard half-inch pipe. Typical round or square escutcheons range from 2½ to 3 inches in outer diameter, and an oversized or deep-profile plate is required when the cutout exceeds those dimensions.

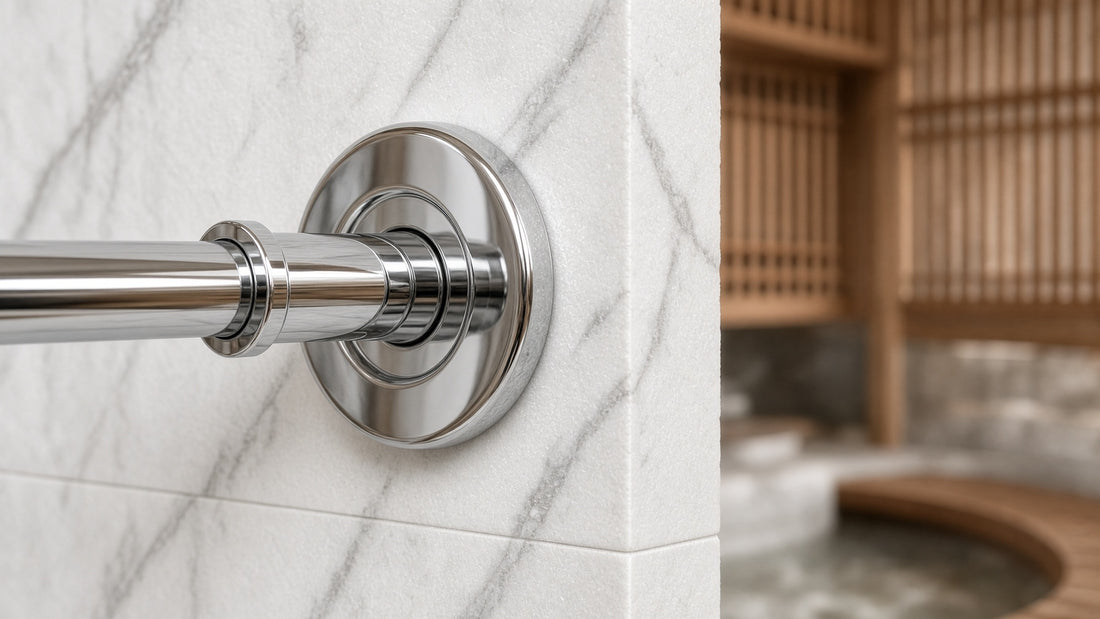

Pull an old shower arm out of the wall and you often find a rough hole in the tile that is wider than you expected. The small round collar that slides over the arm and sits flat against the tile is what hides it. Shower arm flange size matters for two reasons: the opening has to be fully covered to look finished, and the wall behind it has to stay protected from moisture.
Understanding shower arm flange size options ensures your escutcheon plate fits snugly, conceals rough wall cuts completely, and prevents water from seeping behind your finished enclosure. Whether you are replacing an old tarnished trim piece or planning a complete shower overhaul from scratch, evaluating your flange dimensions guarantees a professional-grade finish.
Standard Flange Dimensions and Hole Diameters
Shower arm flanges are made to slide over a standard half-inch shower arm, so the center hole is rarely the problem. What varies is the outside diameter, and that is the number that has to cover the opening in your wall. Measure the widest point of the hole before you look at flange sizes.
The standard diameter for a shower arm pipe is universally established as one-half inch nominal sizing. Consequently, the inner opening of a standard shower arm flange is manufactured to slide snugly over this half-inch pipe dimension, resting securely against the wall surface.
Outer flange diameters and profiles vary widely based on your chosen design aesthetic. Standard round or square escutcheon plates typically range from two and one-half inches to three inches across, providing ample surface coverage to hide the rough-cut hole in your ceramic tile, stone, or fiberglass enclosure.
| Wall Opening Diameter | Typical Flange OD | Recommended Flange |
|---|---|---|
| Up to 2½ inches | 2½-3 inches | Standard round or square escutcheon |
| Larger than 3 inches | Oversized or deep-profile | Covers full cutout without tile replacement |
Evaluating Wall Openings and Coverage Needs
A common challenge during bathroom remodeling is encountering an oversized wall cutout left behind by previous plumbing rough-ins. When a hole cut into tile or drywall exceeds standard tolerances, standard trim plates may leave unsightly gaps.
If your wall opening is unusually wide, selecting an oversized flange or a deep-profile escutcheon plate provides the necessary coverage without requiring costly tile replacement or patching. Always measure the exact diameter of the existing wall cavity before purchasing replacement trim to ensure the flange plate fully spans the opening.
Material Selection and Finish Coordination
The shower flange acts as the visual transition between your tiled wall and your shower arm. Matching your trim components creates a cohesive, high-end appearance.
Flanges are commonly sold in polished chrome, brushed nickel, matte black and brushed gold, so you can match the escutcheon to your shower head and valve trim. Pay as much attention to the material as the color. Solid brass or another corrosion-resistant metal holds up to constant humidity without tarnishing, which a thinly plated part may not.
When Is Flange Replacement Necessary?
Hardware trim pieces endure daily humidity, cleaning chemicals, and occasional physical contact. Knowing when to swap out old hardware prevents moisture intrusion and cosmetic degradation.
Routine flange replacement is strongly recommended whenever you upgrade your shower head or notice rust stains, mineral buildup, or loose fitting along the wall. If an old metal flange has lost its spring tension or no longer sits flush against the tile surface, water can easily migrate behind the wall board.
Step-by-Step Installation Best Practices
Changing a flange means unscrewing the shower arm from the fitting inside the wall, sliding the old plate off, and sliding the new one on. None of it is hard, but go slowly. The arm threads into an elbow you cannot see, and forcing it can loosen that fitting behind the tile.
Keep the shower valve closed the entire time the arm is out of the wall, since an opened handle would send water straight into the wall cavity. Cover the tub or shower floor below the arm before you put a wrench on it, and wrap the arm's finish with a rag where the wrench grips.
Unscrew the existing shower head from the shower arm by hand, turning it counter-clockwise. Once the shower head is removed, slide the old shower flange off along the length of the shower arm.
Unscrew the shower arm itself if you need to replace the entire assembly, wrapping fresh Teflon tape around the male threads before reinstalling it securely into the wall drop-ear elbow.
Slide your new shower flange over the shower arm, pushing it gently until it rests flat against the finished wall tile. Applying a thin, neat bead of mildew-resistant clear silicone adhesive around the back inner rim of the flange before pushing it against the wall creates a reliable moisture barrier that protects your drywall or cement backer board.
Reattach your shower head using fresh Teflon tape, tighten it snugly, and wipe away any excess silicone sealant to complete your clean, professional installation.
