Quick answer: Yes, a shower head that leaks at the threaded connection is usually caused by a worn rubber washer, damaged male threads, or insufficient PTFE thread seal tape-not a broken fixture. First, dry the joint and check whether water appears at the nut; then replace the washer or re-apply three to four wraps of tape and retighten a quarter-turn.
In most cases a shower head leaking at the connection to the arm is a washer or thread-tape problem, not a failed fixture. The qualifier is that you need to confirm which one before fixing it. Left alone, water squirting or dripping from that joint wastes water, adds to the utility bill, leaves mineral crust on the fitting, and can track down the wall surface.
Three things cause this leak: a compressed or missing rubber gasket inside the head, damaged male threads on the arm, or too little thread seal tape. The same logic applies to a new head that drips right after installation and to a handheld leaking at the hose swivel nut. We cover the connection's anatomy, pinpointing the leak, the washer, the tape, reassembly and testing, then prevention.
Anatomy of a Shower Head Connection
A standard shower head connection seals in two ways. A rubber washer inside the head's inlet presses against the end of the arm, and thread seal tape on the arm's male threads closes off the path water would otherwise follow along the threads. Keep both in mind before unscrewing anything, because the fix depends on which one has failed.

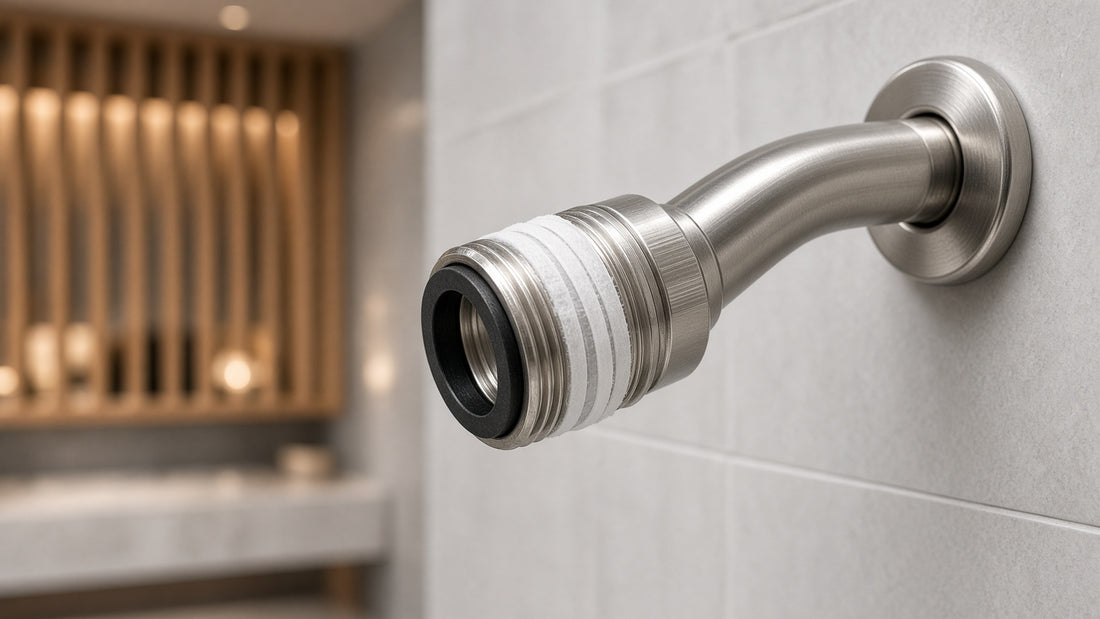

The interface between a shower arm and a shower head relies on a mechanical compression union. The curved upper shower arm terminates in a male-threaded half-inch pipe nipple. The shower head features a swivel ball joint or a female-threaded swivel nut that screws directly onto these male threads.
Inside this female swivel nut sits a small, flexible rubber or silicone washer. When you tighten the connection, this washer compresses firmly against the smooth rim of the male shower arm pipe, blocking water from escaping outward while internal pressure routes the stream directly through the shower face.
| Symptom | Likely Cause | Recommended Fix |
|---|---|---|
| Water droplets at threaded nut | Flattened or missing rubber washer | Replace washer with new rubber or silicone gasket |
| Water seeps through threads despite good washer | Insufficient or old PTFE tape | Remove old tape and apply three to four wraps clockwise |
| Leak persists after washer and tape fix | Over-tightened connection distorting gasket | Loosen a quarter-turn, then retighten gently |
Initial Diagnostic Checklist: Pinpointing the Leak Source
Determining the exact point of origin for your fixture leak dictates the correct repair procedure.
Begin by wiping the entire shower arm, swivel nut, and shower head assembly completely dry with a clean microfiber towel. Wrap dry paper towels snugly around the threaded nut joint.
Turn on the water supply and observe closely. If water droplets immediately form right at the threaded nut where the shower head meets the arm, your issue is localized to the internal gasket or thread seal. If water sprays from the adjustment swivel ball or leaks out of the spray face nozzles themselves, the problem lies within internal valve components or mineral buildup inside the shower head rather than the connection threads.
Inspecting and Replacing the Internal Rubber Washer
The single most common cause of a leaking shower connection is a degraded, flattened, or missing internal rubber washer.
Always turn off your main water supply or ensure the shower handle is firmly in the closed position before unthreading any plumbing components. Wrap the jaws of your adjustable wrench in soft cloth or tape to protect the polished metallic finish, and turn the shower head swivel nut counterclockwise to unscrew it from the arm.
Look inside the female swivel nut using a flashlight. If the rubber washer looks cracked, hard, flat, or is missing entirely, it can no longer form a tight compression seal against the pipe edge. Pop the old washer out using a small flathead screwdriver, insert a fresh rubber or silicone gasket of matching dimensions, and hand-tighten the shower head back onto the arm.
Applying Proper Plumber's Tape to Male Threads
If your internal washer is in good condition but water still weeps through the threads, applying or replacing PTFE thread seal tape is essential.
Strip away all old, shredded thread seal tape from the male threads of the shower arm using a soft brush or fingernail, cleaning the metal until bare threads are exposed.
Strip every scrap of old tape off the shower arm threads first, then lay on three to four wraps of new PTFE tape, going clockwise as you face the end of the arm. Pull each wrap snug so it settles into the grooves. Tape wound the other way bunches and peels back as the shower head spins on, and the connection will drip again.
Reassembling and Testing the Fixture
Reattaching your shower head correctly ensures a secure, leak-free seal without damaging delicate metallic finishes.
Thread the shower head clockwise onto the taped shower arm by hand until it feels snug and the internal rubber washer compresses against the pipe rim. Use your protected wrench to tighten the connection an additional quarter to half turn, taking care never to over-tighten, which can distort the rubber gasket or crack the internal swivel nut.
Turn on the water supply, let it run through the fixture for a full minute, and leave dry paper towels in place beneath the joint for twenty-four hours to verify the leak is completely resolved.
Step-by-Step Prevention and Maintenance Best Practices
Maintaining your shower hardware prevents unexpected leaks and protects your bathroom investment over the long term.
Wipe down your shower head and connection joints regularly during routine cleanings using a soft cloth and mild soap to prevent harsh chemical buildup from degrading exterior finishes. Avoid hanging heavy caddies, washcloths, or loofahs directly from the shower head or connection arm, as excess mechanical weight can stress the threads and cause premature joint failure.
