Quick answer: A shower-only trim kit is used when the rough-in valve feeds only a shower head, while a tub-and-shower kit is required when the valve also supplies a bathtub spout with a diverter. Matching the valve’s outlet ports to the correct kit prevents water-flow problems and costly re-installation.
Look at what the valve in your wall feeds before you order anything, because that settles the shower only trim vs tub shower trim question for you. A valve that supplies a shower head alone takes a shower-only kit; one that also feeds a tub spout takes the tub-and-shower kit. The trim is the visible hardware, but it has to send water where the plumbing behind it goes, and ordering the wrong kit is a costly, avoidable mistake.
This guide starts with how a trim kit relates to the rough-in valve behind the wall, then takes shower-only and tub-and-shower configurations one at a time. After that it compares diverters and flow control and finishes with planning and installation practices. If you are looking at a kit such as the Moen Align pressure balanced tub and shower trim, the tub-and-shower section is the one to read closely.
Anatomy of Bathroom Trim Kits and Rough-In Compatibility
Before ordering exterior handles, escutcheon plates, and spouts, it helps to understand what constitutes a complete trim kit and how it interacts with the hidden rough-in valve behind your wall.
A trim kit represents the visible, touchable components of your plumbing system—including the control handle, decorative escutcheon plate, sleeve adapter, and your choice of shower head or bathtub spout. However, exterior trim is entirely dependent on the specific rough-in valve body installed inside the wall framing.
While a standard pressure-balancing rough-in valve can technically accommodate both configurations, the exterior trim components differ fundamentally based on whether your enclosure features a bathtub or a dedicated standing shower stall.
| Feature | Shower-Only | Tub-and-Shower |
|---|---|---|
| Port Configuration | Single upper outlet only | Upper outlet plus lower tub spout outlet |
| Diverter | None required | Integrated diverter on tub spout (pull-up knob, lift rod, or gate) |
| Typical Components | Single-handle lever, escutcheon, shower arm, shower head | Single-handle lever, escutcheon, tub spout with diverter, shower arm, shower head |
| Installation Focus | Connect handle directly to mixing valve for upward flow | Ensure diverter blocks lower port when showering and aligns with rough-in valve ports |
Understanding Shower-Only Trim Configurations
A shower-only trim kit is engineered specifically for enclosures that feature a standing shower stall, walk-in tile shower, or custom curbless wet room without a bathtub base.
The primary characteristic of a shower-only kit is the absence of a lower tub spout port and a diverter mechanism. Because water only needs to route to one primary destination—the overhead shower head or a handheld shower wand—the control handle simply manages on-off activation and temperature mixing.
These kits typically include a sleek single-handle lever, an escutcheon backplate, a shower arm, and a matching shower head. They provide a clean, minimalist aesthetic and streamline installation by eliminating unnecessary lower plumbing branches.
Understanding Tub-and-Shower Trim Configurations
A tub-and-shower trim kit is designed for traditional alcove combination units where a single bathing enclosure serves both as a shower space and a bathtub.

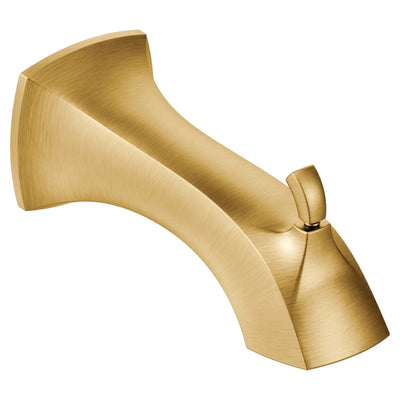

The defining feature of a tub-and-shower configuration is the inclusion of a bathtub spout equipped with an integrated diverter mechanism, such as a pull-up knob, lift rod, or diverter gate. When you fill the tub, water flows directly out of the low-mounted spout. When you pull or lift the diverter, it blocks the lower spout opening and redirects water pressure upward through the pipe to the shower head.
Because of this dual-purpose requirement, selecting a cohesive collection—such as a coordinated moen align pressure balanced tub and shower trim only package—ensures that your handle, escutcheon, tub spout, and shower head share a unified designer finish and architectural style.
Comparing Diverter Mechanics and Flow Control
Understanding how water routing differs between these two setups helps clarify why mixing kit components incorrectly will cause operational failure.
In a dedicated shower-only setup, water flows continuously upward from the mixing valve straight to the shower head whenever the handle is open.
In a tub-and-shower combination, the rough-in valve includes a lower outlet port connected to the tub spout. If you install a shower-only trim handle onto a rough-in valve connected to a tub spout without a functioning diverter, water will attempt to exit both paths simultaneously or fail to reach the overhead shower head with adequate pressure. Always verify that your exterior trim kit matches your rough-in port configuration before starting installation.
Step-by-Step Planning and Installation Best Practices
Selecting and installing the correct trim kit requires careful coordination between your rough-in plumbing and your final finish choices. Follow these practical guidelines:
Map out your exact bathroom layout and fixture requirements during the framing stage, ensuring your rough-in valve body includes the correct number of outlet ports for your planned tub or shower design.
Complete all wall finishing work, including backer board, waterproofing membranes, thin-set mortar, and tile grouting, before opening your trim kit boxes.
Slide the protective plaster guard off the valve stem, clean away any residual mortar or tile adhesive from around the rough-in opening, and position the rubber gasket and escutcheon plate firmly against the finished wall.
Attach the handle assembly, secure any set screws using a hex wrench, and test the system thoroughly through its full range of temperature mixing and water routing motion.
