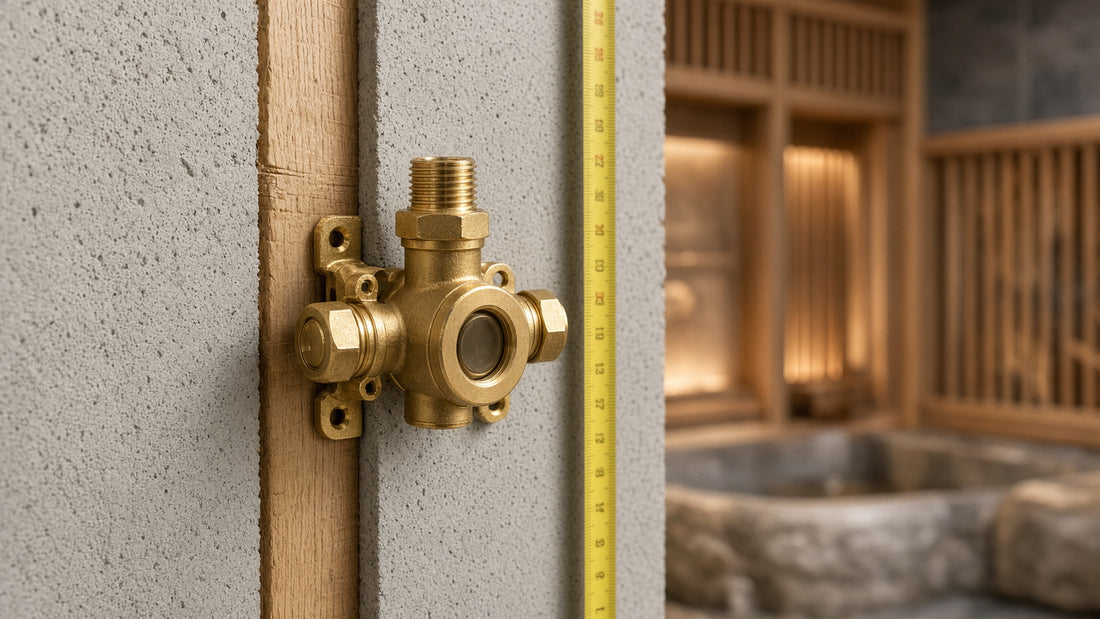

Shower Valve Height: Where to Position the Control Before Tiling

About 48 inches above the finished floor is a typical shower valve height for a stand-up shower, with tub-shower combinations usually set lower. Treat that as a starting point, then check the rough-in instructions for your valve and who will be using the shower. The decision is made at the framing stage, behind the backer board, and a control placed wrong means poor reach every day or tearing out finished tile.

Mastering shower valve height specifications ensures your temperature and volume controls are positioned ergonomically for every member of your household. Whether you are building a walk-in shower enclosure or planning a combined tub-shower unit, understanding standard height measurements and rough-in placement rules guarantees a professional, comfortable result.

Standard Shower Valve Height and Ergonomic Reach

When planning your plumbing rough-in layout, understanding standard residential dimensions helps you establish a comfortable operating position. In North American residential construction, building codes and ergonomic guidelines establish clear conventions for fixture placement.

The standard height for a shower mixing valve typically ranges from forty-five to forty-eight inches measured vertically from the finished floor line up to the center of the valve body. This height places the control handle at a natural waist or chest level for an average adult standing under the water stream, allowing easy adjustment without bending down or reaching uncomfortably high.

When evaluating faucet height vs spout height in a standalone shower stall versus a tub combination, positioning is everything. In a dedicated shower enclosure without a bathtub, the mixing valve sits firmly within that forty-five to forty-eight-inch window, while the overhead shower arm is installed much higher, typically around eighty inches from the floor.

Positioning the Valve in a Tub-Shower Combination

A combined bathtub and shower enclosure introduces unique spatial requirements because the primary water control must serve dual functions while accommodating the lower tub spout.

When installing a rough-in valve in a tub-shower combo, the shower valve handle height is typically maintained at approximately twenty-eight to thirty-two inches above the finished rim of the bathtub. This specific placement ensures the control valve sits safely above the bathtub spout while remaining within comfortable reach for someone sitting in the tub or standing during a shower.

Always measure carefully from the actual finished rim of your installed bathtub rather than the subfloor, accounting for the thickness of your tub material, mortar bed, and floor tile. Miscalculating this spacing can lead to a cramped installation where the trim plate of your mixing valve collides directly with the top of the tub spout escutcheon.

Accounting for Finished Floor and Tile Thickness

One of the most common and costly mistakes made during rough-in plumbing is failing to account for the buildup of finish materials that will be added to the raw framing studs and subfloor.

Raw framing studs, cement backer boards, waterproofing membranes, thinset mortar, and heavy ceramic or stone tiles add significant thickness to your walls. A rough-in valve that looks perfectly deep or flush against bare plywood will sit deeply recessed once finished tile is installed.

Always check the manufacturer specifications for your specific rough-in valve body to determine its minimum and maximum finished wall clearance limits. Most modern pressure-balancing and thermostatic valves include a protective plaster guard or alignment guide that indicates exactly where the finished tile surface should land relative to the valve housing.

Step-by-Step Rough-In Planning and Best Practices

Securing your rough-in valve correctly before tiling requires a methodical approach and careful measurement verification. Follow these guidelines during your preparation phase:

First, consult local residential plumbing codes and review the manufacturer technical specification sheets for your exact rough-in valve model to verify recommended height ranges and depth tolerances.

Next, mark your finished floor height and finished wall line directly on the wood or metal framing studs, factoring in the exact thickness of your planned underlayment, tile mortar, and surface tile.

Secure the valve body firmly to structural blocking between the framing studs, ensuring the supply lines from your hot and cold water sources are level, properly supported, and pressure-tested for leaks before any backing board is installed.

Double-check your vertical centerlines and handle clearances relative to adjacent walls, glass shower doors, and tub spouts before closing up the wall cavity and beginning your tile installation.
