Tub Spout Not Flush With the Wall: Causes and Fixes

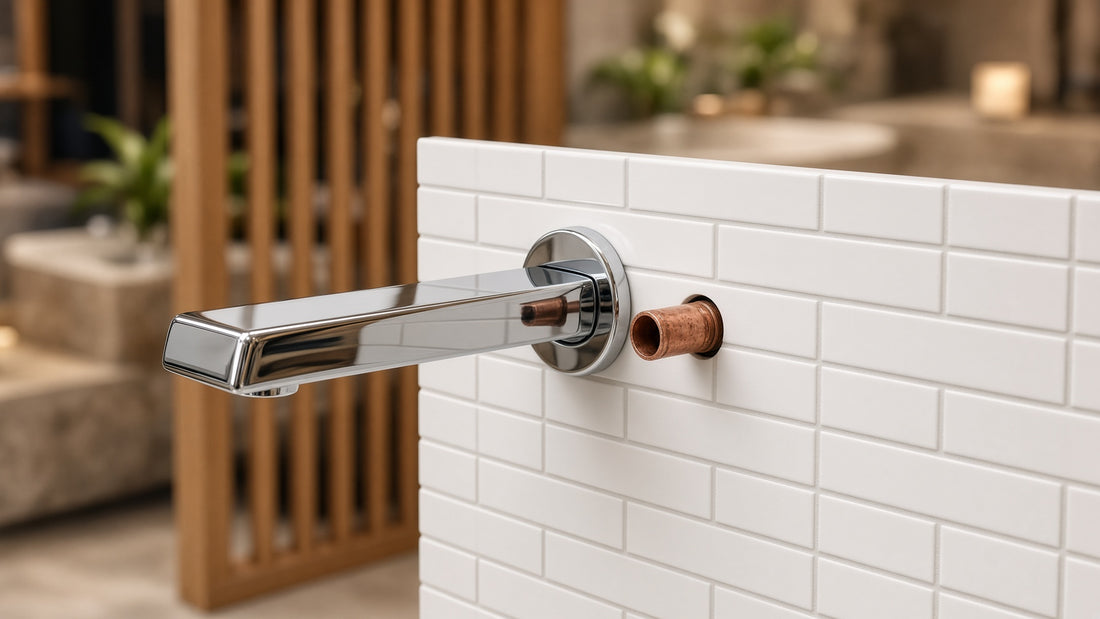

Grout is dry, the new tub spout goes on, and it stops a half inch or an inch short of the wall. A tub spout not flush with the wall looks unfinished, and the gap matters for more than appearance, since it leaves the rough pipe opening exposed to moisture. It is a frustrating thing to find at the end of a remodel, but the cause is mechanical and can be tracked down.

The gap comes from one of three things: a copper nipple cut to the wrong length, a slip-on adapter that binds, or a threaded connection that bottoms out early. The sections below identify your mounting style, measure the gap, fix threaded and slip-on spouts in turn, and then seal the spout so water cannot get behind it.

Anatomy of Tub Spout Mounting Types

Tub spouts attach to the supply pipe in a few different ways, and the fix for a gap depends on which one you have. So before reaching for a pipe wrench, copper cutter or hex key, sort out the mounting types. It keeps the work on a finished wall to a minimum.

In residential plumbing, manufacturers typically design tub spouts to attach using one of three primary methods: rear-threaded iron pipe size connections, front-threaded copper pipe nipples, or slip-on connections secured with a hidden set screw over a copper stub-out pipe.

In every single one of these configurations, the rear face of the tub spout is engineered to press firmly and squarely against the finished tile or waterproof backer board. When a gap appears, it indicates a physical discrepancy between the length of the rough-in pipe protruding from the wall and the internal stop depth inside the spout housing.

Diagnostic Step One: Identifying the Mounting Style and Measuring the Gap

The first step in resolving an offset or gapped spout is determining your exact mounting configuration and measuring the physical distance of the gap.

Turn off your main water supply if you plan to remove the spout, and use a precision tape measure or depth gauge to find the exact width of the gap between the rear rim of the spout and the tile surface. Next, loosen any set screws or unthread the spout to inspect how the internal mechanism connects to the wall pipe.

If you are dealing with a threaded spout, check whether the pipe inside the wall is bottoming out against the interior back wall of the spout before the exterior housing makes contact with the tile.

Fixing Front-Threaded and Rear-Threaded Spout Gaps

When working with threaded pipe connections, incorrect nipple length is the most frequent cause of a gap behind the spout.

If the threaded nipple protruding from the wall is too long, it stops the spout from screwing inward all the way, leaving an unsightly gap. Conversely, if the nipple is too short, the spout body will tighten against the wall before achieving a watertight seal on the threads.

To fix an overly long nipple, you must unscrew the brass pipe and cut a short section off using a tubing cutter, or replace it with a slightly shorter pre-cut brass nipple. Always wrap male threads with professional PTFE plumber's tape before rethreading to ensure a completely leak-free seal.

Adjusting Slip-On Tub Spout Connections

Slip-on tub spouts connect directly to a smooth copper stub-out pipe and lock into place using an Allen screw tightened against the pipe exterior.

If your slip-on tub spout is not resting flush against the wall, the problem is usually caused by the stub-out pipe being cut either too long or too short during the initial rough-in stage. If the copper pipe is cut too long, it prevents the rear of the spout from sliding all the way back to the tile.

To correct this, loosen the set screw, slide the spout off, and use a miniature copper tubing cutter to trim a precise fraction of an inch off the end of the copper pipe, ensuring you leave a clean, deburred edge for the O-ring seals to grip safely.

Preventing Water Leaks Behind Unsealed Spouts

Leaving a gap between your tub spout and the wall is not just an aesthetic issue; it can lead to hidden structural water damage over time.

Whenever water flows through a tub spout, back-pressure can cause a small amount of water to track backward along the pipe nipple or stub-out. If the spout is not pressed flush and sealed against the wall, that water can seep directly into the wall cavity behind the tile, rotting wooden studs and drywall.

Always apply a thin, clean bead of waterproof silicone caulk around the top and side perimeters where the rear edge of the tub spout meets the tile, leaving the bottom edge open so any minor condensation can weep out safely.

Step-by-Step Resolution and Testing Procedures

Executing a systematic adjustment plan ensures your fixture mounts securely and looks professional. Follow these practical steps:

Measure your gap and identify whether your spout utilizes a threaded connection or a smooth slip-on stub-out pipe.

Adjust the pipe nipple length or trim the copper stub-out carefully to match the internal depth requirements of your chosen luxury tub spout.

Test-fit the spout without sealant first, ensuring it slides back smoothly to rest flush against the finished tile surface without binding.

When the spout finally sits tight to the wall, run a thin bead of silicone around the top and sides where it meets the tile; many installers leave a small gap at the bottom so trapped water can escape. Run the tub for a few minutes, then check under the spout and at the wall joint again the next day.
