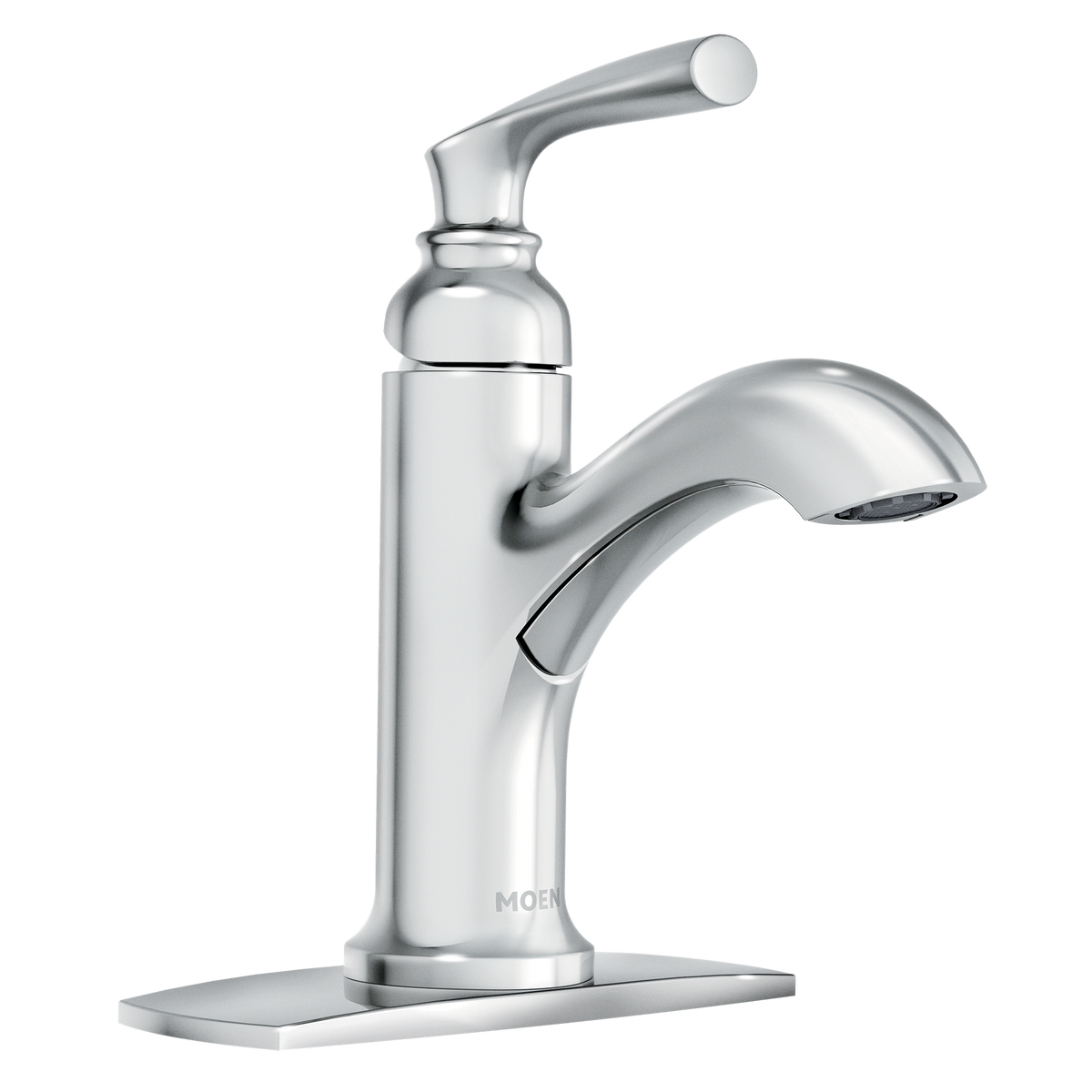

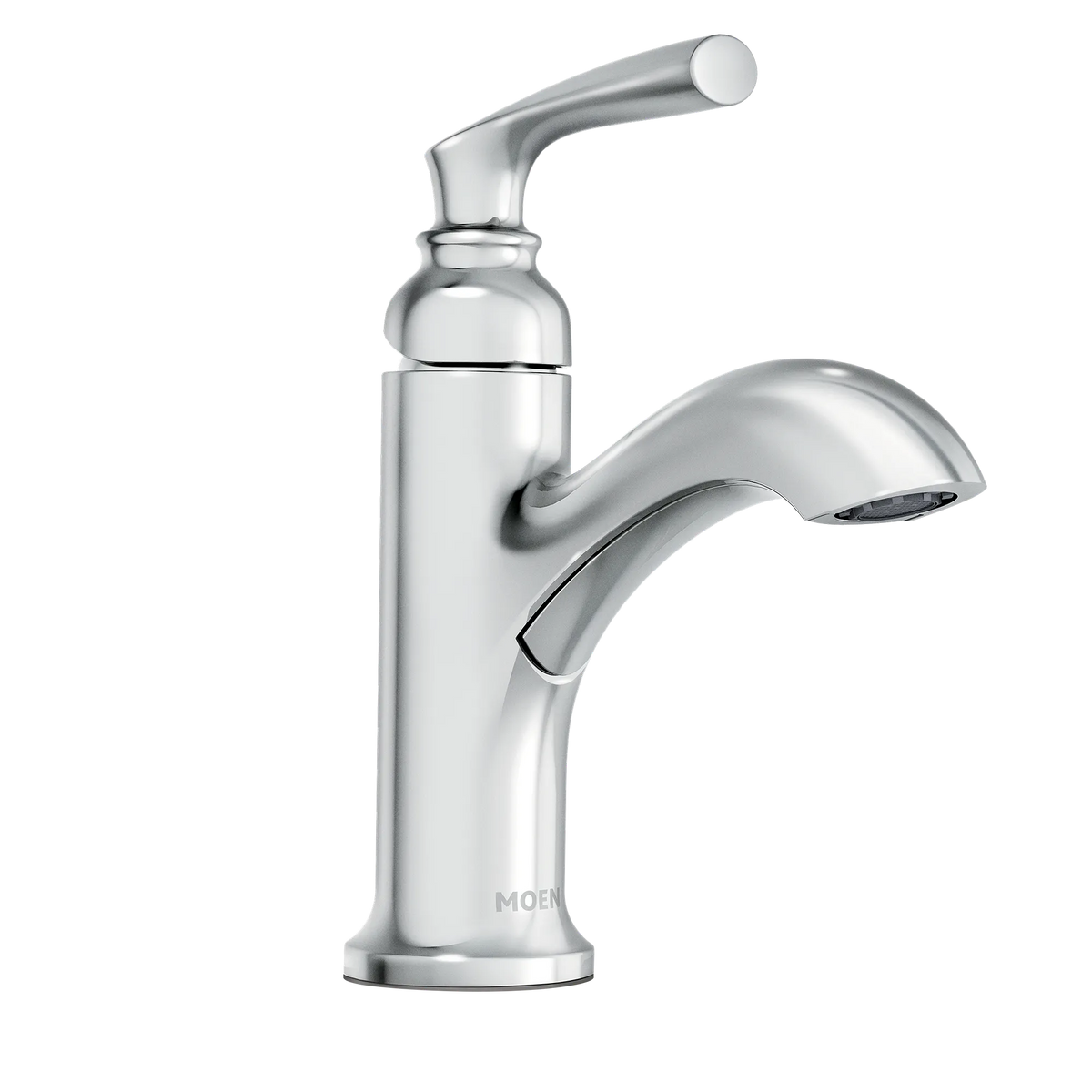

Moen 84535 Hilliard Chrome One-Handle High Arc Bathroom Faucet

The Moen 84535 is a single-handle, high arc lavatory faucet from the traditional-style Hilliard collection, finished in Chrome. It mounts on a bathroom sink or countertop through one hole of at least 1-1/8" diameter, with a maximum deck thickness of 1-1/4", and an optional 3-hole deck plate is included for covering a three-hole setup. It suits both replacing an existing sink faucet and outfitting a remodeled bathroom.

Key features

• Traditional styling from the Moen Hilliard bath collection
• Single pivot-action lever handle; temperature controlled by a 100° arc of handle travel
• High arc spout for single-hole deck mounting, with optional 3-hole deck plate (escutcheon)
• Moen 1255 Duralast cartridge
• 1.2 gpm max (4.5 L/min) at 60 psi flow rate; third party certified to WaterSense
• Metal construction in Chrome finish

What's in the box

• Non-metal pop-up type waste assembly
• Optional 3 hole deck plate (escutcheon)

Compatibility

Bathroom sink or countertop with 1 mounting hole, 1-1/8" minimum diameter, and a maximum deck thickness of 1-1/4" (32 mm); the included optional 3-hole deck plate covers a three-hole installation. Flexible supplies with 3/8" compression fittings.

Specifications

Manufacturer specification sheet: Moen 84535 specifications (PDF)
