Model #: TV6905ORB
Bathroom Faucets

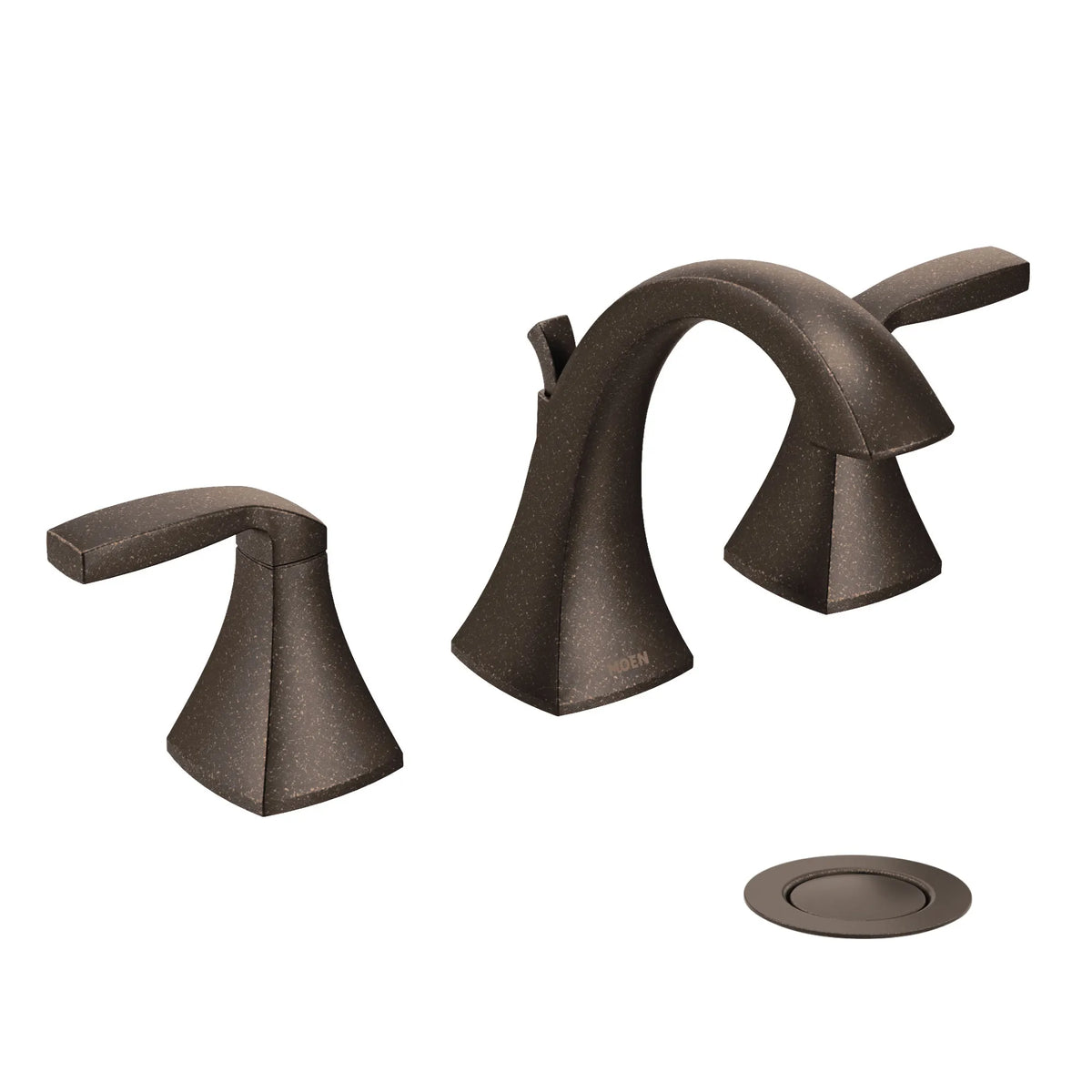

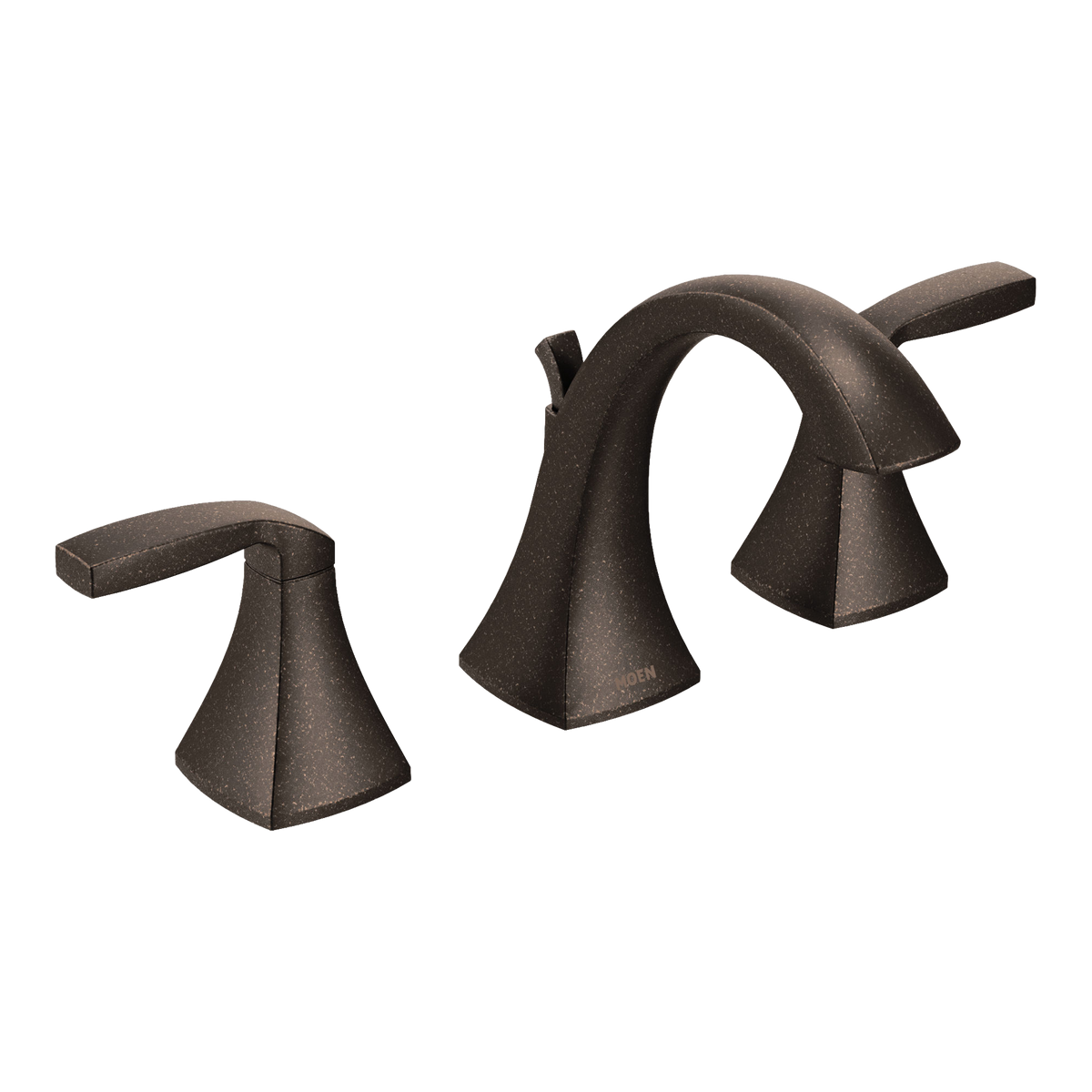

Moen TV6905ORB Voss Oil Rubbed Bronze Two-Handle High Arc Bathroom Faucet, Valve Included
1 in stock
Couldn't load pickup availability
Free US shipping · Ships next business day · Arrives in 3–6 business days
- Free US shipping
- Ships in 1 business day
- 30-day returns
- Secure checkout
Description
Valve included. This is a complete Moen two-handle widespread bathroom faucet: the Moen widespread rough-in valve (M-PACT 9000 series) comes in the box together with the spout and handles. No separate rough-in valve purchase is needed.
The Moen TV6905ORB is a Voss two-handle high arc widespread faucet in Oil Rubbed Bronze for a bathroom sink. The Moen widespread rough-in valve (M-PACT 9000 series) is included in the box. It suits both replacing an existing widespread lavatory faucet and fitting out a remodeled bathroom.
Key features
- Voss collection with crisp edges and a Transitional style
- Two lever-style handles
- 8" widespread, three-hole deck installation
- Oil Rubbed Bronze finish on metal construction
- 1234 Duralast cartridge
- 1.2 gpm max flow rate at 60 psi

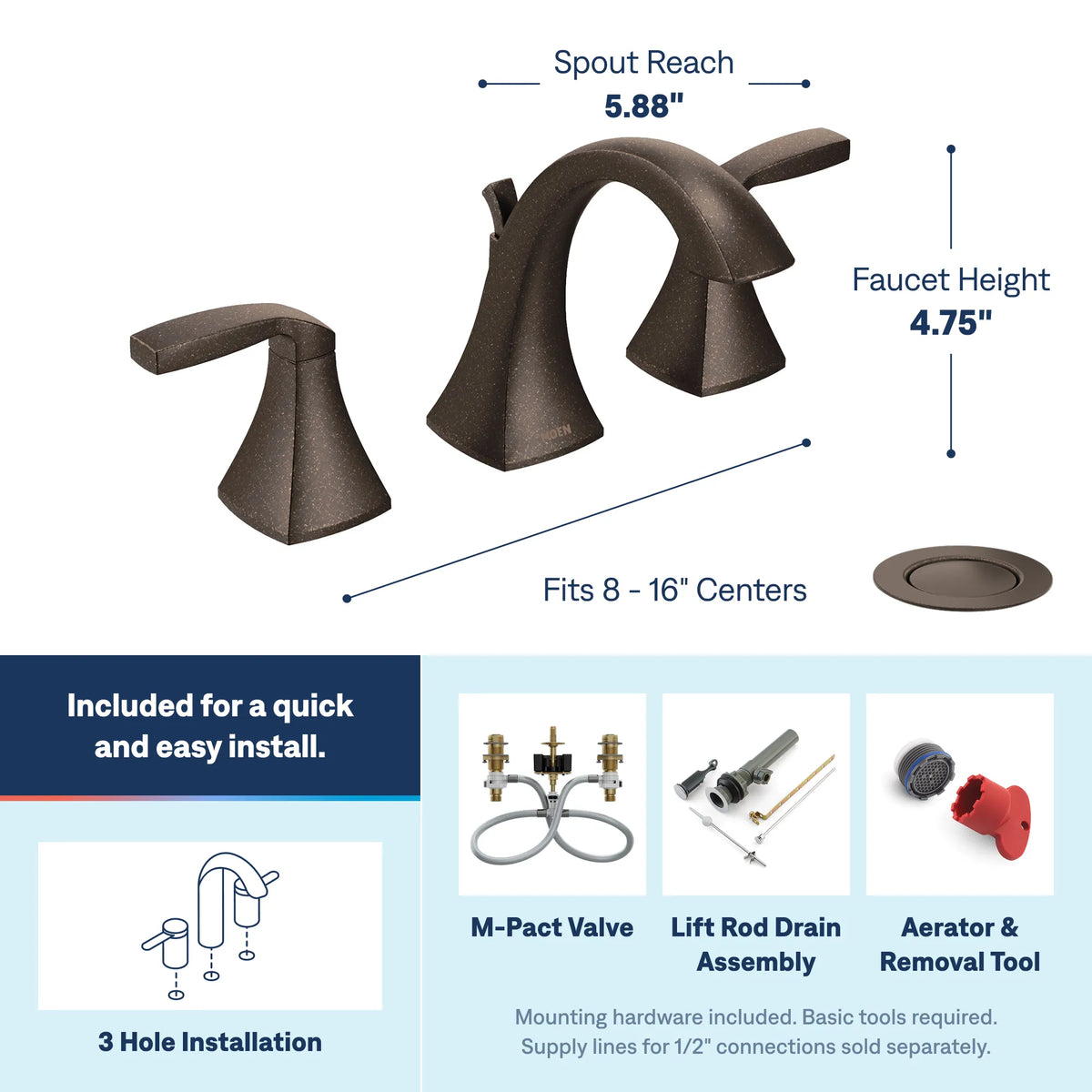

What's in the box
- Moen widespread rough-in valve (M-PACT 9000 series)
- Moen widespread rough-in valve (M-PACT 9000 series)
- Pop-up waste assembly
Compatibility
The Moen widespread rough-in valve (M-PACT 9000 series) is included in the box. The spec sheet does not name a specific compatible valve series. It is designed to install through 3 holes, 1-1/8" min. diameter, for a maximum deck thickness of 1-1/4"; for deck thickness 1-1/2" to 3", use service kit #175709.
Specifications
| Brand | Moen |
|---|---|
| Model | TV6905ORB |
| Collection | Voss |
| Finish | Oil Rubbed Bronze |
| Product type | Bathroom faucet (Two-Handle High Arc Widespread) |
| Valve / compatible valves | Moen widespread rough-in valve (M-PACT 9000 series, included) |
| Handles | Two lever-style handles |
| Mounting | Deck mount, 8" widespread, 3 holes (1-1/8" min. dia.) |
| Max. deck thickness | 1-1/4" (32 mm); 1-1/2" to 3" with service kit #175709 |
| Connections | 1/2" IPS; Duralock quick connect system |
| Flow rate | 1.2 gpm max (4.5 L/min) at 60 psi |
| Cartridge | 1234 Duralast cartridge, nonmetallic and stainless steel |
| Certifications | WaterSense; ASME A112.18.1/CSA B125.1; NSF 61/9 & 372; ADA for lever handles; complies with California Proposition 65 and the Federal Safe Drinking Water Act |
Manufacturer specification sheet: Moen TV6905ORB specifications (PDF)
Specifications
| Brand | Moen |
|---|---|
| Model number | TV6905ORB |
| Product type | Bathroom Faucets |
| Condition | New |
| UPC | 026508388075 |
