Quick answer: A Moen pressure-balancing valve keeps shower temperature constant by using a floating spool inside the cartridge that automatically adjusts the hot-cold water ratio when pressure changes occur in either supply line. When another fixture draws water, the spool shifts to restrict the higher-pressure side, restoring equilibrium and preventing sudden hot or cold shocks.
Few things disrupt a relaxing morning routine quite like stepping into a refreshing shower, only to have someone flush a toilet or run a kitchen faucet elsewhere in the house, causing the water to suddenly turn scalding hot or ice cold. Modern plumbing engineering solves this issue using specialized in-wall mechanics designed to keep your shower temperature steady and safe.
Understanding how a moen pressure-balancing valve operates helps you appreciate the sophisticated safety features built into your master bathroom. Whether you are troubleshooting a moen shower valve low pressure issue or planning a complete hardware upgrade, here is a detailed breakdown of how these valves function.
1. The Core Purpose: Preventing Scalding and Temperature Shocks
Before pressure-balancing valves became building-code requirements, sudden drops in cold water supply lines caused severe scalding accidents.
Balancing Hot and Cold: A standard moen shower valve blends hot and cold water streams inside a centralized brass body before sending them up to your shower head.
Automatic Compensation: When a sudden pressure drop occurs on either supply line—such as when another appliance draws water—the internal mechanism instantly reacts to maintain the exact ratio you selected with your handle.
| Component | Function | Common Issue |
|---|---|---|
| Balancing Spool | Adjusts hot-cold ratio automatically | Can jam with mineral scale |
| Cartridge | Houses spool and check valves | Needs replacement for low pressure |
| Hot Inlet Port | Delivers hot water to shower | Blockage causes low hot pressure |
| Cold Inlet Port | Delivers cold water to shower | Blockage causes temperature drop |
2. The Secret Hero: The Balancing Spool

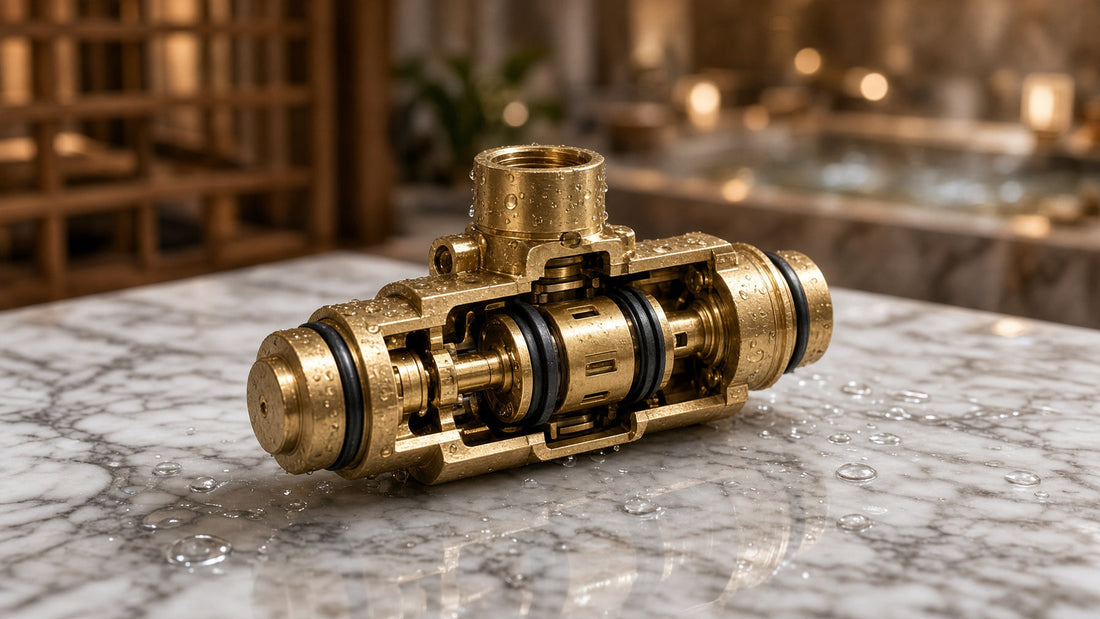

The mechanical heart of the entire system is the moving spool housed inside the cartridge.
How the Spool Operates: Inside the moen shower valve balancing spool assembly, a floating piston shifts dynamically back and forth. If cold water pressure drops suddenly, the higher pressure of the hot water pushes the spool over to restrict the hot water port proportionately.
Instant Equilibrium: Once the competing water demand subsides, the spool instantly returns to its centered position, ensuring uninterrupted, comfortable water delivery.
3. Troubleshooting Common Flow and Pressure Issues
While pressure-balancing valves excel at temperature regulation, they can occasionally present maintenance challenges:
A Posi-Temp pressure-balancing shower set in stock: the Moen 82971SRN Halle Posi-Temp shower-only faucet in Spot Resist Brushed Nickel.
Low Water Pressure: If you notice a sudden drop in flow, a moen shower valve low pressure problem is often caused by mineral scale buildup inside the internal check valves or a stuck balancing spool jammed with calcium debris.
Low Hot Water Pressure: If your hot water stream feels sluggish compared to the cold, debris may be blocking the hot inlet port. While a standard moen shower valve pressure adjustment is controlled automatically by the spool rather than a manual screw, cleaning or replacing a calcified cartridge completely restores performance.
