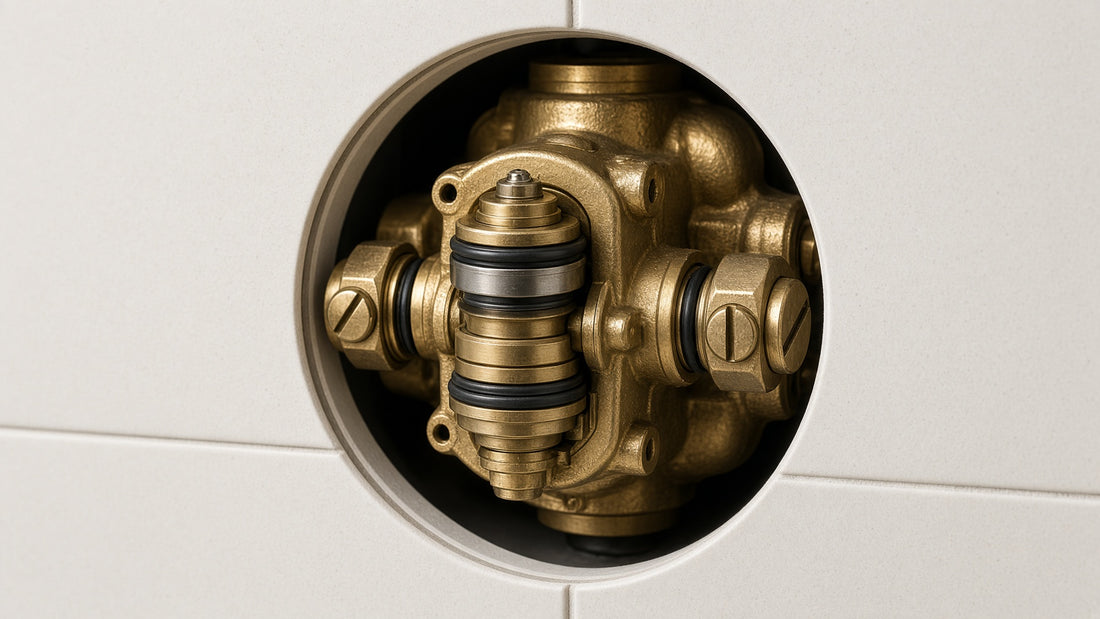

Can You Adjust Pressure at a Moen Shower Valve?

If you are looking for a moen shower valve pressure adjustment dial, the direct answer is no, standard residential units do not feature a mechanical setting to manually alter the baseline water force. These standard fixtures lack an internal screw or secondary handle designed to increase or decrease the physical flow of the water stream. The system outputs whatever hydraulic force the municipal water line or well pump delivers to the wall cavity, minus the normal friction loss from the internal household pipes.

However, if you are experiencing a sudden drop in water force, this indicates a mechanical blockage or a stuck internal component rather than a miscalibrated setting. Fixing this problem involves clearing obstructions, resetting the balancing spool, or opening integrated shutoff valves completely. If your home utilizes the dual-function moen moentrol pressure balancing valve 3570, pulling the handle outward dictates the volume, but you still cannot adjust the underlying maximum line pressure beyond what the house supplies.

Differentiating Your Control Valve Hardware

Figuring out which brass housing sits behind your wall determines how the fixture handles water delivery. Standard single-handle units operate on a purely rotational axis. Turning the handle counterclockwise changes the heat, but the mechanical ports inside open to their maximum preset dimension immediately. There is no partial flow setting available on these standard units, meaning the valve always operates at its maximum capacity whenever the water runs.

Pull-and-turn configurations offer a different operational mechanic for daily use. These units allow the user to pull the handle outward to increase the physical volume of water, then twist the handle left or right to mix the hot and cold supplies. This action represents the closest thing to active volume control, but it still relies entirely on the home's static baseline pressure to function correctly.

Knowing which mechanism you have dictates your troubleshooting steps moving forward. A rotational unit experiencing weak flow requires a different diagnostic approach than a pull-and-turn unit that suddenly refuses to output full force. Remove the decorative trim plate with a standard screwdriver to expose the brass rough-in and physically identify the cartridge type before proceeding with any plumbing repairs.

Locating and Opening Integral Stop Valves

Many commercial-grade and high-end residential rough-ins feature built-in shutoff mechanisms called integral stops. These small brass slotted screws sit on the left and right sides of the main housing, directly where the hot and cold copper supply lines enter the unit. Plumbers use these stops to isolate the water supply at the shower itself, avoiding the need to shut off the main water main down in the basement during routine maintenance.

Sometimes, these small valves remain partially closed after a repair or initial plumbing installation. A partially closed integral stop severely restricts the water volume entering the mixing chamber, resulting in a notably weak spray at the showerhead. Inspecting these stops serves as one of the most effective moen shower valve pressure adjustment instructions for restoring lost hydraulic force without replacing major internal components.

Grab a flathead screwdriver and gently turn the slots on both the hot and cold stops counterclockwise until they stop. Forcing the screw past its natural stopping point will strip the brass threads or cause a leak behind the wall. Once both stops sit completely parallel to the water flow, the mixing chamber receives the maximum possible volume from your home plumbing lines.

Unsticking the Pressure Balancing Spool

Sudden drops in pressure, particularly on only the hot or cold side, usually point to a stuck balancing spool. This small internal metal cylinder slides back and forth rapidly inside the cartridge, reacting to pressure fluctuations from toilets flushing or appliances running elsewhere in the house. The spool restricts the higher-pressure line to match the lower-pressure line, maintaining a stable temperature output and preventing accidental thermal shock.

If the fixture turns out to be past repair, a replacement in stock is the Moen T2692NH Voss Chrome Posi-Temp Shower Only Faucet Trim Kit.

Hard water scaling and heavy mineral deposits frequently fuse this tiny cylinder to the inside of its plastic housing. When the spool freezes in an extreme position, it permanently chokes off a significant portion of the incoming water volume. Learning how to fix moen shower pressure balance valve issues almost always involves removing this mineral buildup to free the internal slide and restore equal hydraulic flow.

Shut off the main water supply, remove the retaining clip with needle-nose pliers, and pull the cartridge straight out of the brass wall body. Soaking the entire plastic and metal assembly in a mixture of white vinegar and warm water for several hours dissolves the heavy calcium deposits. Shaking the unit near your ear should produce a distinct rattling sound, confirming the internal spool moves freely again.

Flushing Debris From the Wall Cavity

Construction debris, rust flakes from old galvanized pipes, and broken rubber gaskets frequently migrate through the plumbing lines until they reach the shower mixing chamber. The small inlet ports on a modern cartridge act as a physical net, catching this debris before it can exit the showerhead. A severe clog blocks the inlet ports, dramatically reducing the water force felt by the user during a shower.

Clearing this blockage requires flushing the raw brass wall unit while the cartridge is completely removed. This process requires two people and a large plastic bucket to prevent flooding the bathroom floor. Have a helper briefly turn the main house water supply on and off while you hold the bucket firmly against the open brass cylinder protruding from the tile wall.

The massive burst of unrestricted water blasts out trapped sediment, loose solder, and mineral flakes hiding deep in the supply lines. Reinstalling the cleaned cartridge after a thorough flush immediately restores the normal flow rate to the fixture. Applying a light coating of plumber's silicone grease to the exterior o-rings ensures the cartridge slides back into the brass housing smoothly and creates a watertight mechanical seal.

Addressing Restrictions at the Spray Head

Investigating the showerhead itself frequently solves low flow complaints without requiring any access to the internal wall components. Every modern spray fixture contains a mandatory plastic flow restrictor disc designed to limit the total gallon-per-minute output to comply with federal water conservation laws. This tiny plastic screen features microscopic holes that easily trap small particles of grit and sediment over time.

Unscrew the metal spray head from the angled wall pipe using an adjustable wrench padded with a dry rag to prevent scratching the finish. Look inside the threaded base of the head to locate the small plastic restrictor screen and its associated black rubber o-ring. Removing this screen with a dental pick and scrubbing it with an old toothbrush clears the microscopic holes and restores the original, unhindered spray pattern.

Taping the threaded wall pipe with fresh PTFE sealant tape prevents annoying leaks when reattaching the cleaned fixture. Applying the tape clockwise ensures the friction of tightening the nut binds the tape securely into the metal grooves. If the flow remains noticeably weak after cleaning the restrictor and reinstalling the head, the restriction definitely originates inside the concealed wall plumbing.

Replacing Compromised Cartridge Hardware

Repeated attempts to clean an aging cartridge eventually yield diminishing returns as the physical materials degrade. Internal rubber gaskets flatten out, plastic retaining clips crack under stress, and the metal balancing spool becomes pitted and corroded beyond repair. When a thorough vinegar soak fails to restore the physical rattling sound of a free-moving spool, the entire cartridge requires a direct swap.

Sourcing the exact replacement part requires identifying the specific metal serial number stamped onto the front face of the old unit. Inserting an incorrect cartridge into the brass housing leads to severe leaks, reversed temperature controls, or a complete lack of water flow. Most modern residential units utilize a standard 1222 cartridge, but verifying the physical dimensions prevents a frustrating return trip to the local hardware supply desk.
