Guessing the required hose length by drawing an imaginary straight line from the sink deck to the wall valve is the most frequent error made during a new installation. The space beneath a kitchen counter is heavily obstructed by deep sink basins, drain pipes, and bulky garbage disposals, forcing the actual water routing path to curve significantly. Purchasing standard short hoses based on a direct vertical measurement leaves you stuck with connections that physically cannot reach the shutoff valves. Getting the exact kitchen faucet supply line size and length right the first time prevents mid-project trips to the hardware store and ensures a secure, leak-free connection.

Integrated Hoses on Modern Moen Fixtures

Many contemporary Moen models eliminate the need to purchase separate connecting hoses entirely. These modern units typically feature built-in, flexible PEX tubing that extends directly from the internal brass cartridge down through the mounting shank. This factory-sealed design removes a common leak point, as there is no threaded connection required immediately beneath the faucet deck.

Working with these integrated lines simplifies the initial mounting process, but it requires you to adapt to whatever length the manufacturer provided. You cannot unscrew and swap an integrated hose for a longer one if your shutoff valves are positioned unusually low near the floorboards. Knowing exactly what size are sink supply lines attached to your chosen model before attempting the installation dictates how you will handle the final connections at the wall.

If the factory lines fall short of reaching your plumbing, you must implement specific extension strategies rather than replacing the lines entirely. This involves matching the male thread at the end of the integrated Moen line to a female connector on an additional extension hose. Checking the manufacturer specification sheet for your specific model confirms the exact length and thread type of these permanent factory lines.

Identifying Shutoff Valve Thread Dimensions

Connecting any fixture requires matching the hose end to the angle stops protruding from your wall or cabinet floor. The overwhelming majority of residential properties built or updated in the last forty years utilize a standard 3/8 compression supply line connection at the shutoff valve. This specific thread type features a flat outer edge designed to compress a small brass ferrule or a rubber gasket tightly against the valve body to create a watertight seal.

Older homes might present unexpected variations, particularly if the plumbing has not been updated since the mid-twentieth century. You might encounter half-inch iron pipe threads, which are noticeably wider and require a different mating nut than standard compression fittings. Forcing a mismatched nut onto an incompatible valve thread will cross-thread the brass, ruining the valve and causing a severe water leak immediately upon restoring the water pressure.

Confirming your kitchen faucet connector size at the wall before purchasing materials requires shutting off the main water supply and removing the old hoses. Taking a close look at the exposed valve threads allows you to identify the exact diameter and thread pitch. If you discover an outdated or non-standard valve size, installing a simple brass thread adapter is the most reliable way to transition to the modern compression standard required by new hoses.

Routing Hoses Around Cabinet Obstacles

The space underneath a kitchen counter presents routing challenges rarely found in other areas of the house. Massive cast iron farm sinks or deep undermount basins drop much lower into the cabinet cavity, forcing water lines to navigate tightly around the physical bowl. Garbage disposals and complex dishwasher drain loops further crowd the working area, completely blocking the direct vertical path from the deck plate to the wall valves.

Measuring for the correct faucet supply line size means using a flexible tape measure to trace the exact physical path the hose must travel. You must route the tape measure around the disposal unit and behind the drain pipes, avoiding any sharp bends or kinks. Adding an extra three to four inches to this final measurement provides the necessary slack to prevent tension on the threaded connections once everything is tightened down.

Pulling a hose tight like a guitar string across the cabinet cavity creates lateral stress on the plastic or brass nuts at both ends. Constant water pressure coupled with this physical tension causes the internal rubber gaskets to deform and eventually fail. Allowing the lines to drape naturally with a gentle curve ensures the mechanical seals remain flat and secure against their mating surfaces for years.

Preventing Pull Down Hose Interference

Modern kitchen fixtures heavily rely on a retractable wand mechanism that moves freely through the central spout. This mechanism utilizes a long, weighted nylon or braided hose that hangs down into the cabinet directly alongside the hot and cold water delivery lines. If the static supply lines are routed poorly, they will physically block the movement of this weighted spray hose.

Friction between the hot water line and the moving spray hose leads to annoying operational issues at the sink deck. The wand will fail to retract fully, or it will require excessive pulling force to extend, making daily dishwashing frustrating. Prolonged rubbing between the hoses can also fray the nylon braiding on the pull-down line, eventually causing the internal tubing to burst under pressure.

Securing the hot and cold lines securely to the back wall of the cabinet using simple plastic mounting clips eliminates this interference risk. Pinning the static lines out of the way creates a clear, unobstructed vertical drop zone for the heavy counterweight attached to the sprayer hose. You should test the extension and retraction of the wand multiple times before turning the water back on to verify that the path is completely clear.

Handling Extension Connections Safely

Finding that your factory-installed PEX lines will not reach the wall valves requires implementing a secure extension bridge. Connecting two hoses together introduces an additional mechanical joint into your plumbing system, creating a new potential failure point that must be assembled correctly. You cannot simply thread two standard female nuts together; you need a specific male-to-male brass nipple to join two female hose ends securely.

Using a dedicated extension hose designed specifically for this purpose is far safer than cobbling together multiple adapters. These purpose-built hoses feature a 3/8-inch female compression nut on one end to attach to the wall valve, and a 3/8-inch male compression thread on the other end to receive the integrated faucet line. This straightforward setup minimizes the total number of mechanical joints hiding behind your cabinet doors.

Applying Teflon tape or liquid thread sealant to compression fittings is a detrimental practice that ruins the watertight seal. The rubber cone gasket housed inside the female nut is entirely responsible for stopping the water. Adding tape to the threads prevents the nut from tightening down far enough to compress the rubber gasket adequately, causing the exact leak you were trying to prevent.

Material Differences in Replacement Hoses

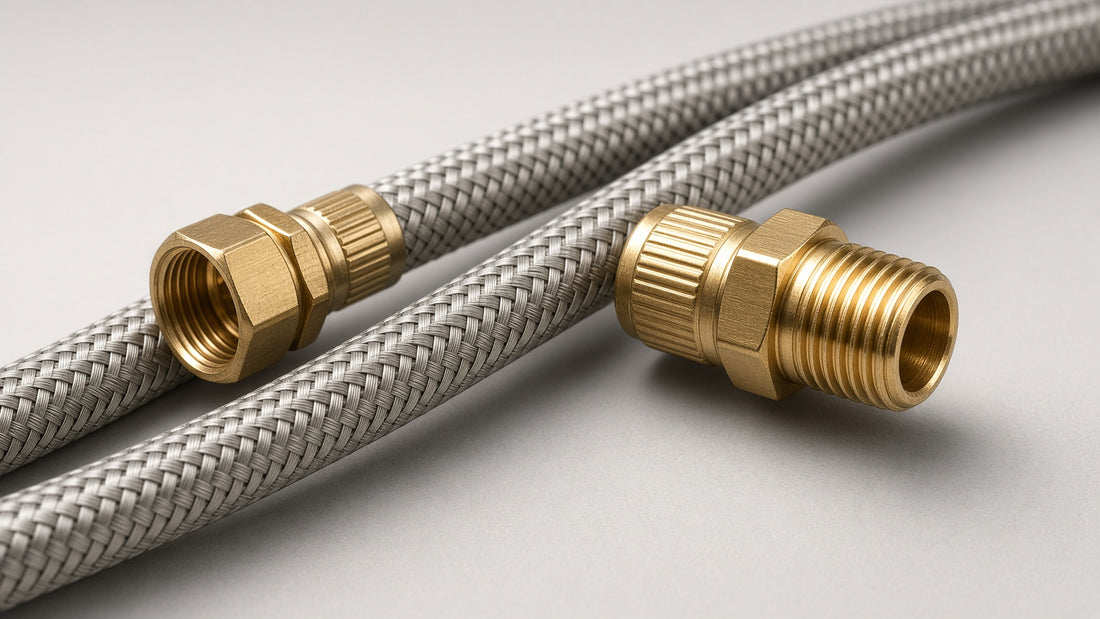

If your chosen fixture does not include built-in PEX lines, you must purchase separate connecting hoses to bridge the gap. Flexible braided stainless steel is the modern industry standard for these external connections, offering exceptional burst resistance and flexibility. The stainless wire mesh tightly encases an internal polymer core, protecting the water-bearing tube from physical punctures or abrasion from cleaning supplies stored under the sink.

Braided polymer hoses provide a viable alternative to stainless steel, functioning in much the same way but utilizing tightly woven plastic fibers for the exterior shield. These hoses are entirely immune to rust or corrosion, making them highly reliable in damp under-sink environments where minor condensation frequently occurs. Both materials bend easily to navigate around drain pipes without kinking, unlike the rigid copper tubing used heavily in past decades.

Installing rigid copper supply lines is largely obsolete for residential sink connections due to the immense difficulty of bending the pipe accurately without kinking the metal. Copper requires exact measurements, specialized bending tools, and precise alignment to mate with the valve threads. Flexible braided lines eliminate these installation hurdles, conforming instantly to the required routing path while maintaining maximum burst strength.

Securing a reliable water connection under the sink relies heavily on matching the exact physical dimensions of your existing plumbing. Identifying that your shutoff valves require a standard 3/8 compression supply line ensures you purchase compatible hardware that threads on smoothly without cross-threading. Accounting for the physical routing challenges around deep basins and moving sprayer weights guarantees you select a hose length that provides enough slack to prevent gasket failure while maintaining clear operation.
