Transfer Valve vs Diverter Valve: Which One Your Shower Needs

Two or three independent water outlets running simultaneously in the same shower enclosure drastically changes the underlying plumbing requirements behind the wall. Most standard residential bathrooms are plumbed for a single showerhead, utilizing a basic pressure-balancing mixing valve to blend hot and cold water. Once you decide to add a handheld sprayer, body sprays, or a ceiling-mounted rain can, you immediately face the technical challenge of directing that single mixed water source to multiple different destinations. This routing task falls squarely on a specialized distribution valve installed downstream from your main temperature control unit.

Selecting the exact right hardware to control water flow is a mandatory step before closing up the drywall or setting your tile. Installing the wrong type of directional control means tearing open the wall again later. The core hardware debate for custom bathrooms boils down to comparing a transfer valve vs diverter valve. Both mechanical devices perform the basic job of sending mixed water where you want it to go, but their internal mechanisms dictate exactly how many fixtures can operate at the exact same time.

Mechanics of a Standard Diverter Valve

Answering what does a diverter valve do begins with understanding absolute water redirection. This type of hardware acts as a strict switch, taking the mixed water from your main control handle and sending it down one specific pipe at a time. If you install a typical two-way diverter to control a fixed wall showerhead and a separate handheld wand, the diverter forces you to choose between them. You can have water flowing from the wall head, or you can turn the handle to send water exclusively to the handheld wand.

You cannot run both outlets simultaneously when using a basic diverter. The internal brass cartridge completely closes off the pathway to the inactive fixture to maintain maximum water pressure for the active one. This design aligns with older homes with lower overall water pressure or in areas with strict local plumbing codes that restrict maximum flow rates per shower enclosure.

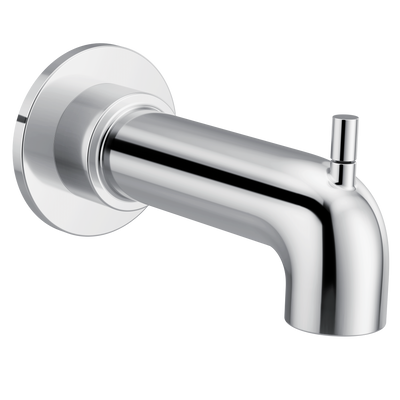

Operating this valve usually involves a dedicated handle or a push-button mechanism on the trim plate. Tub-and-shower combinations frequently utilize a simple pull-up diverter built directly into the tub spout to force water up to the main showerhead. For custom showers, a separate in-wall diverter valve requires its own hole in the tile and its own external trim kit, mounted above or beside the primary temperature mixing handle.

How a Transfer Valve Functions

Comparing a shower transfer valve vs diverter reveals a major functional upgrade for complex shower systems. A transfer valve allows you to send water to multiple plumbing fixtures either individually or at the exact same time. The internal cartridge design features shared zones between the distinct outlet ports. As you rotate the control handle, the internal mechanism smoothly transitions the water flow, creating a blending effect rather than a hard shutoff.

If you build a shower with two outlets, such as a main overhead rain can and a wall-mounted hand shower, a transfer valve provides three distinct functional settings. Position one sends water only to the rain can. Position two splits the incoming water volume, sending flow to both the rain can and the hand shower simultaneously. Position three directs all water pressure exclusively to the hand shower. This shared functionality is the defining characteristic that separates it from standard diverters.

Running multiple fixtures simultaneously demands a higher volume of water from your home plumbing system. Because the transfer mechanism splits the available water, the pressure drops slightly at each active fixture. To compensate for this division, custom shower systems often require upgrading to larger three-quarter-inch supply lines rather than standard half-inch pipes to ensure adequate volume reaches every active spray nozzle.

Water Volume and Pipe Sizing Rules

Planning a custom bathing space requires careful calculation of your available water pressure and overall flow capacity. Standard municipal water pressure typically hovers between forty and sixty pounds per square inch. When you activate a shared function on a transfer unit, the incoming water volume physically splits to feed multiple outgoing pipes. If your home already suffers from low pressure, running two showerheads at once will result in a weak, disappointing trickle from both fixtures.

Checking your main hot water heater capacity is another crucial step before buying hardware. Running a wall head and a hand wand simultaneously effectively doubles your hot water consumption per minute. A standard forty-gallon water heater will drain incredibly fast when feeding multiple high-flow fixtures. Tankless water heaters offer a great solution for high-volume custom showers, provided the unit is sized correctly to handle the increased gallons-per-minute demand.

Local building and plumbing codes also dictate which type of routing hardware you can legally install. Many states and municipalities enforce strict water conservation regulations that prohibit running multiple showerheads simultaneously in residential bathrooms. In these specific jurisdictions, you are legally required to use a strict diverter that prevents shared flow, ensuring you only consume the mandated maximum of two and a half gallons per minute or less.

Plumbing Rough In Requirements

Building a multi-fixture enclosure involves installing multiple brass valve bodies inside the wall cavity before installing any cement board or tile. The primary mixing valve sits at the bottom of the configuration to control the overall water temperature. A short length of copper or PEX piping connects the top exit port of that mixing valve to the bottom inlet port of your chosen directional valve.

Properly aligning these brass bodies is critical for a successful final trim installation. Both valves must sit at the correct depth relative to the finished tile surface. Manufacturers include plastic plaster guards attached to the raw brass valves to indicate the minimum and maximum insertion depths. Failing to mount the valves within this specific depth range means the decorative exterior handles will not screw on correctly once the tile work is complete.

Spacing between the two control handles is another factor that requires careful measurement. You need enough vertical or horizontal distance between the main temperature handle and the directional handle to ensure the decorative metal trim plates do not overlap. Most plumbers leave at least eight to ten inches of space between the center points of the two valves to accommodate large, decorative escutcheons.

Exact Moen Transfer Valve Options

Selecting a specific moen transfer valve requires matching the internal brass rough-in body with compatible exterior trim. Moen manufactures several distinct variations of directional valves depending on exactly how many outlets you plan to install. The M-CORE system offers highly adaptable routing solutions that can be configured on the job site to control either two or three independent fixtures.

These advanced rough-in valves use a specialized cartridge system that controls exactly how the water routes through the brass body. Depending on which specific cartridge is inserted into the valve during installation, the hardware can function as either a strict non-sharing diverter or a fully sharing transfer unit. This flexibility allows plumbers to install the same raw brass body inside the wall and adapt its final function to meet either homeowner preference or strict local water restriction codes.

Matching the exterior handles to your chosen valve body requires paying close attention to the trim kit specifications. Not all handles fit all valves, even within the same brand. You must verify that the decorative trim kit explicitly states compatibility with your exact rough-in valve model number to ensure the internal splines and mounting screws line up correctly during the final finishing phase.

Choosing the Correct Valve Type

Comparing the core functions of these two routing devices highlights exactly what you need to purchase for your bathroom renovation. A diverter acts as a strict selector switch, forcing you to choose one active water outlet at a time to maximize pressure and conserve hot water. A transfer unit provides the ability to blend flow between multiple outlets, creating a shared experience that requires higher total water volume and greater hot water capacity.

Ultimately, the decision between a transfer valve vs diverter valve comes down to your personal bathing preferences, your home water pressure, and your local municipal plumbing codes. If you want the ability to stand under a ceiling rain can while also using a handheld wand, the transfer unit is the mandatory choice. If you live in a region with tight water restrictions or simply want to guarantee maximum pressure from a single showerhead at a time, the standard diverter provides the correct mechanical solution.
