Moen Transfer Valve Installation: Planning Outlets and Controls

Two, three or four: the number of outlets you want to run is the first thing to settle in a Moen transfer valve installation. A standard single-handle pressure-balancing valve mixes temperature and turns the water on and off. A transfer valve has a different job, routing that water to a rain head, a handheld wand, body jets or a Roman tub spout. The outlet count shapes the rest of the plan.

The sections below follow the job from planning to finish: how a transfer valve differs from a diverter, how to plan outlet configurations and port layouts, rough-in framing and depth checks, piping and connection practice, and finally trim installation and handle alignment once the tile is done. For an M-CORE transfer valve, keep the official installation instructions for your model open alongside this guide.

Anatomy of a Transfer Valve vs Diverter Valve

Before opening your wall framing, it is essential to distinguish between a transfer valve and a standard diverter valve, as their internal mechanics and plumbing roles are entirely different.

A traditional diverter valve is typically integrated directly into a single shower mixing valve to switch water flow between two points—such as a tub spout and a shower head. In contrast, a transfer valve is an independent rough-in body installed downstream of your primary mixing valve.

Transfer valves do not control water temperature or volume; their sole purpose is to direct tempered water to multiple distinct shower outlets. Depending on the model configuration, a transfer valve can feature shared functions—allowing water to flow to two outlets simultaneously, such as a rain head and body sprays together—or discrete functions that direct water to only one single outlet at a time.

Planning Your Outlet Configurations and Port Layouts

Successful installation begins long before you pick up a torch or a wrench; it requires meticulous mapping of every water outlet in your shower design.

When planning your layout, determine exactly how many shower features you want to control. A two-port transfer valve handles two distinct devices, while three-port or four-port systems accommodate complex multi-head custom enclosures.

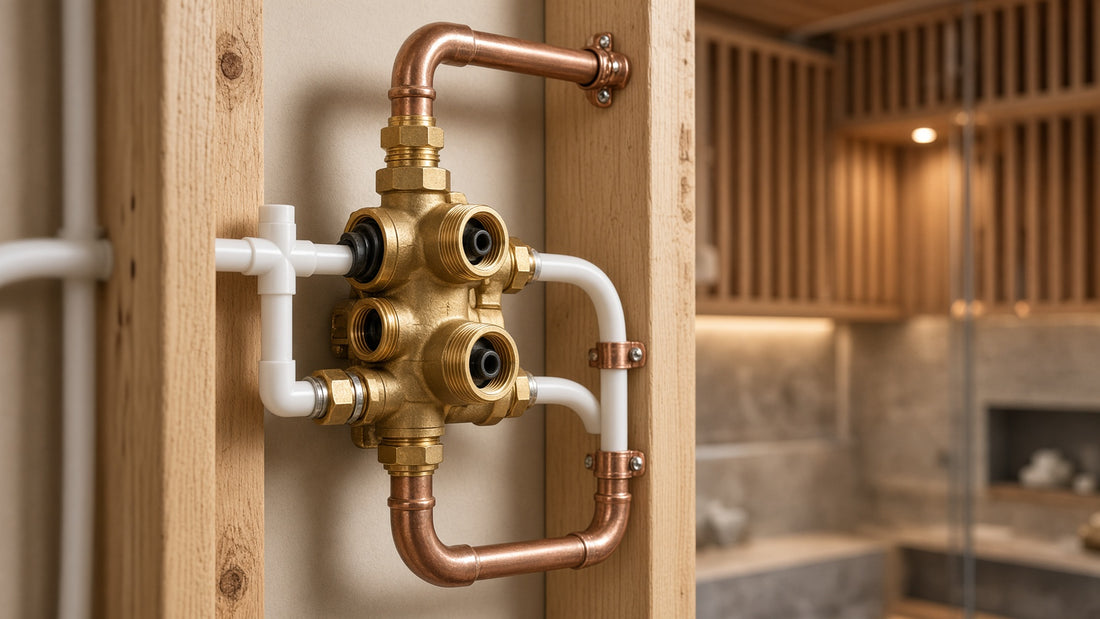

Carefully examine your rough-in valve body to identify the common water inlet—which receives tempered water directly from your primary pressure-balancing or thermostatic mixing valve—and the individual outlet ports leading upward or outward to your shower arms, slide bars, and body spray manifolds. Never cap or block required ports incorrectly, and always review your manufacturer specification sheets to confirm whether your chosen valve allows shared or non-shared water flow.

Rough-In Framing and Depth Verification

Mounting your transfer valve securely inside the wall stud framing requires the same dimensional precision as your primary mixing valve.

Secure sturdy wooden or metal cross-bracing between your vertical wall studs at a comfortable operating height, typically positioned forty-eight to sixty inches above the finished shower floor, keeping the control handle within easy reach of the primary mixing valve.

Verify your finished-wall depth carefully. Just like standard mixing valves, transfer valves feature alignment markers or plaster guards that must sit flush with the exterior face of your finished tile, stone, or waterproofing membrane. Factoring in the total combined thickness of your backer board, waterproofing layer, and tile ensures your final trim sleeve will fit snugly against the wall without awkward gaps.

Step-by-Step Piping and Connection Best Practices

Executing clean, leak-free plumbing connections is the cornerstone of a successful multi-outlet shower installation.

Whether your plumbing layout utilizes copper sweat fittings, PEX expansion rings, or threaded adapters, ensure all lines are thoroughly flushed of copper shavings, flux, and debris before making final connections. Debris trapped inside the valve body can scratch internal ceramic discs and cause persistent dripping from your shower heads.

Always perform a rigorous hydrostatic pressure test on the entire assembly before closing up the drywall or cement backer board. Cap all outlet lines temporarily, pressurize the system with water or air test gauges, and inspect every soldered or crimped joint for hidden leaks over a twenty-four-hour period.

Finalizing Trim Installation and Handle Alignment

Once your tile work, grouting, and sealing are completely finished, you can proceed to the final decorative phase of your project.

Slide the protective plaster guard off the valve stem, clean any residual mortar or tile adhesive from around the valve opening, and position the decorative escutcheon plate over the stem, applying a thin bead of waterproof silicone caulk around the top and side perimeters.

Install the extension sleeve, attach the control handle securely using the provided hex screw, and test the transfer valve through its full range of motion. Rotate the handle slowly to verify that water engages each designated outlet cleanly and without internal binding.
