Quick answer: The Moen 84516 Findlay faucet package includes a fully assembled brass body with pre-installed braided supply lines, a wide decorative deck plate with foam gasket (plus an optional circular base ring), a push-down drain assembly, and all necessary mounting hardware. It is designed for a sink opening of at least one and one-eighth inches and works with a four-inch hole spread for the deck plate.
The handle gets stiff and jerky, and no matter how hard you push it down, a constant drip forms right at the base of the metal spout. Homeowners typically encounter this mechanical failure right before deciding to replace the entire fixture rather than hunting down internal parts. Selecting the moen 84516 findlay provides a direct solution for updating a failing vanity setup. Knowing exactly what components ship inside this specific package prevents frustrating mid-installation discoveries.

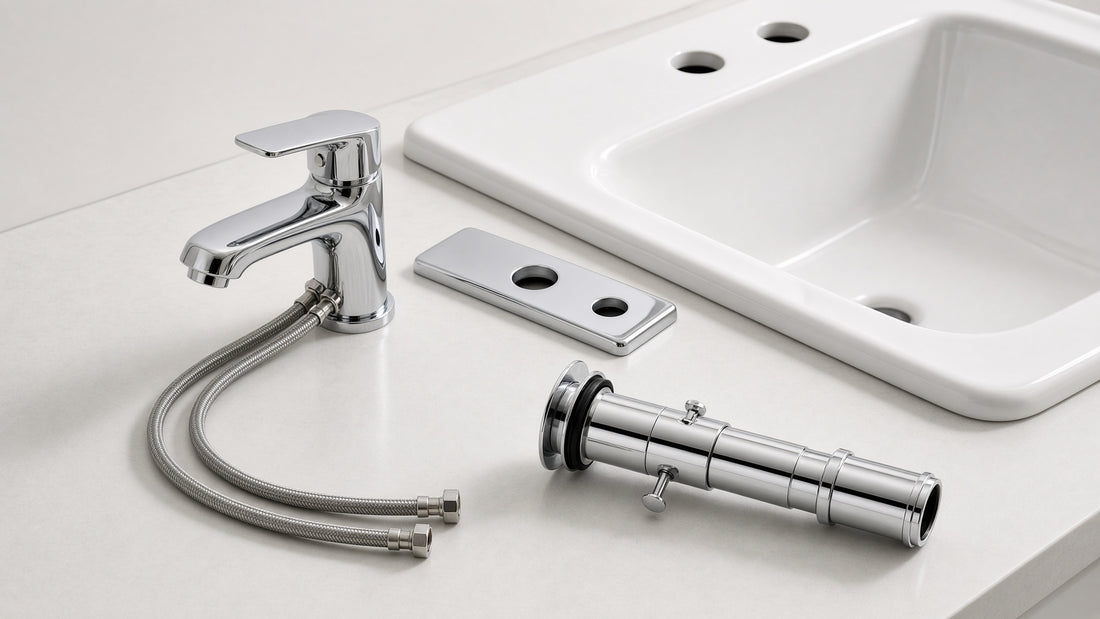

Unboxing the Core Faucet Components
Opening the retail packaging for the moen 84516 reveals the primary metal alloy casting that forms the main body. This central hub arrives fully assembled from the factory, meaning you will not piece together the spout and the internal mixing chamber manually. The factory seals the internal cartridge securely inside this housing, protecting the sensitive ceramic discs from handling damage during transit.
Lifting the heavy casting out of the box exposes the pre-attached flexible supply lines trailing from the bottom of the brass shank. Manufacturers integrate these lines directly into the base of the moen 84516 single handle model to eliminate common leak points that occur when connecting separate hoses. Handle these braided lines carefully, ensuring you do not kink the protective mesh jacket or crush the brass connection nuts.
| Component | Description | Compatibility/Requirement |
|---|---|---|
| Core faucet body | Fully cast metal hub with factory-sealed cartridge | Fits sink opening of at least one and one-eighth inches |
| Pre-installed supply lines | Braided hoses ending in standard compression fittings | Reach typical residential shutoff valves |
| Deck plate option | Wide decorative metal escutcheon with foam gasket | Covers three-hole layout up to four-inch spread |
| Base ring | Circular ring for single-hole vanity tops | Used when only one central hole is present |
| Push-down drain assembly | Spring-loaded metal flange, rubber wedge gasket, friction nut | Replaces corroded drain flanges, requires plumber’s putty |
Evaluating Deck Plate Included Hardware
Transitioning from a traditional dual-knob layout to a unified control lever frequently leaves exposed, unused holes punched through your ceramic basin. The findlay chrome bathroom faucet package includes a wide, decorative metal escutcheon plate specifically designed to conceal these outer drill holes completely. This rectangular deck plate slides directly over the central mounting shank before you drop the fixture through the sink, resting flat against the surface.
You will find a custom-cut foam gasket attached directly to the underside of this decorative metal plate. This barrier compresses against the basin deck as you tighten the mounting hardware from below, preventing surface splashes from seeping into the wooden vanity cabinet. If your vanity top features only a single central hole, you can discard this wide deck plate and use the provided circular base ring instead.
Push Down Drain Assembly Mechanics
Modern vanity upgrades typically involve replacing the corroded metal drain flange resting at the bottom of the sink basin. This kit includes a matching spring-loaded drain assembly that eliminates the frustrating mechanical lift rods found on older plumbing iterations. You simply press down on the metal cap to seal the basin, and press it again to release the trapped fluid down the pipes.
The provided drain kit consists of the upper metal flange, a threaded plastic tailpiece, a thick rubber wedge gasket, and an oversized friction nut. Installing this component requires pressing plumbers putty under the metal rim before dropping it through the sink drain hole to prevent slow perimeter leaks. Tightening the lower friction nut pushes the thick rubber wedge gasket up against the rough, unglazed underside of the porcelain sink.
Dimensional Requirements for Vanity Basins
Dropping this fixture into place requires verifying the physical spacing and hole diameter cut into your specific vanity top. The central brass shank requires a standard minimum hole diameter of one and one-eighth inches to pass through the deck without binding. Attempting to force the threaded metal through an undersized hole will strip the threads and ruin the mounting capability entirely.
When utilizing the included wide deck plate to cover a three-hole configuration, the outer holes must not exceed a standard four-inch spread measured from the center of the left hole to the right hole. The decorative plate spans exactly enough distance to hide this specific layout, which remains the most common standard in residential bathroom construction. Spreads measuring eight inches require a completely different hardware category.
Single Lever Temperature Management
Operating a unified control mechanism relies entirely on the internal mixing cartridge managing the flow channels. The moen 84516 utilizes a specialized rotational cartridge that blends the incoming supply streams based on the physical position of the lever. Pushing the handle upward opens the main ceramic valve, while rotating it left or right dictates the exact ratio of the blend.
This internal component features hardened ceramic discs that slide against one another to shear off or open the fluid pathways. Ceramic material resists the scoring and scratching caused by microscopic sand and sediment traveling through municipal pipelines. This extreme durability prevents the slow drips that plague older rubber-washer valve designs after a few years of daily operation.
Connecting the Integrated Supply Lines
Routing water from the shutoff valves protruding from the wall directly into the fixture relies on the pre-installed braided hoses. These flexible lines extend downwards from the brass body, measuring long enough to reach standard stop valves without requiring rigid copper extensions. The braided stainless steel exterior protects the internal polymer tubing from ballooning and bursting under static municipal pressure.
The terminal ends of these hoses feature standard three-eighths-inch compression fittings designed to thread directly onto typical residential shutoff valves. You will find small rubber cone washers seated inside these threaded metal nuts, providing the actual seal against the valve face. Securing these connections requires gripping the shutoff valve body firmly with one wrench while turning the hose nut with a second wrench to prevent twisting the copper pipes.
Maintaining the Reflective Chrome Finish
Preserving the mirror-like exterior of the findlay chrome bathroom faucet demands a specific, gentle cleaning routine. The bright chrome plating applied over the underlying metal alloy readily highlights dried mineral deposits and oily fingerprints from daily usage. Allowing toothpaste splatter and hard water droplets to sit on the surface for extended periods leads to stubborn calcification rings.
Abrasive scrubbing pads and harsh chemical solvents will permanently scratch or dull the thin chrome layer, exposing the dull base metal. You must apply only mild, pH-neutral dish soap diluted in warm water using a soft microfiber cloth. Wiping the fixture completely dry after heavy usage prevents the minerals from settling in the first place, drastically reducing your cleaning workload and preserving the bright exterior.
Evaluating the exact contents of the Moen 84516 package ensures your chosen sink layout aligns perfectly with the provided hardware. The integrated supply lines, the flexible deck plate options covering up to four-inch spreads, and the inclusion of a modern push-down drain assembly streamline the entire upgrade process. Matching this specific single-handle geometry to your basin dimensions results in a stable, reliable daily fixture that functions exactly as intended.
