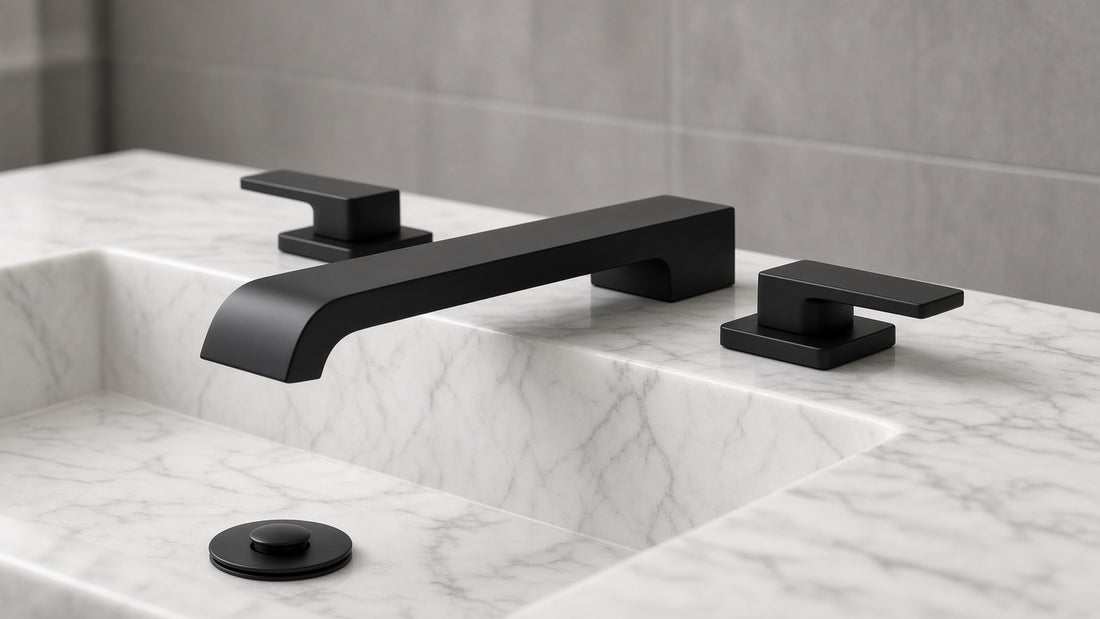

Moen 84764BL Genta Widespread Faucet: Fit, Drain and Matching Trims

Verify the hole spacing on the sink deck before acquiring the moen 84764bl hardware. Widespread configurations require three independent mounting holes, and confirming the exact distance between the outer handles prevents immediate installation roadblocks. Measuring center-to-center ensures the plumbing rough-in aligns correctly with the spout and handle stems. Checking the hole diameters also verifies the hardware shanks will drop through the ceramic without requiring structural modifications to the sink top.

The moen genta 84764bl represents a specific geometric design that demands precise alignment during setup. Proper positioning affects both water flow trajectory into the basin and the mechanical operation of the cartridges. Taking accurate measurements early dictates the necessary valve adjustments below the counter and establishes a reliable foundation for the entire water delivery system.

Assessing Deck Thickness and Spacing

Clearances below the counter directly influence how the valves secure to the basin or vanity top. The genta matte black widespread faucet relies on adjustable mounting nuts that accommodate standard deck profiles. Standard counter thicknesses generally fall between half an inch and an inch and a quarter across residential applications. Modern undermount sinks add another layer of material that the mounting shank must pass through.

Thicker custom countertops might require extension kits to allow the handle trims to seat flush against the surface. Measuring the actual material thickness around the drilled holes determines if the factory-supplied shank will reach the threaded connections. Verifying this dimension early saves trips for specialized plumbing extensions midway through the project. Solid stone counters often present the greatest challenge for factory shank lengths.

Spacing between the hot and cold valves usually ranges from eight to sixteen inches. The flexible hoses connecting the handles to the central spout tee offer adaptability for various spread widths. Stretching these lines too far creates tension on the fittings, while grouping them too closely can lead to kinked supply connections that restrict overall volume. Proper hose routing prevents long-term stress on the metal crimps.

Securing the Central Spout Assembly

Centering the main delivery tube establishes the focal point for the entire installation process. The mounting shank must sit perpendicular to the basin edge to prevent water from splashing outside the intended drain area. Tightening the mounting bracket underneath requires firm upward pressure while someone holds the spout perfectly straight from above the counter. Any slight rotation during this tightening phase becomes glaringly obvious due to the flat spout profile.

The quick-connect tee fitting snaps onto the bottom of the spout shank, serving as the distribution hub for incoming water. Ensuring this plastic or brass junction clicks fully into place prevents pressure leaks inside the vanity cabinet. A distinct physical stop indicates the internal O-ring has seated correctly against the internal pipe walls. This connection handles mixed water before it reaches the spout.

Routing the output lines from the valves into this central manifold demands careful hose management inside the cabinet space. Avoiding sharp bends maintains adequate volume and pressure for the final aerator output. Wrapping any threaded connections with appropriate sealing tape before final assembly adds a reliable barrier against municipal water pressure fluctuations. Organized hoses also leave room for storing items below the sink.

Installing the Handle Valves Correctly

Hot and cold cartridges sit inside dedicated valve bodies that mount directly from underneath the counter. Aligning the flat sides of the internal stems ensures the lever handles face outward appropriately in the resting position. Misaligned stems result in awkward grip angles and restrict the full ninety-degree rotation needed for maximum water flow. Correct orientation ensures the user intuitively pulls the lever toward themselves.

The locking nuts on the valve bodies thread upward against a thick friction washer. Applying even torque with a basin wrench prevents the entire cylinder from spinning when the user operates the tap above. Overtightening these nuts can crack fragile porcelain sinks, so moderate but firm pressure remains the best practice for a secure hold. Cast iron sinks tolerate more torque, but caution remains advisable.

Attaching the decorative escutcheons and levers over the rough plumbing finalizes the top-side mechanical appearance. Small set screws hide out of sight under the lever, gripping the internal stem to lock the handle firmly into place. Periodically checking these set screws for tightness keeps the levers from wobbling after heavy daily operation by household members. The allen wrench provided in the box fits these specific hardware fasteners.

Configuring the Pop Up Drain

Managing waste water requires focused attention to the moen 84764bl drain assembly components included in the factory box. Many modern iterations utilize a push-down mechanical plug rather than a traditional pull-rod mechanism behind the spout. Determining sink overflow compatibility stands as the primary factor before securing the main plastic or brass tailpiece.

Sinks featuring built-in overflow channels require a drain body with corresponding lateral holes drilled into the sides. Water rising too high enters the overflow passage and travels down into these side ports to escape safely into the P-trap below. Installing a non-overflow drain on an overflow-equipped basin blocks this critical safety route and traps stagnant moisture inside the ceramic walls.

Securing the rubber gaskets above and below the drain hole seals the waste connection tightly against gravity. Plumber's putty provides a viable alternative under the top flange if the supplied foam gasket feels insufficient for uneven basin surfaces. Tightening the large bottom nut compresses the lower rubber cone against the sink bottom, halting any slow drips along the exterior threads.

Selecting Coordinated Bathroom Accessories

Matching the matte black finish across the bathroom environment creates visual cohesion throughout the daily use space. The specific hardware collection features distinct flat edges and sharply curved corners that repeat across various functional pieces. Identifying paper holders and shower components with similar geometry maintains a consistent structural aesthetic from the sink to the bathing area.

Wall-mounted accessories utilize a specific mounting bracket system involving hidden metal anchors behind the drywall. Ensuring structural anchors can support the heavy weight of wet bath linens dictates placement near wooden studs whenever possible. The set screw mechanism on these accessories functions identically to the sink handles, requiring a small hex wrench for final tightening against the wall plate.

Shower valve trims present another major opportunity to carry the exact geometric shape into the enclosure. Rough-in valves buried inside the wall dictate which exterior plates and handles will fit onto the protruding pipe. Comparing the existing plumbing connections against the required brand-specific platforms prevents incompatible trim purchases and delays.

Successfully mounting the moen 84764bl requires exact deck hole measurements, careful routing of the flexible supply hoses, and proper alignment of the directional valve stems. The accompanying push-style waste assembly demands correct overflow matching to function safely within the specific basin design. Finishing the space with geometric hardware pieces in the exact same dark tone unifies the room's visual impact and utility.
