Bathroom Faucet Drain Assembly: Parts and Installation Order

Installing a new bathroom vanity fixture involves coordinating multiple working parts, from the deck-mounted handles and spout down to the mechanical drainage system hidden beneath the basin. While choosing an exquisite finish defines the aesthetic character of your master bath, ensuring proper water evacuation is essential to prevent messy cabinet leaks, slow draining, and water damage.

A bathroom faucet drain assembly only seals properly when each part goes on in the right sequence. The sections below name every component, explain how the sink's overflow affects which drain you need, describe when replacement is worth doing, and then give the installation order step by step. The same order applies to a replacement drain on an old sink and to a new countertop basin.

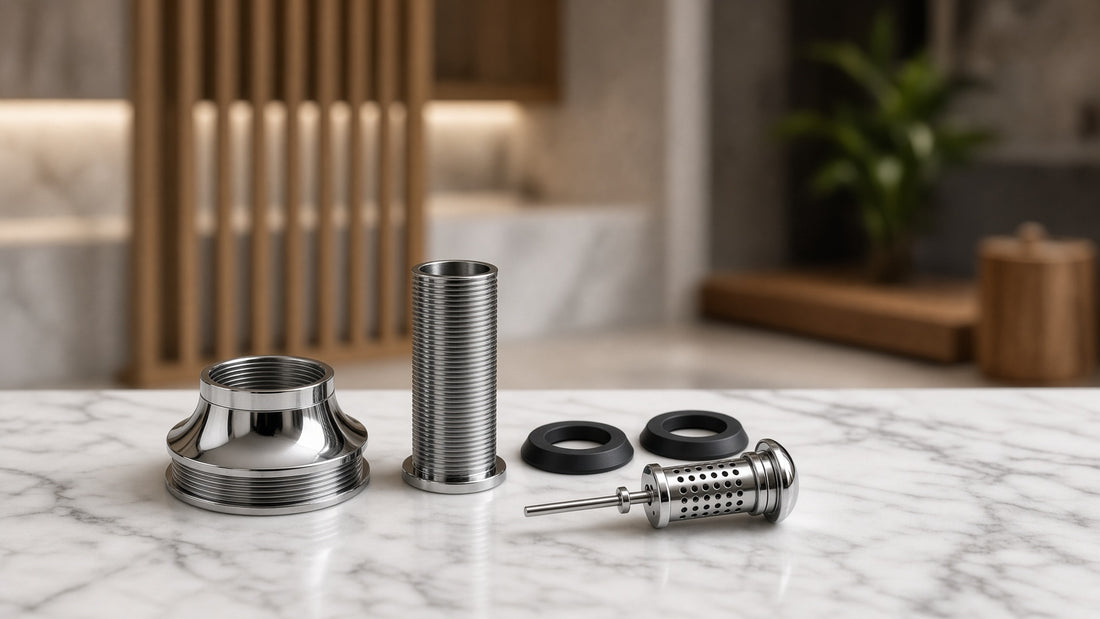

Anatomy of a Modern Sink Drain Assembly

Before picking up a wrench, familiarizing yourself with the core components of a drainage system helps you approach the project with confidence. Modern American plumbing systems typically utilize standardized parts designed for durability and ease of maintenance.

The flange is the visible decorative ring that sits flush inside the bottom of the sink basin bowl, catching debris while directing water downward. Beneath the basin, a threaded tailpiece connects the flange to the trap arm, while specialized washers and rubber gaskets create a watertight seal against the porcelain or stone surface.

Many traditional systems incorporate a pop-up rod and pivot arm mechanism connected to a stopper, allowing users to open and close the drain effortlessly. Alternatively, modern push-button and grid assemblies offer streamlined operation without manual linkage bars behind the pipe.

Evaluating Overflow Requirements and Sink Types

A critical consideration during hardware selection is determining whether your sink basin features an integrated overflow channel.

A standard bathroom sink drain assembly with overflow is engineered with small side openings along the upper body of the drain pipe. These openings capture water that rises near the rim of a filled basin and route it safely back down through the main waste pipe, preventing accidental bathroom floods.

Vessel sinks and certain modern architectural basins often feature completely solid walls without an overflow channel. These unique installations require specialized non-overflow drain assemblies to prevent water from leaking into your vanity cabinet through unsealed side ports.

When Is Drain Assembly Replacement Necessary?

Plumbing fixtures endure constant exposure to standing water, chemical cleaners, and physical wear. Knowing when to swap out old hardware prevents sudden leaks.

Routine replacement is strongly recommended whenever you install a brand-new faucet trim suite. Old metal drain bodies frequently accumulate stubborn mineral scale and corrosion on their internal threads, making them impossible to seal securely once disturbed.

If you notice dampness pooling around the P-trap, stubborn water weeping from beneath the sink flange, or a stiff pop-up mechanism that refuses to seal tightly, a complete hardware upgrade is the most effective solution.

Step-by-Step Installation Order and Best Practices

Installing a drain assembly requires a precise sequence to ensure every gasket and washer seats properly under compression. Follow these methodical steps during your project:

Always shut off your water supply valves and place a bucket directly beneath the P-trap to catch residual water before loosening any slip nuts.

Unscrew the large slip nut holding the P-trap to the vertical tailpiece, slide the trap downward, and carefully remove the old drain body from the sink basin. Clean away old plumber's putty, silicone residue, and mineral scale from the drain opening to ensure a perfectly smooth sealing surface.

Apply a thin, even bead of waterproof silicone sealant or roll a clean rope of traditional plumber's putty around the underside rim of the new drain flange. Insert the flange downward through the top of the sink basin drain hole.

Working from underneath the sink basin, slide the thick rubber cone washer onto the threaded drain body with the tapered end facing upward into the basin drain opening. Follow it with the friction washer and metal mounting nut, tightening the nut securely by hand and giving it a careful quarter-turn with a wrench to compress the rubber gasket.

Attach the remaining tailpiece and reconnect your P-trap and slip joints, ensuring all plastic washers are correctly seated. Run water through the basin for a minute to test the entire drainage path for leaks before final cleanup.
