Quick answer: No, most bathroom faucet boxes do not automatically include a drain assembly; you must verify the “What’s Included” list. Some collections bundle a pop-up drain, while grid drains are typically sold separately, and you also need to match the sink’s overflow design.
Planning a bathroom renovation or updating an existing vanity setup involves coordinating numerous design details and technical requirements. While selecting a striking finish and ergonomic handle style commands most of your attention, logistical surprises can quickly derail a weekend DIY project. One of the most common questions homeowners ask before purchasing new hardware is whether essential matching accessories—specifically the wastewater drainage mechanism—are included in the packaging.
Mastering what is included when you purchase a new fixture helps you avoid mid-project delays. Whether you are wondering do faucets come with drain assembly hardware or planning a complete bathroom sink drain assembly replacement, understanding product packaging standards ensures a smooth, fully prepared installation.

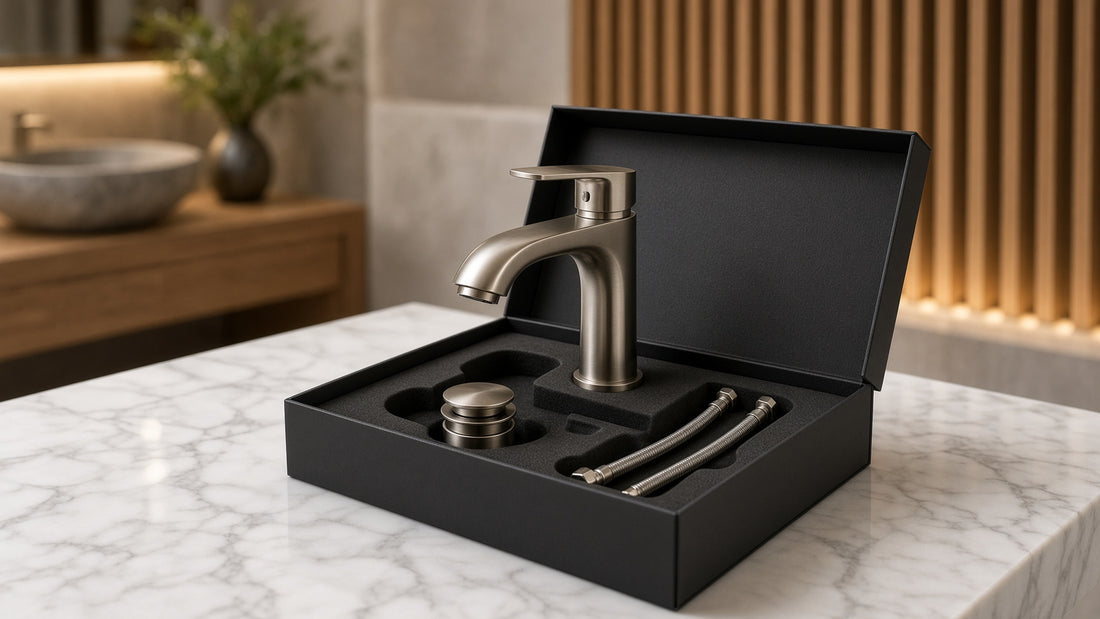

What Standard Bathroom Faucet Boxes Contain
When you open a brand-new residential lavatory faucet box, the contents can vary significantly depending on the manufacturer collection and whether the fixture is designed for a single-hole or widespread configuration.
An example in stock: the Moen TV6142 Gibson Chrome Two-Handle High Arc Widespread Bathroom Faucet.
A typical single-handle faucet package generally includes the main faucet body, the decorative deck plate or escutcheon if you are covering unused three-hole configurations, flexible supply lines with standard compression fittings, mounting hardware, and an installation wrench.
However, whether a matching drain assembly is included inside that same box is never uniform across the plumbing industry. Some collections package the complete pop-up assembly together with the faucet, while others intentionally omit it to give homeowners the freedom to select specialized finishes or modern grid drains separately.
| Drain Type | Included in Box? | Overflow Needed? |
|---|---|---|
| Pop-up drain | May be included; check specs | Standard overflow required |
| Grid drain | Usually not included; purchase separately | Not required for non-overflow sinks |
Evaluating Drain Types: Pop-Up Versus Grid Drains
If your chosen faucet does not include a drain assembly, or if you prefer a specific operational style, you will need to source one independently. Understanding the differences between standard drain configurations is essential for your project.
Traditional pop-up drains feature a mechanical lift rod or a push-and-pull stopper mechanism that seals the basin for filling. These assemblies are ideal for standard bathroom sinks that require water retention for shaving, washing delicate items, or general grooming.
In contrast, grid drains feature a fixed, slotted metal grate that remains open at all times, allowing water to drain continuously without an intentional plug. Grid drains are exceptionally popular in modern minimalist powder rooms and vessel sink setups where overflow protection is managed differently or omitted entirely.
Checking for Sink Overflow Compatibility
Another vital technical factor to verify before purchasing or installing any drainage hardware is whether your porcelain, glass, or stone sink bowl features an overflow channel.
A standard bathroom sink drain assembly with overflow is engineered with small side-entry portholes just beneath the upper flange. These openings capture any water that rises too high in the basin and route it safely down through the inner wall of the sink bowl and into the drain pipe, preventing accidental flooding on your bathroom floor.
If your sink bowl is a modern vessel style that lacks an internal overflow passage, you must purchase a specialized non-overflow drain assembly. Installing an overflow drain into a non-overflow sink will cause water to leak directly into your vanity cabinet through the side weep holes.
Step-by-Step Checklist for Ordering and Preparation
Check the box before the old faucet comes off the sink. Work through these steps:
Carefully review the product description, specification sheets, and "What's Included" checklist provided by the manufacturer before finalizing your hardware purchase. Never assume a drain is inside the box unless it is explicitly listed as a included component.
Inspect your existing sink basin to determine if it requires a standard pop-up mechanism or a specialized grid drain, and confirm whether it features an internal overflow channel.
If you are coordinating a moen bathroom faucet drain assembly or matching an existing finish, ensure that your chosen drain stopper shares the exact same metallic finish—such as polished chrome, brushed nickel, or matte black—as your faucet spout and handles to maintain a cohesive, high-end appearance.
Prepare your under-sink workspace by clearing out storage items, placing a protective towel across the vanity floor, and having plumber's putty or silicone sealant ready for the drain flange installation.
