Moen Align Shower Trim: Matching Transfer and Main-Valve Controls

Inspect the existing rough-in valve behind the wall immediately before purchasing any new exterior components, as the hidden brass body dictates exactly which handle mechanism will fit. Forcing a modern handle onto an incompatible older valve body destroys the internal cartridge and results in active leaks behind the tile. The cylindrical, minimal aesthetic of the moen align shower trim requires specific mounting plates and handle adapters that only bolt onto matching Moen valve generations. If your current shower setup features both a primary temperature control and a secondary knob for a handheld wand, you must identify both internal valves to ensure the new exterior plates fit perfectly.

Many homeowners assume all trim kits are universal, leading to incorrect purchases and mid-project delays. The visible exterior metal is merely a cover for complex internal plumbing, meaning the mechanical function of your current setup governs your replacement options. Identifying whether your system controls just temperature or both temperature and volume saves you from buying hardware that physically cannot attach to your wall.

Operating Mechanics of the Primary Valve

The physical movement required to turn on the water reveals the exact type of main control hidden behind the wall. If the handle only rotates counterclockwise to increase temperature but does not pull outward, you have a standard pressure-balancing system that requires a specific trim adapter. Conversely, if you must pull the handle forward to start the flow and then twist it for temperature, you are dealing with a volume-control system. This functional difference means a moen align moentrol shower handle trim kit will never fit a standard pressure-balancing rough-in, as the internal stems require completely different rotational clearances.

Confirming the push-pull operation saves hours of frustration during the hardware swap. The internal brass stem of a volume-control valve features a threaded tip designed to accept a specific handle screw, while pressure-balancing stems use a distinct grooved pattern. Attempting to mix these components strips the plastic handle adapters immediately. The straight, geometric handle of the Align series amplifies any loose connections, making the correct internal adapter critical for a firm, responsive feel when adjusting the water temperature.

If you discover your valve is an older push-pull style, locating the exact replacement trim becomes highly specific. The brass stem must protrude from the wall at a very specific distance to engage the heavy metal handle properly. Modifying the internal stem or forcing a mismatched handle causes the internal seals to bind, which eventually leads to a continuous drip from the showerhead when the valve is supposed to be fully closed.

Coordinating the Secondary Transfer Control

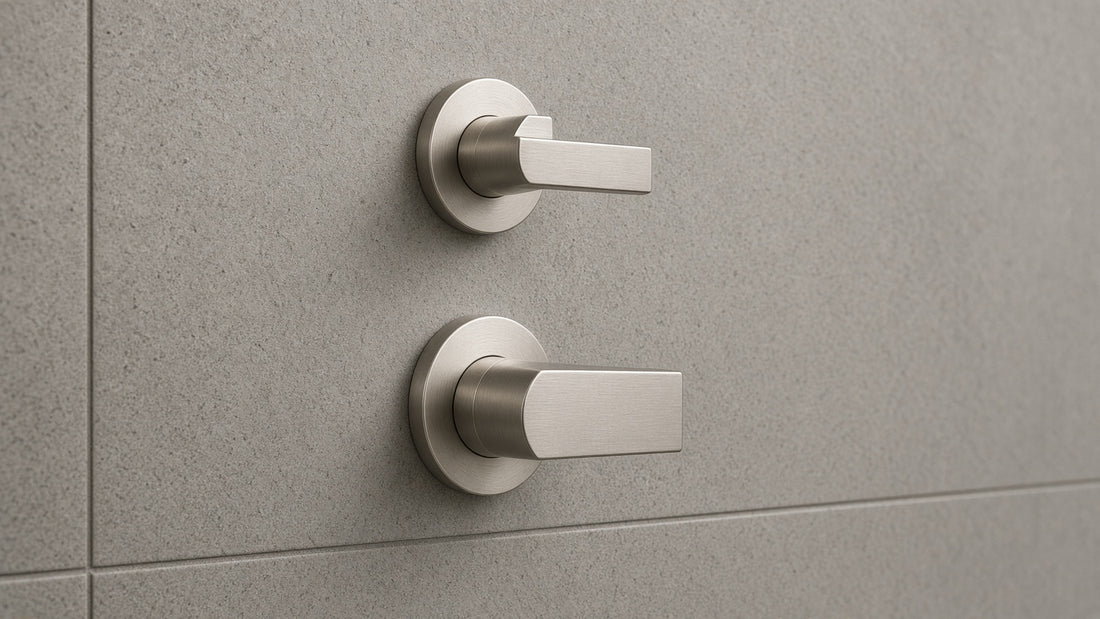

Showers featuring multiple spray outlets demand a secondary transfer valve positioned above the main temperature control. Installing a moen align shower trim with diverter requires matching the top handle to the exact brass transfer body installed in the wall. These transfer bodies typically feature either two independent functions or three shared functions, dictating how the water routes to the showerhead and handheld wands. The exterior trim kit must include the correct directional plate and handle adapter to match the internal cartridge detents.

Many people attempt to reuse the existing diverter cartridge while only changing the exterior metal handle. This approach fails if the new handle rotational limits clash with the old cartridge stops. The Align series utilizes a specific handle hub that slides over the diverter stem and locks with a set screw. If the stem protrudes too far from the wall, the handle will wobble and eventually strip the internal gearing. Measuring the distance from the finished tile to the tip of the diverter stem confirms if you need an extension kit or if the standard trim will sit flush against the plate.

Proper spacing between the main valve and the transfer valve also impacts the final visual presentation. Because the Align escutcheon plates are perfectly circular and flat, any discrepancy in the vertical alignment of the valves behind the wall becomes glaringly obvious. The trim plates will appear crooked or staggered if the plumber did not secure the brass bodies perfectly plumb during the initial rough-in phase.

Securing the Cylindrical Handle Hubs

The defining characteristic of the Align collection is the perfectly straight, cylindrical handle design. Attaching these heavy metal handles requires precise alignment of the internal set screws to ensure they do not loosen over time. The main temperature control handle, such as the one found in the moen align moentrol valve trim t3291, uses a recessed hex screw that bites into the plastic mounting adapter. Tightening this screw unevenly forces the handle off-center, causing it to scrape against the circular backing plate during operation.

Positioning the handle perfectly horizontal when the valve is in the off position requires careful adjustment of the splined adapter. The adapter features multiple fine teeth that allow you to clock the handle in tiny increments until it sits exactly level. Once aligned, tighten the set screw firmly, but avoid stripping the delicate hex head. The transfer valve handle installs using a similar method, but its smaller footprint requires even more attention to rotational alignment to match the directional icons on the diverter plate.

A loose handle often indicates that the set screw is gripping the rounded edge of the adapter rather than the flat indented section. Back the screw out entirely, remove the handle, and inspect the plastic adapter for deep gouges. If the plastic is deformed, the heavy metal lever will never stay tight, requiring a replacement adapter kit to restore a secure connection.

Managing Backing Plate Alignment

Modern shower trim relies on a tight seal between the circular metal backing plate and the finished tile wall to prevent water intrusion. The Align series plates feature a flat profile with a minimal lip, making them unforgiving on uneven tile surfaces. A gasket sits behind the plate, compressing against the wall as you tighten the two long mounting screws into the brass valve body. If the tile has significant lippage, the plate will bend, breaking the waterproof seal and creating a gap for moisture.

Applying a thin bead of clear silicone behind the top half of the plate provides secondary protection against water running down the tile. Leave the bottom edge free of sealant to allow any trapped moisture a clear exit path. When tightening the long mounting screws, alternate between the left and right sides to draw the plate evenly against the wall. Driving one screw completely tight before starting the second binds the internal plastic sleeve and warps the exterior metal finish.

The depth of the brass valve within the wall cavity directly affects how the backing plate mounts. If the valve is buried too deep behind thick stone or custom tile, the standard mounting screws will not reach the threaded holes in the brass body. Conversely, a valve mounted too shallow forces the plate away from the wall, exposing the rough plumbing gap. Measuring this depth dictates whether you need thick escutcheon extensions or longer mounting hardware.

Calibrating Temperature Limits

Every modern primary shower valve features an adjustable temperature limit stop to prevent scalding. This physical barrier stops the handle from rotating into the maximum hot water zone. When installing new exterior hardware, you must recalibrate this limit stop based on your current water heater output. The stop consists of two interlocking plastic rings located just behind the handle adapter.

Testing the maximum water temperature with a thermometer ensures the output stays within safe residential limits, typically around 120 degrees Fahrenheit. Rotate the front plastic ring to physically block the handle from turning further left once the desired maximum temperature is reached. Replacing the old trim often disturbs this setting, making recalibration mandatory before finishing the installation. The heavy metal handle of the Align series generates significant rotational torque, meaning the limit stop must be locked firmly in place to withstand daily use.

Failing to set this limit stop correctly poses a severe risk, especially in homes with older water heaters that fluctuate in output. The adjustment process takes less than five minutes but ensures the shower operates within safe parameters regardless of who turns the handle. Once the stop is locked, slide the metal sleeve over the cartridge to conceal the plastic rings before mounting the primary backing plate.

Successfully installing this modern, cylindrical hardware requires strict attention to the operational mechanics of the existing brass valves behind the wall. Matching the push-pull or rotational movement determines the exact trim compatibility, preventing stripped adapters and wobbly handles. Correctly clocking the splined hubs ensures the heavy metal levers sit perfectly horizontal, while careful plate installation prevents water intrusion behind the tile.
