Moen Brantford Bathroom Faucets: Match the Layout to Your Sink

To match a Moen Brantford bathroom faucet to your sink layout, you must count the existing holes in your vanity deck and measure the exact distance between their centers. This initial assessment completely dictates your hardware options. Forcing a wide layout into a compact sink drilling simply fails, as the heavy brass valve bodies cannot be modified to fit an incorrect hole pattern.

Inspecting the raw drillings beneath the basin provides the only accurate information about your setup. Homeowners frequently misjudge their sink type because a wide metal base plate on the old fixture completely hides the unused holes. Confirming the physical holes drilled into the ceramic or stone tells you exactly which configuration you must order to secure a watertight fit.

Identifying Existing Hole Configurations

Look directly underneath the vanity top using a flashlight to count the exposed metal shanks dropping through the material. A typical residential configuration features either one, two, or three distinct holes cut through the deck. The physical gap between the farthest two holes limits your upgrade options, as the rigid brass housing of the new hardware requires specific tolerances.

Measure from the absolute center of the far-left hole to the absolute center of the far-right hole. If that distance reads exactly four inches, you have a standard centerset layout. If the tape measure indicates anywhere from eight to sixteen inches between the outer openings, you possess a widespread configuration. Recording this exact dimension prevents purchasing a fixture that cannot pass through the countertop.

Custom stone surfaces occasionally present irregular hole spacing created by an independent fabricator. If your measurements fail to align with standard four-inch or eight-inch dimensions, you must rely on a widespread fixture using flexible connection hoses to bridge these non-standard gaps.

Working With Four Inch Centerset Layouts

The centerset version of the Moen Brantford bathroom faucet merges the main spout and both lever handles onto a single metal base. This solid construction drops into a four-inch sink drilling, requiring two outer holes for water lines while the center hole accepts the drain rod. This unified block simplifies the alignment task because the spacing between the handles remains permanently fixed.

Installing this compact hardware demands minimal space underneath the counter because the internal water mixing happens above the sink deck. You simply route the hot and cold supply lines up to the two rigid shanks protruding downward. This specific layout maximizes the usable storage space inside your vanity cabinet by eliminating crossover hoses between independent valves.

Securing the centerset model involves tightening mounting nuts onto the threaded shanks directly from below. You must apply even pressure on both sides to pull the long metal base perfectly flush against the sink deck. Using the provided foam gasket or a thin bead of plumber's putty seals the outer perimeter, stopping splashed water from reaching the wooden cabinet below.

Accommodating Widespread Eight Inch Spacing

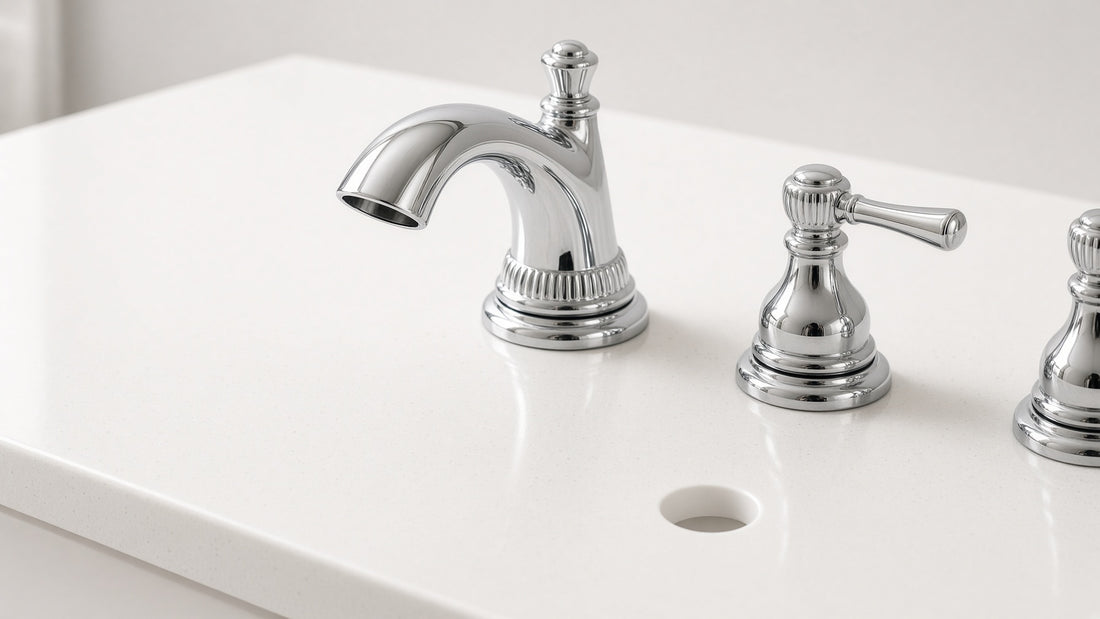

Widespread designs separate the hot valve, the cold valve, and the spout into three independent brass components. Selecting this layout requires ample space across the top of your sink deck to turn both handles without striking the central spout base. This configuration performs best on larger vanity tops where the heavy traditional elements balance the broader surface area.

The mechanics of a widespread layout rely on a specialized crossover hose assembly located under the counter. This quick-connect plastic manifold snaps onto the bottom of the hot and cold valves, routing the mixed water into the spout. You must ensure the cabinet interior provides sufficient vertical clearance for these hoses to curve gently without kinking or resting heavily on stored items.

Addressing Single Hole Vanity Tops

Modern vanities often arrive featuring just one central hole drilled through the ceramic material. Adapting the traditional Brantford aesthetic to this minimalist layout requires choosing the single-handle variant, which houses the internal mixing cartridge inside a unified spout body. This tall column consumes significantly less deck space while delivering the classic architectural curves associated with the collection.

Dropping a single-handle fixture through one hole simplifies the under-sink connections entirely. Both the hot and cold flexible lines exit from the singular central shank, routing straight down to the wall stops. You must verify that the sink hole has a large enough diameter to accept both hoses and the threaded mounting hardware simultaneously without binding.

Stabilizing a tall single-handle unit relies entirely on one central mounting bracket clamping against the underside of the deck. A heavy brass fixture acts as a long lever, and any looseness in that central nut causes the entire faucet to wobble heavily during use. Applying firm, even torque to the hardware ensures the base remains anchored against the slippery ceramic surface.

Evaluating Escutcheon Plate Deck Coverage

Transitioning from an older three-hole setup to a single-handle fixture requires deploying an escutcheon plate, commonly referred to as a deck plate. This wide metal base slides over the central shank and sits flat on the sink, completely hiding the unused outer holes. The Brantford collection includes corresponding deck plates that mirror the traditional curves of the main fixture body.

You must measure the total width spanning the three existing holes and compare it against the specifications of the deck plate. The plate must overhang the outer holes by a minimum of a half-inch on all sides to create a reliable watertight seal against the sink material. If the plate barely covers the drillings, splashed surface water will inevitably seep into the vanity.

Confirming Valve and Drain Assembly Match

Finishing the installation requires swapping out the pop-up drain assembly seated in the bottom of the ceramic basin. The Moen Brantford bathroom faucet package includes a matching drain, which must integrate correctly with the internal overflow channels cast into your specific sink. Inspect your ceramic bowl to determine if it has a small overflow hole near the upper rim.

Drains engineered for overflow sinks feature rectangular windows cut into the side of the threaded brass tube. These openings allow rising water to escape down the overflow channel and enter the main drain pipe. Installing a solid drain body without these windows in an overflow sink causes water to become trapped inside the ceramic walls, creating stagnant odors.

Successfully installing a Moen Brantford bathroom faucet demands matching the physical hardware directly to the existing holes drilled into your sink deck. Verifying the four-inch or eight-inch spacing dictates whether you need a centerset or widespread model, while utilizing an escutcheon plate allows single-handle variants to cover older three-hole setups. Confirming these critical dimensions before purchase prevents installation roadblocks and ensures the hardware mounts securely.
