Moen Shower System With Slide Bar: Placement and Connection Guide

Avoiding Drilling Into Hidden Wall Pipes

Drilling straight into a hidden water supply pipe behind the tile ranks as the single most common catastrophic mistake when mounting a Moen shower system with slide bar. Installers frequently focus so heavily on the visual alignment of the vertical rail that they forget half-inch copper lines run directly vertically from the mixing valve to the primary showerhead. Puncturing a pressurized water line behind a finished wall immediately destroys the tile installation and requires emergency plumbing repairs.

Mapping out the internal plumbing routes before picking up a drill bit prevents this disaster. Use a reliable stud finder with pipe detection capabilities or carefully trace the logical path of the existing valve outputs. Plumbers typically route the vertical riser exactly dead center above the temperature control handle, meaning placing the vertical rail slightly off-center provides a much safer mounting zone.

Maintaining a minimum lateral clearance of three to four inches from the primary valve centerline usually clears the hidden riser. Always cross-reference your planned drill marks against the technical diagram of the rough-in valve hidden behind the wall. Taking ten extra minutes to confirm empty wall cavities saves days of expensive demolition and water damage restoration.

Establishing Ergonomic Height and Positioning

Determining the ideal vertical placement requires accounting for the height of the tallest and shortest primary users in the household. Standard residential installations usually position the center of the vertical rail somewhere between sixty and seventy-two inches above the floor. This general range allows the adjustable bracket to accommodate tall adults while dropping low enough for seated bathers or children to reach the handle comfortably.

Evaluating the clearance for the flexible hose represents another critical positioning factor. If the bottom mounting post sits too low on the wall, the metal hose will drag on the basin floor or tangle around the main temperature control handle. The hose needs enough physical room to form a natural U-shape drape without kinking or creating tripping hazards during daily operation.

Holding the entire physical rail assembly against the dry tile with masking tape allows you to test the setup before committing to permanent holes. Move the bracket up and down the full length of the track to verify the spray angle hits the intended target zones. Adjust the tape placement until the mechanical action feels natural and unobstructed for everyone utilizing the space.

Anchoring Securely to Wall Materials

Supporting the physical weight of the hardware plus the dynamic pulling force of a user adjusting the bracket demands solid structural anchoring. Relying solely on standard plastic drywall anchors pushed through hollow cement board almost guarantees the entire rail will eventually pull away from the wall. The constant sliding friction and the torque applied when tilting the heavy wand create significant mechanical stress on the two attachment points.

Locating a solid wooden stud provides the most secure foundation for mounting the top and bottom posts. If the structural framing does not align with your preferred placement, utilizing heavy-duty toggle bolts specifically rated for wet environments becomes strictly necessary. These specialized metal anchors flare out behind the backer board, distributing the load across a much wider physical area than friction-fit plastic plugs.

Penetrating the finished surface requires specific drill bits matched to the exact hardness of your bathroom cladding. Porcelain tile requires specialized diamond-tipped hole saws driven at low RPMs with constant water cooling to prevent thermal cracking. Ceramic and natural stone are softer but still demand careful, steady pressure without using the hammer function on your drill.

Managing the Flexible Hose Drop Connection

Connecting the primary water source to the handheld wand involves installing a wall drop ell fitting, which acts as the physical bridge between hidden pipes and the exposed hose. This brass component must thread onto a threaded pipe nipple extending precisely past the finished tile surface. Calculating the exact length of this internal nipple prevents the drop ell from sitting too far off the wall or failing to engage the threads entirely.

Applying proper thread sealant ensures this transition point remains watertight under constant municipal pressure. Wrap PTFE tape clockwise around the male threads, followed by a light application of non-hardening pipe joint compound. Thread the drop ell component by hand until tight, then use a strap wrench for the final rotation to avoid marring the finished metal surface.

Routing the flexible metal or synthetic hose from this wall connection to the sliding bracket requires attention to the integrated rubber washers. Failing to seat these thin gaskets properly inside the hexagonal hose nuts creates an immediate and persistent leak. Hand-tightening these connections usually provides enough compression to seal the joint, as heavy wrenches can easily crush the internal rubber seals.

Testing the Slider Mechanism and Tension

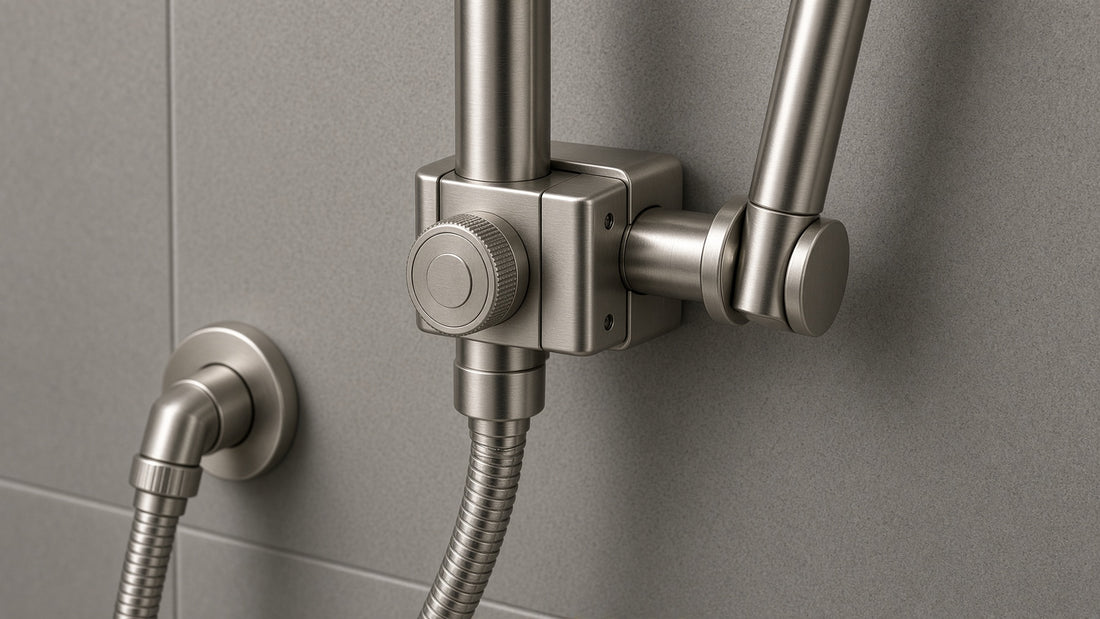

Operating the adjustable bracket should feel smooth and controlled without slipping under the weight of the attached water wand. Most rails utilize a friction-based locking mechanism controlled by a physical button or a rotating knob on the side of the bracket. If the holder slides downward unexpectedly when the water turns on, the internal tension requires immediate mechanical adjustment.

Many designs feature a hidden set screw or internal tension dial located beneath a decorative cap on the sliding carriage. Tightening this internal component increases the friction against the vertical bar, locking the heavy spray head firmly in place. Referencing the included technical specification sheet for your exact unit reveals the location and required tool for adjusting this internal clamping force.

Cleaning the vertical track thoroughly after installation prevents construction dust and drilling debris from binding the sliding mechanisms. Wipe the entire length of the metal bar with a damp microfiber cloth to remove any residual grit. Operating the carriage up and down several times confirms the track is clear and the locking mechanism engages securely at every position.

Integrating With Primary Shower Controls

Coordinating the water delivery to the secondary rail fixture relies entirely on the transfer valve installed inside the wall. A Moen shower system with slide bar typically connects to a two-function or three-function diverter to isolate or share the available water pressure. Ensuring the external diverter handle points to the correct logical icon on the trim plate prevents confusion during daily operation.

Activating the main water supply requires checking all external and internal connections for minute weeping or active spraying. Turn the diverter to isolate the rail fixture, maximizing the pressure running through the drop ell and the flexible hose. Run the water continuously for five minutes while holding a dry tissue paper against the drop ell base and the hose joints to detect microscopic moisture.

Balancing the flow between an overhead fixed head and the sliding rail often requires understanding your specific cartridge capabilities. If sharing the flow results in a severely compromised output, the system may be encountering a flow restrictor conflict or a general home pressure limitation. Removing debris from the small inlet screen at the base of the handheld wand frequently resolves sudden pressure drops after initial construction.
