Separate Temperature and Volume Controls in a Shower: What Is Required?

Identifying the Core Plumbing Problem

"The water hits me like a pressure washer, but if I try to turn the flow down, the handle rotates into the freezing zone." This common symptom points to the fundamental limitation of standard single-handle pressure-balancing fixtures. Standard residential plumbing relies on a single cartridge moving in a diagonal or circular path, directly linking the volume of water to the specific heat setting. Turning the water completely on forces you to accept whatever flow rate that specific mechanical position dictates.

Achieving independent control over how hard the water sprays and how hot it feels requires completely different hardware behind the wall. A shower valve with temperature and volume control operates using a dual-function mechanism, isolating the mechanical actions into distinct operations. One control dictates the exact degree of heat, while an entirely separate dial or lever manages the physical force of the output.

Moving away from the linked single-handle design means physically replacing the brass housing buried behind your cement board. You cannot simply attach a new two-handle trim plate onto a standard pressure-balancing rough valve, as the internal water ports and cartridge dimensions do not align. Fixing this issue demands a structural hardware change, not just a cosmetic exterior update.

Understanding Thermostatic Valve Mechanics

Isolating the two functions requires installing a thermostatic rough valve into the wall cavity. Inside this heavy brass body, a specialized wax or bimetallic element constantly reacts to the incoming hot and cold water supplies. As the municipal pressure fluctuates from other appliances running in the house, this internal element physically expands and contracts, instantly adjusting the mixing ratio to maintain a stable, precise output.

Because the thermostatic cartridge handles the heat mixing entirely on its own, the secondary component focuses exclusively on regulating flow. The shower valve with volume control utilizes a separate ceramic disc cartridge that opens and closes the water exit ports. This mechanical separation allows you to leave the heat dial set to your exact preference day after day, only interacting with the volume handle to initiate and adjust the water pressure.

Upgrading to this dual-cartridge system requires significant plumbing modifications if you are retrofitting an older bathroom. The wall cavity must accommodate a physically larger brass housing, which often demands expanding the original access hole through the tile and backer board. Ensure your wall depth can physically accept this larger hardware block before cutting into the existing drywall.

Matching the Rough Valve and Trim

Securing a functional setup requires purchasing both the internal brass housing and the external decorative trim as a matched set. Manufacturers engineer their dual-function trims to mate specifically with their proprietary thermostatic cartridges. A handle designed for a standard unit lacks the internal mechanical splines needed to turn the separate flow and heat stems independently.

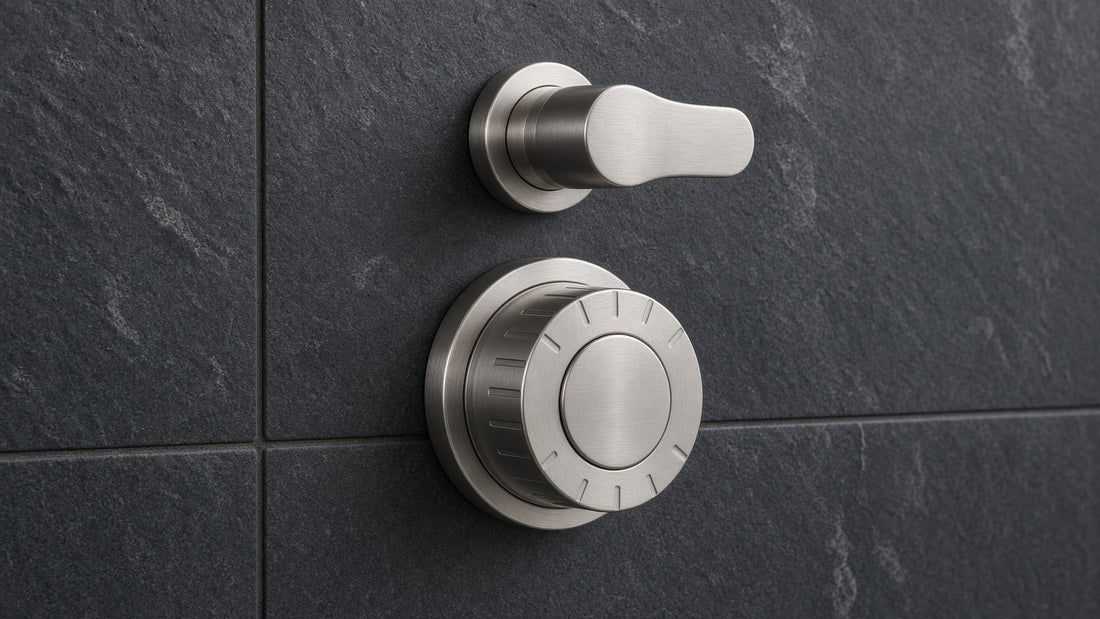

The external trim typically features a concentric design, placing a smaller dial stacked on top of a larger base handle, or a stacked vertical layout with two entirely separate knobs. When planning the installation, calculate the exact depth of the rough valve relative to the final finished tile surface. If the brass body sits too far back in the wall cavity, the intricate dual handles will not physically engage the hidden splines.

Always utilize the plastic plaster ground included in the box during the initial pipe soldering phase. This temporary guard acts as a physical template, indicating the precise minimum and maximum wall depth required for the external trim to operate correctly. Ignoring this depth guide frequently leads to trim plates that refuse to sit flush against the finished tile or handles that scrape against the metal escutcheon.

Installing an Inline Flow Restrictor

Replacing the entire internal wall unit is not the only method for gaining independent flow manipulation. Adding a shower arm volume control valve provides a highly effective external solution without requiring major tile demolition or copper pipe soldering. This small brass fitting installs directly between the threaded pipe protruding from the wall and the actual spray head.

Operating this external attachment involves turning a small lever or sliding a small pin located right behind the water outlet. Turning the lever manually restricts the physical pathway of the water before it reaches the nozzles, allowing you to reduce a harsh blast down to a gentle trickle while maintaining the exact heat set at the main wall handle.

Installing this external component requires nothing more than locking pliers, a standard wrench, and fresh thread sealant tape. It offers a practical workaround for renters or homeowners avoiding immediate structural renovations, delivering independent pressure management for a fraction of the heavy hardware cost. Ensure you purchase a fitting with matching half-inch standard pipe threads to avoid cross-threading the fixture.

Managing Water Supply Line Requirements

Upgrading to a multi-handle thermostatic unit frequently changes the baseline hydraulic demands placed on your residential pipes. Standard single-handle units typically function adequately on standard half-inch copper or PEX tubing. However, high-capacity dual-function valves often feature three-quarter-inch inlet ports to support the increased flow rates possible when restrictions are fully removed.

Connecting a high-capacity shower volume control valve to restrictive half-inch supply lines can create severe performance bottlenecks. If the brass housing is rated to output fourteen gallons per minute, feeding it through small-diameter pipes causes noticeable pressure drops, especially if someone flushes a toilet elsewhere in the house. The internal diameter of PEX tubing is even smaller than copper, compounding this hydraulic restriction.

Review the technical specification sheet for your specific trim and valve combination to determine the exact pipe sizing requirements. Adapting three-quarter-inch inlets down to half-inch pipes should only be done after verifying the maximum flow output of your chosen spray fixtures. Planning your internal plumbing diameter backwards from the intended fixtures ensures the finished enclosure delivers sufficient hydraulic force to all active outlets.

Calibrating the Temperature Limit Stop

Thermostatic valves incorporate a crucial safety mechanism designed to prevent accidental scalding, which requires manual calibration during the final trim installation. The internal cartridge features a rotational limit stop, usually a plastic ring with gear-like teeth, which physically blocks the heat dial from turning past a certain point. Out of the box, this ring is set to a conservative factory default.

Setting this safety limit requires a digital thermometer and access to the main hot water heater settings. Run the water continuously for a few minutes, turn the heat handle to its maximum allowed position, and measure the output. The industry standard recommends setting this physical limit stop so the water never exceeds 120 degrees Fahrenheit to prevent serious skin burns.

Adjusting the ring involves pulling it completely off the cartridge splines, rotating it a few notches counterclockwise to allow more hot water, and pushing it back into place. Failing to calibrate this ring explains why many newly installed thermostatic systems seem incapable of delivering hot water, despite the basement water heater functioning perfectly.

Verifying System Compatibility Before Plastering

Testing the newly soldered connections and the cartridge operations while the wall framing remains exposed is a mandatory procedural step. Leaving the system under static pressure for a few hours exposes any microscopic weeping at the copper joints or threaded adapters. A slow leak originating from the flow control cartridge will eventually destroy the structural integrity of the surrounding wood studs.

Activating the water and testing the independent handle actions confirms the plumbing lines were routed to the correct inlet ports. Reversing the hot and cold supply lines into a thermostatic valve completely disables the internal wax element, resulting in wildly erratic output that fluctuates violently between freezing and boiling. Use a flashlight to inspect the back of every fitting while the system runs to catch slow drips.
