Which Moen Rough-In Valve to Buy: Posi-Temp, M-CORE, Moentrol and PEX vs CC/IPS

Someone flushes the toilet down the hall, and your relaxing morning shower instantly turns into an unbearable blast of freezing liquid. That jarring temperature drop signals a failure or absence of a modern moen mixing valve hidden behind the tiled wall. Homeowners often stare at the exterior handle, assuming a new trim kit will solve the issue, but the real mechanical heavy lifting happens inside the brass block anchored to the studs. Identifying what type of valve body sits behind the drywall dictates exactly which exterior parts you can install and how your shower will respond to household pressure changes.

Replacing an aging plumbing setup requires a fundamental grasp of how different valve families operate. You cannot simply grab any moen rough in valve off the shelf and expect it to mate with your existing copper or plastic supply lines. Understanding the distinct operational platforms ensures you purchase a brass body that fits your pipe layout and delivers the exact water control you want on a daily basis.

Evaluating Core Mechanical Functions

Every moen shower valve acts as the central command hub for a bathing enclosure, mixing raw hot and cold supplies into a comfortable output stream. Older two-handle systems utilized separate stems for each temperature, forcing users to manually balance the flow every single time they stepped inside. Modern single-handle assemblies streamline this process by using a specialized internal cartridge that handles both volume and temperature regulation simultaneously.

The brass housing itself remains permanently fixed to the wooden wall framing, while the internal plastic and rubber cartridge handles the actual mechanical friction. This separation of housing and moving parts means you can repair drips or stiff handles later by swapping the cartridge without ripping open the drywall. Your initial choice of valve platform determines which specific family of cartridges and exterior trims you will be locked into for the lifespan of that bathroom.

Choosing between the main platforms boils down to evaluating how much control you want over the water output. Some bodies only offer standard temperature balancing, while others let you dial back the volume to a trickle without altering the heat setting. Reviewing these mechanical limits before finalizing your plumbing plan prevents disappointment when you finally turn the lever for the first time.

Posi Temp Pressure Balancing Mechanics

The Posi-Temp platform stands as the most common residential installation for standard tub and shower combinations. This specific brass body relies on a pressure-balancing spool located inside its 1222 cartridge, which reacts instantly to pressure drops on either the hot or cold supply side. If a washing machine pulls a heavy load of cold water, the spool shifts to restrict the opposing hot side proportionally, keeping the shower output temperature constant.

Operating a Posi-Temp handle is a highly straightforward process. Rotating the lever counterclockwise turns the water on at full volume immediately, while further rotation increases the temperature output. You cannot adjust the water flow rate with this specific platform; it operates strictly on a full-on or full-off basis. This simplicity makes it highly reliable and extremely popular for guest bathrooms or rental properties where complex controls might confuse users.

Builders often prefer these moen shower valves for quick residential rough-ins because of their predictable dimensions and massive availability of compatible trim styles. You will find that nearly every design collection offers a Posi-Temp compatible trim kit, giving you extensive aesthetic options. The brass body includes a temperature limit stop, a small plastic ring that installers can adjust to physically prevent the handle from rotating into the scalding range.

M CORE Universal Valve Capabilities

The M-CORE system represents a newer, universal approach to in-wall plumbing installations. Instead of forcing you to choose a specific functional platform during the rough-in phase, this universal brass body accepts multiple different cartridge types. Installers can solder the valve into the wall early in the construction process, leaving the final decision regarding functionality and trim style for much later in the project timeline.

This flexibility proves incredibly useful during extensive remodels where design choices frequently change mid-stream. If you initially plan for basic pressure balancing but later decide you want independent volume control, you simply install the corresponding M-CORE cartridge. The system accepts Series 2 cartridges for basic temperature control and Series 3 cartridges for independent volume and heat adjustments, all utilizing the exact same brass housing.

Mounting trims to this platform also differs significantly from older designs. M-CORE bodies utilize an integrated mounting bracket that allows escutcheon plates to snap into place without any visible faceplate screws. This structural shift creates a highly contemporary, minimalist appearance on the finished shower wall. The bracket also provides greater depth tolerance, forgiving minor miscalculations in tile or mortar thickness.

Moentrol Volume Control Operations

The Moentrol platform caters to homeowners who demand absolute control over their bathing experience. Unlike basic pressure-balancing systems, this valve allows you to adjust the water volume and the temperature completely independently. You pull the handle outward to start the flow and adjust the pressure, then rotate it left or right to dial in the exact heat level.

This independent control mechanism relies on a more complex internal brass architecture and a specialized 1225 cartridge. You can reduce the water flow to a slight trickle while lathering soap, maintaining the exact same temperature setting for when you resume full pressure. This capability saves significant amounts of water during longer showers and provides a highly customized user experience that standard on-off valves cannot replicate.

Because of the dual-action mechanical requirements, Moentrol valves require specific exterior trim kits that accommodate the pull-push and rotational movements. You cannot install a Posi-Temp trim onto a Moentrol body, as the internal stems and faceplate screw locations do not align. Identifying a Moentrol setup usually involves looking at the escutcheon plate screws, which sit at the bottom rather than diagonally.

Traditional Copper and Threaded Interfaces

Selecting the correct mechanical platform only solves half the puzzle; you must also match the valve's connection ports to your home's physical piping. CC or Copper Sweat connections represent the traditional plumbing standard, requiring a torch, flux, and solder to bond copper pipes directly inside the brass valve ports. This creates an incredibly strong, permanent joint but demands significant skill to execute safely inside a combustible wooden wall cavity.

IPS or Iron Pipe Size connections utilize female threading inside the valve ports, allowing you to screw threaded male pipe fittings directly into the body. Plumbers wrap the male threads in Teflon tape or pipe dope to create a watertight seal before wrenching them into place. Threaded connections provide excellent flexibility, as you can easily transition from the brass body to various pipe materials using the appropriate threaded adapters without ever lighting a torch.

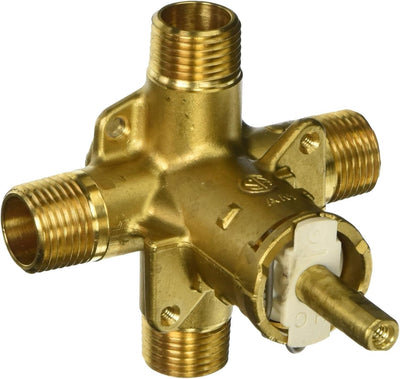

Many rough-in bodies feature hybrid CC/IPS ports, accommodating both soldering and threading on the exact same unit. The inside of the port accepts half-inch copper pipe for sweating, while the outside of the port features male threads for IPS fittings. This hybrid approach gives installers the freedom to choose their preferred connection method on the job site based on the available tools and working clearances.

Modern Plastic Piping Connection Standards

New construction and extensive remodels frequently abandon rigid copper in favor of flexible cross-linked polyethylene tubing. A dedicated moen pex shower valve comes factory-equipped with specific ports designed to accept these plastic lines directly, eliminating the need for separate threaded transition adapters. This direct connection minimizes the total number of joints behind the wall, reducing the statistical likelihood of future hidden leaks.

The expansion method has gained massive popularity among professional plumbers due to its flow characteristics. A moen cold expansion pex valve features specialized PEX-A expansion ports. Installers use an expansion tool to temporarily stretch the plastic tubing and a reinforcing ring before sliding them over the slightly larger brass fitting. As the plastic's shape memory takes over, it shrinks tightly around the port, creating an incredibly secure, full-flow connection that actually strengthens over time.

Other variants exist for standard PEX-B crimp ring systems, featuring ribbed brass ports that accept the pipe and a copper or stainless steel compression band. You must visually inspect your existing plastic piping to verify its exact type, as PEX-A expansion fittings are completely incompatible with PEX-B crimp tools. Buying a valve with the exact matched ports saves hours of labor and ensures a secure, code-compliant plumbing layout.

Finalizing Your Plumbing Infrastructure

Selecting the right mixing hub requires aligning your functional desires with the physical realities of your home's infrastructure. You must decide if basic pressure balancing fits your daily routine, if you require the independent volume manipulation of a dual-action system, or if a universal mounting block provides the safest route for a developing remodel.

The exact brass body you install permanently dictates your future options for exterior hardware upgrades and replacement cartridges. Properly matching the connection ports ensures a secure installation that will resist leaks for decades behind your bathroom tile. Resolving these mechanical details first guarantees that the exterior trim plate you eventually mount will operate flawlessly every single morning.
