Model #: 6401ORB
Bathroom Faucets

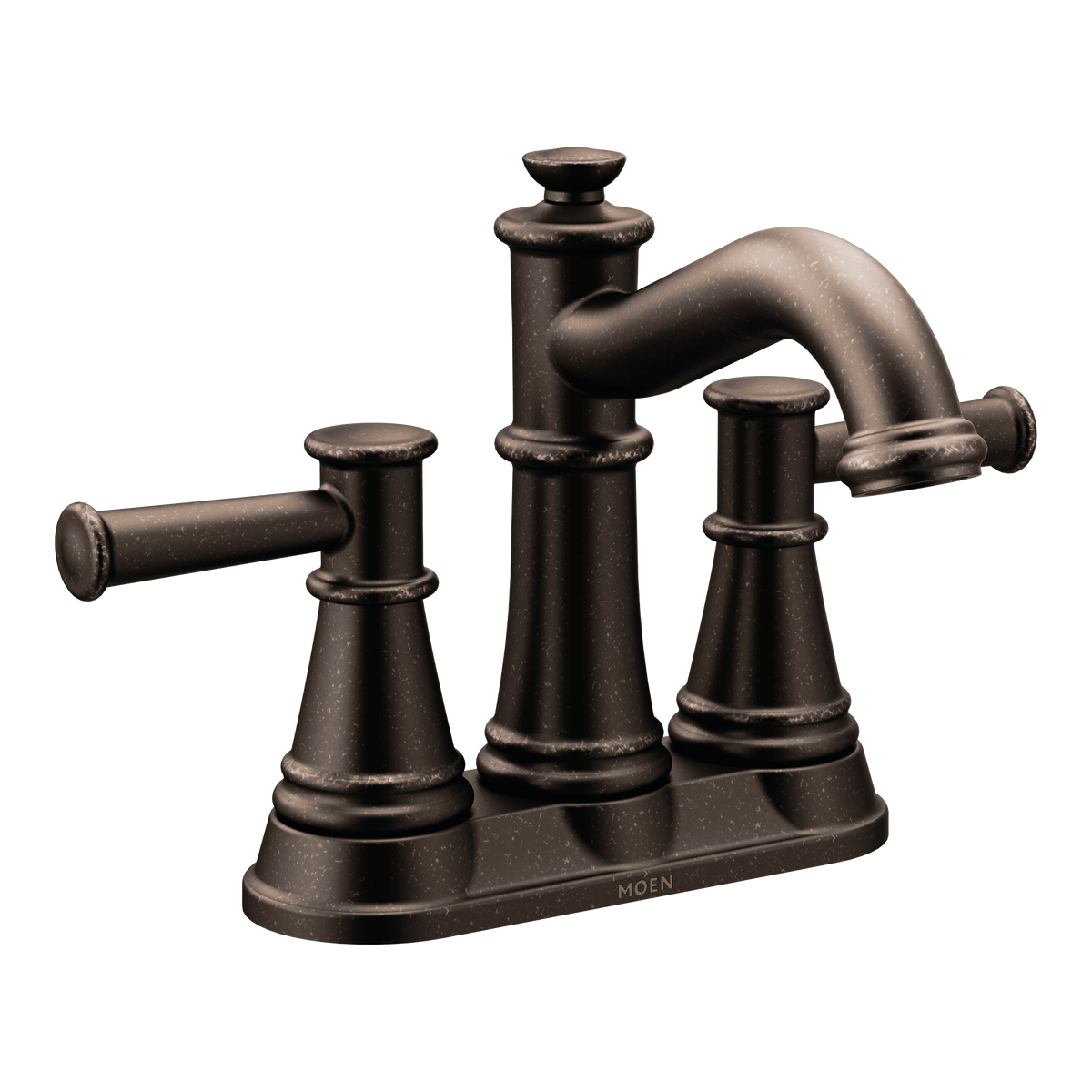

Moen 6401ORB Belfield Oil Rubbed Bronze Two-Handle High Arc Bathroom Faucet
1 in stock
Couldn't load pickup availability
Free US shipping · Ships next business day · Arrives in 3–6 business days
- Free US shipping
- Ships in 1 business day
- 30-day returns
- Secure checkout
Description
The Moen 6401ORB is a Belfield two-handle high arc bathroom sink faucet in an Oil Rubbed Bronze finish. It is a 4" centerset faucet that installs through three holes, 1" minimum diameter, in a sink or countertop deck. It suits both replacement of an existing three-hole centerset faucet and a traditional-style bathroom remodel.
Key features
- Belfield collection with Williamsburg-era details and traditional styling
- Two lever handles with 90° rotation to full on
- 4" centerset, two-handle three-hole installation
- High arc spout
- Oil Rubbed Bronze finish
- Metal pop-up waste assembly included
What's in the box
- Metal pop-up waste assembly
Compatibility
Fits a bathroom sink or deck with three holes, 1" (25mm) minimum diameter, in a 4" centerset layout. Deck thickness: 5/16" (8mm) minimum to 1-3/16" (30mm) maximum. Supply connections are 1/2" IPS (1/2" NPT hot and cold).
Specifications
| Brand | Moen |
|---|---|
| Model | 6401ORB |
| Collection | Belfield |
| Finish | Oil Rubbed Bronze |
| Product type | Bathroom Faucets |
| Faucet type | Two-handle high arc 4" centerset bathroom sink faucet |
| Handles | Two lever handles |
| Mounting | Three-hole installation, 1" (25mm) min. hole diameter |
| Deck thickness | 5/16" (8mm) min., 1-3/16" (30mm) max. |
| Connections | 1/2" IPS |
| Flow rate | 1.2 gpm max (4.5 L/min) at 60 psi |
| Cartridge | 1234 cartridge |
| Construction | Metal construction |
| Drain | Metal pop-up waste assembly included |
| Certifications | WaterSense; ASME A112.18.1/CSA B125.1; NSF 61/9 & 372; ADA for lever handles; compliant with California water efficiency regulations |
Manufacturer specification sheet: Moen 6401ORB specifications (PDF)
Specifications
| Brand | Moen |
|---|---|
| Model number | 6401ORB |
| Product type | Bathroom Faucets |
| Condition | New |
| UPC | 026508275351 |
