Model #: T2132ORB
Tub & Shower Trim
Moen T2132ORB Eva Oil Rubbed Bronze Posi-Temp Shower Only Trim
1 in stock
Couldn't load pickup availability
$8 US shipping (free on items $100+) · Ships next business day · Arrives in 3–6 business days
- $8 US shipping · free only on items $100+
- Ships in 1 business day
- 30-day returns
- Secure checkout
Description
Valve required, sold separately. This is a trim kit (the visible handle, plate and fixtures). It installs on a Moen Posi-Temp pressure-balancing rough-in valve, which is not included. Before ordering, make sure a compatible Moen Posi-Temp rough-in valve is already installed, or order one separately.

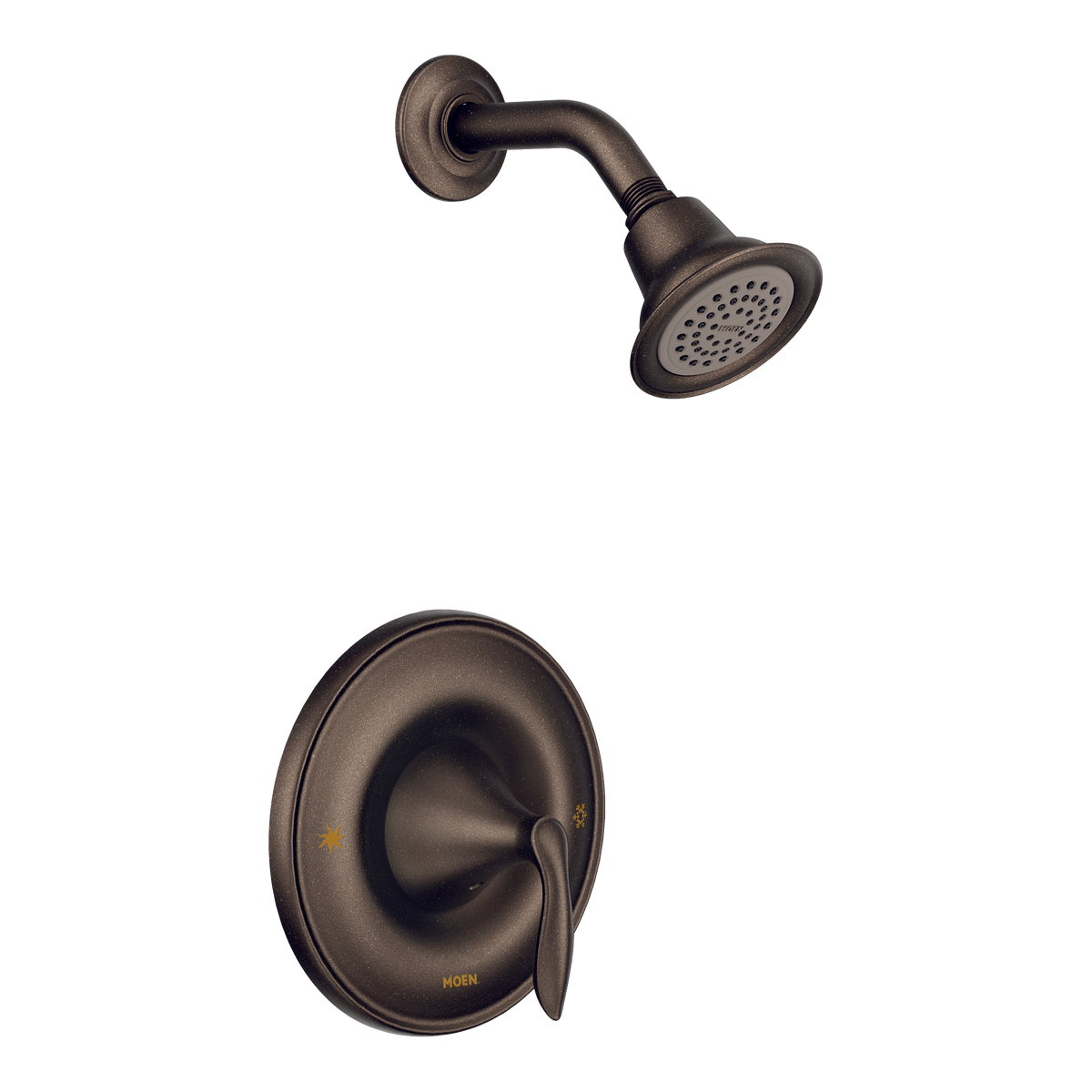

The Moen T2132ORB is an Eva Posi-Temp single-handle shower-only trim kit in Oil Rubbed Bronze. It mounts on the wall over a Moen Posi-Temp rough-in valve in a shower. It suits replacing an existing Moen Posi-Temp trim or finishing a shower during a remodel.
Key features
- Eva collection Transitional design with flowing curves and petal-like handle styling
- Single-handle Posi-Temp pressure balancing control maintains selected discharge temperature to ± 3°
- Adjustable temperature limit stop to control maximum hot water temperature
- Metal construction in Oil Rubbed Bronze finish
- Showerhead limited to 2.5 gpm (9.5 L/min) at 80 psi
- M-Pact system; 1222 cartridge accommodates back to back installations
What's in the box
- Showerhead
- Shower arm
- Flange
Compatibility
This is a trim kit only and requires a Moen Posi-Temp rough-in valve, sold separately. Valves: 62300 series, 2500 series (M-Pact system).
Specifications
| Brand | Moen |
|---|---|
| Model | T2132ORB |
| Collection | Eva |
| Finish | Oil Rubbed Bronze |
| Product type | Tub & Shower Trim (shower only trim kit) |
| Valve technology | Posi-Temp pressure balancing, M-Pact system |
| Compatible valves | 62300 series, 2500 series (sold separately) |
| Handles | Single handle |
| Mounting | Wall mount |
| Handle operation | Counterclockwise through a 270° arc, off at 6 o'clock, maximum hot at 9 o'clock |
| Escutcheon diameter | 7" (178mm) |
| Flow rate | 2.5 gpm (9.5 L/min) at 80 psi |
| Cartridge | 1222 cartridge; nonmetallic/nonferrous and stainless steel materials |
| Construction | Metal |
| Certifications | Third party certified to meet ASME A112.18.1/CSA B125.1; ADA for lever handle |
Manufacturer specification sheet: Moen T2132ORB specifications (PDF)
Specifications
| Brand | Moen |
|---|---|
| Model number | T2132ORB |
| Product type | Tub & Shower Trim |
| Valve platform | Moen Posi-Temp (pressure-balancing) |
| Condition | New |
| UPC | 026508153277 |
Compatibility
This is a trim kit: the handle and visible parts that mount on the wall. It installs over a Moen Posi-Temp rough-in valve, which is sold separately. Not sure which valve is in your wall? How to tell Moen Posi-Temp, M-CORE and M-PACT valves apart.
