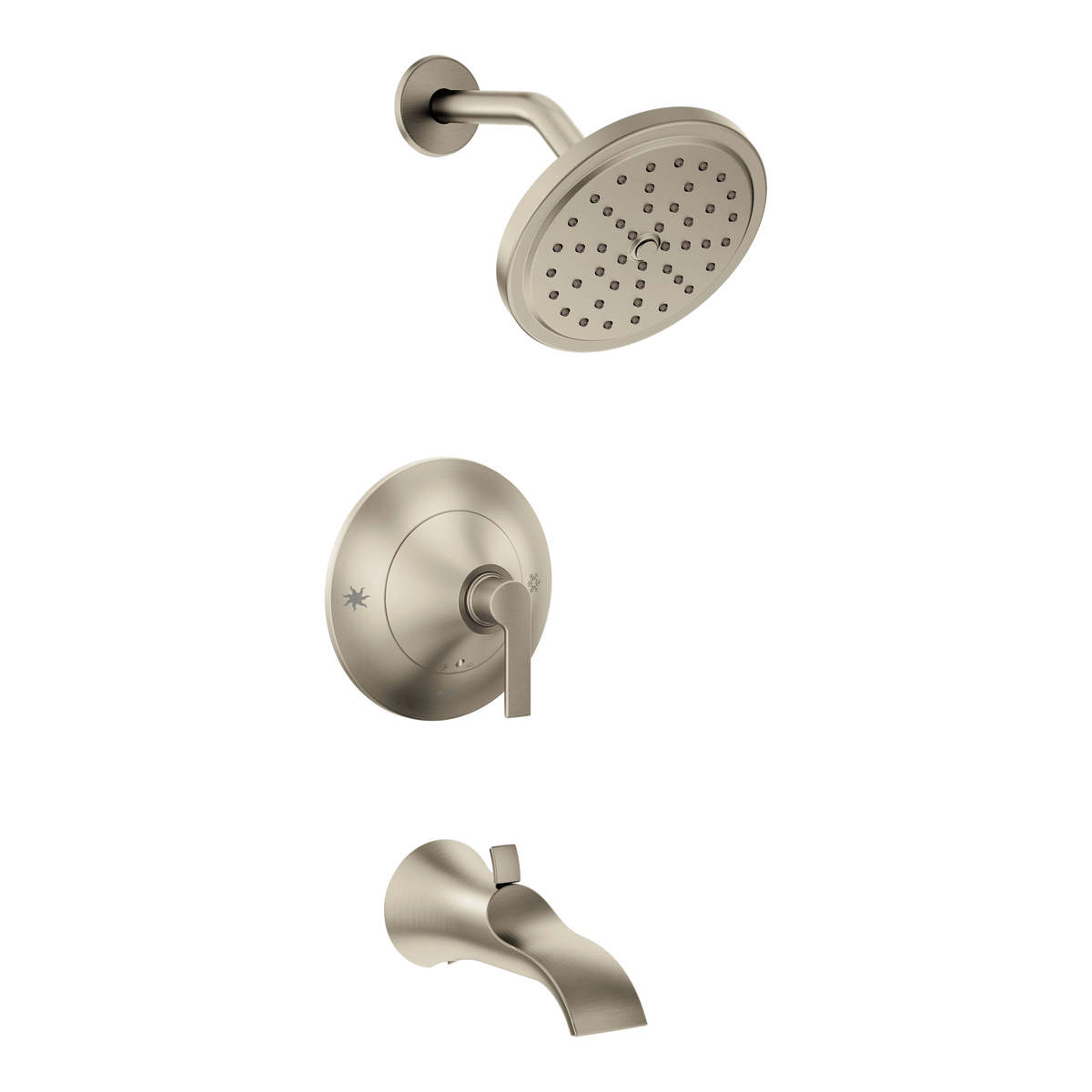

Moen TS2203BN Doux Brushed Nickel Posi-Temp Tub/Shower Trim

Valve required, sold separately. This is a trim kit (the visible handle, plate and fixtures). It installs on a Moen Posi-Temp pressure-balancing rough-in valve, which is not included. Before ordering, make sure a compatible Moen Posi-Temp rough-in valve is already installed, or order one separately.

The Moen TS2203BN is a Doux Posi-Temp single-handle tub/shower trim kit in Brushed Nickel, with a showerhead, arm, flange and diverter tub spout. It is designed for a bathtub-and-shower area and mounts over a Moen Posi-Temp rough-in valve, which is sold separately. It suits both replacement of an existing compatible trim and a bathroom remodel.

Key features

• Doux collection styling with a D-shaped spout that delivers water in a flat, thin ribbon
• Single handle turns counterclockwise through a 270° arc, off at 6 o'clock and maximum hot at 9 o'clock
• Posi-Temp pressure balancing maintains the selected discharge temperature to ± 3°
• Adjustable temperature limit stop to control maximum hot water temperature
• Showerhead limited to 2.5 gpm (9.5 L/min) at 80 psi
• Metal construction in a Brushed Nickel finish

What's in the box

• Showerhead
• Shower arm
• Flange
• Diverter tub spout

Compatibility

This is a trim kit only and requires a Moen Posi-Temp rough-in valve, sold separately. Compatible valves per the Moen specification sheet: 62300 series, 2500 series.
