Model #: U130CXS
Valves & Rough-In Plumbing

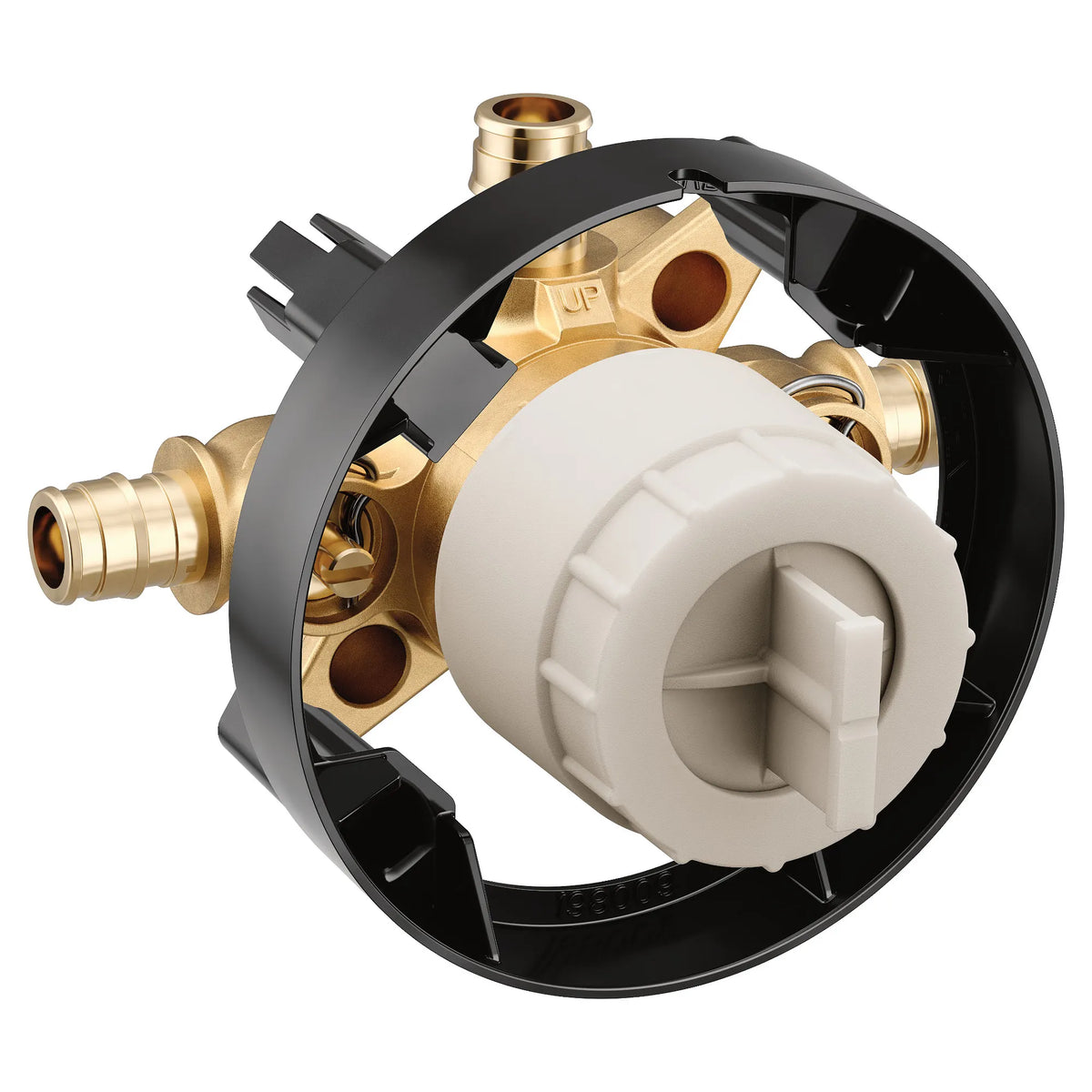

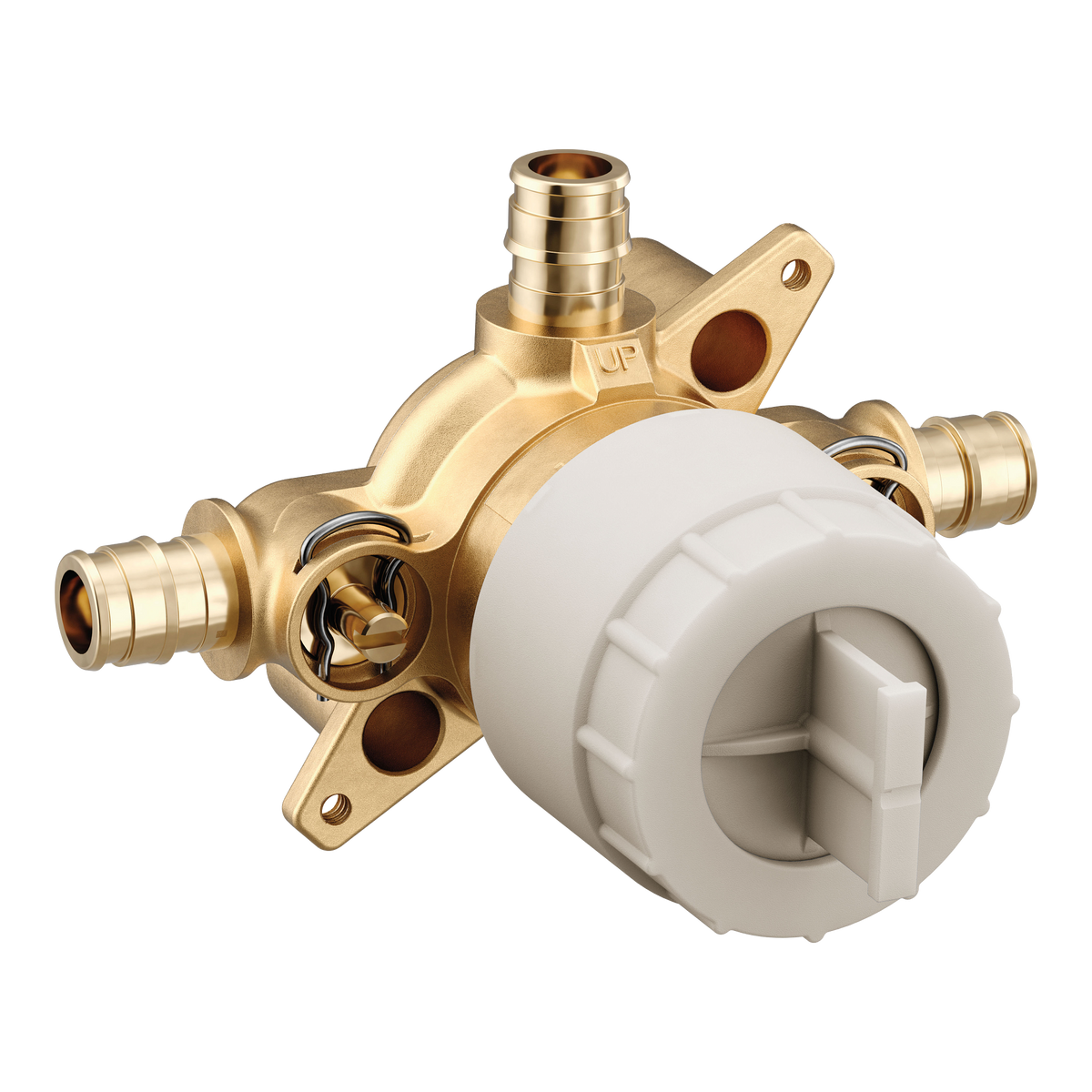

Moen U130CXS M-CORE 3 Port 1/2" Cold Expansion Pex Connection with Stops
1 in stock
Couldn't load pickup availability
$8 US shipping (free on items $100+) · Ships next business day · Arrives in 3–6 business days
- $8 US shipping · free only on items $100+
- Ships in 1 business day
- 30-day returns
- Secure checkout
Description
The Moen U130CXS is an M-CORE 3-port rough-in valve with 1/4-turn stops on each inlet and 1/2" cold expansion PEX connections. It installs inside the shower wall in thin or thick wall applications and works with an M-CORE trim kit, which supplies the cartridge. It suits new construction, remodels, and replacement of an existing shower rough-in.
Key features
- M-CORE 3-port rough-in valve for shower
- Brass construction
- 1/4-turn stops on each inlet
- 1/2" cold expansion PEX connections; all inlets match outlets
- Supplied flush plug allows testing up to 200 PSI with air (300 PSI water)
- Installs in thin or thick wall applications
What's in the box
- M-CORE 3-port rough-in valve with 1/4-turn stops
- Flush plug
Compatibility
Rough-in valve for M-CORE shower systems; requires a separately sold M-CORE trim kit, which supplies the cartridge. Connects to 1/2" cold expansion PEX supply lines. Fits thin or thick wall installations; walls thicker than 1" (25mm) require an optional extension kit.
Specifications
| Brand | Moen |
|---|---|
| Model | U130CXS |
| Product type | Valves & Rough-In Plumbing |
| Valve platform | M-CORE |
| Ports | 3 |
| Inlet connection | 1/2" Cold Expansion PEX |
| Stops | 1/4-turn stops on each inlet |
| Construction | Brass |
| Cartridge | Supplied in the M-CORE Trim Kit (sold separately) |
| Wall thickness | Thin or thick wall; walls thicker than 1" (25mm) require optional extension kit |
| Wall opening | 5" diameter (U130CXS) |
| Pressure testing | Supplied flush plug allows testing up to 200 PSI with air (300 PSI water) |
| Certifications | Third party certified to meet ASME A112.18.1/CSA B125.1 |
Specifications
| Brand | Moen |
|---|---|
| Model number | U130CXS |
| Product type | Valves & Rough-In Plumbing |
| Valve platform | Moen M-CORE |
| Condition | New |
| UPC | 026508319420 |
