Model #: U130X
Valves & Rough-In Plumbing

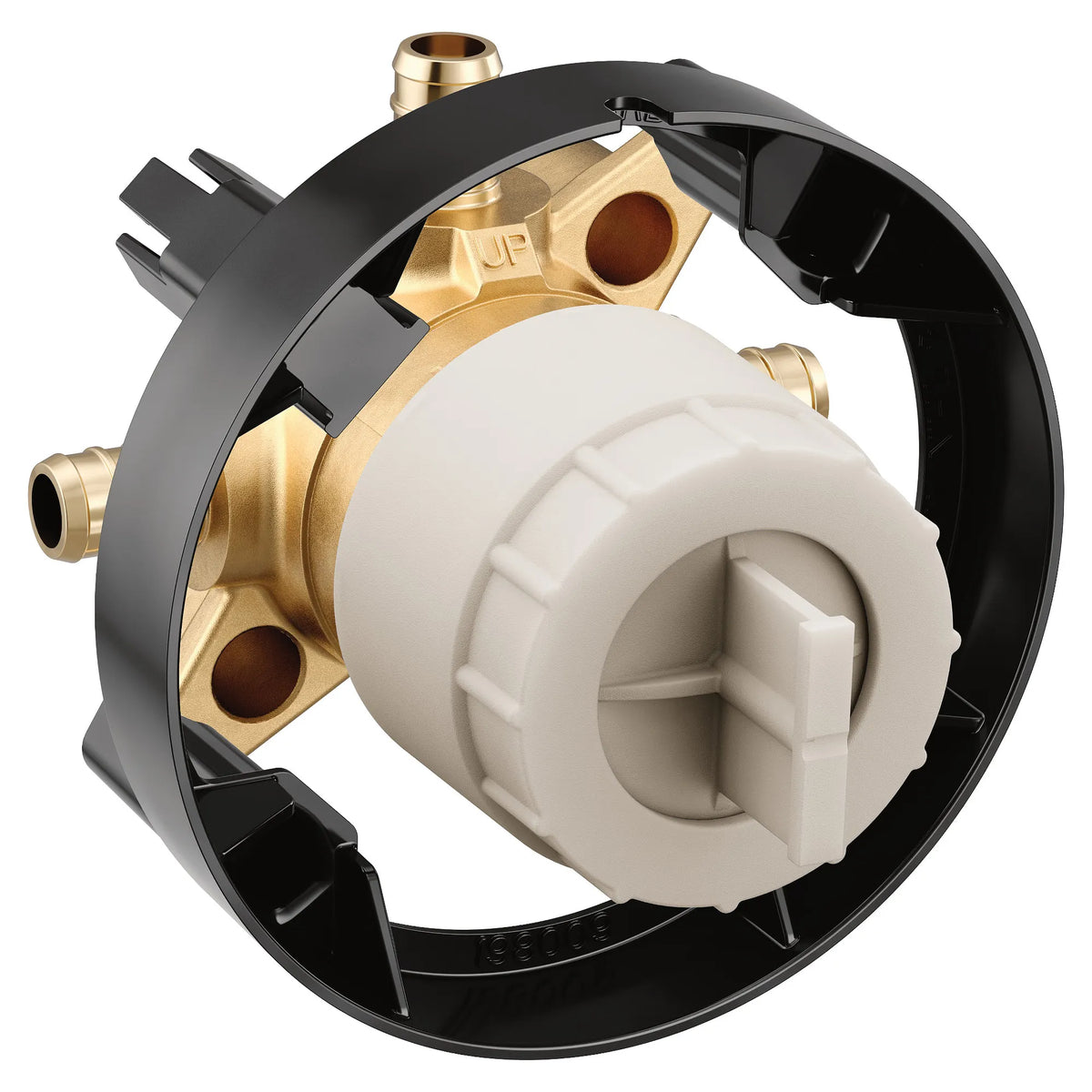

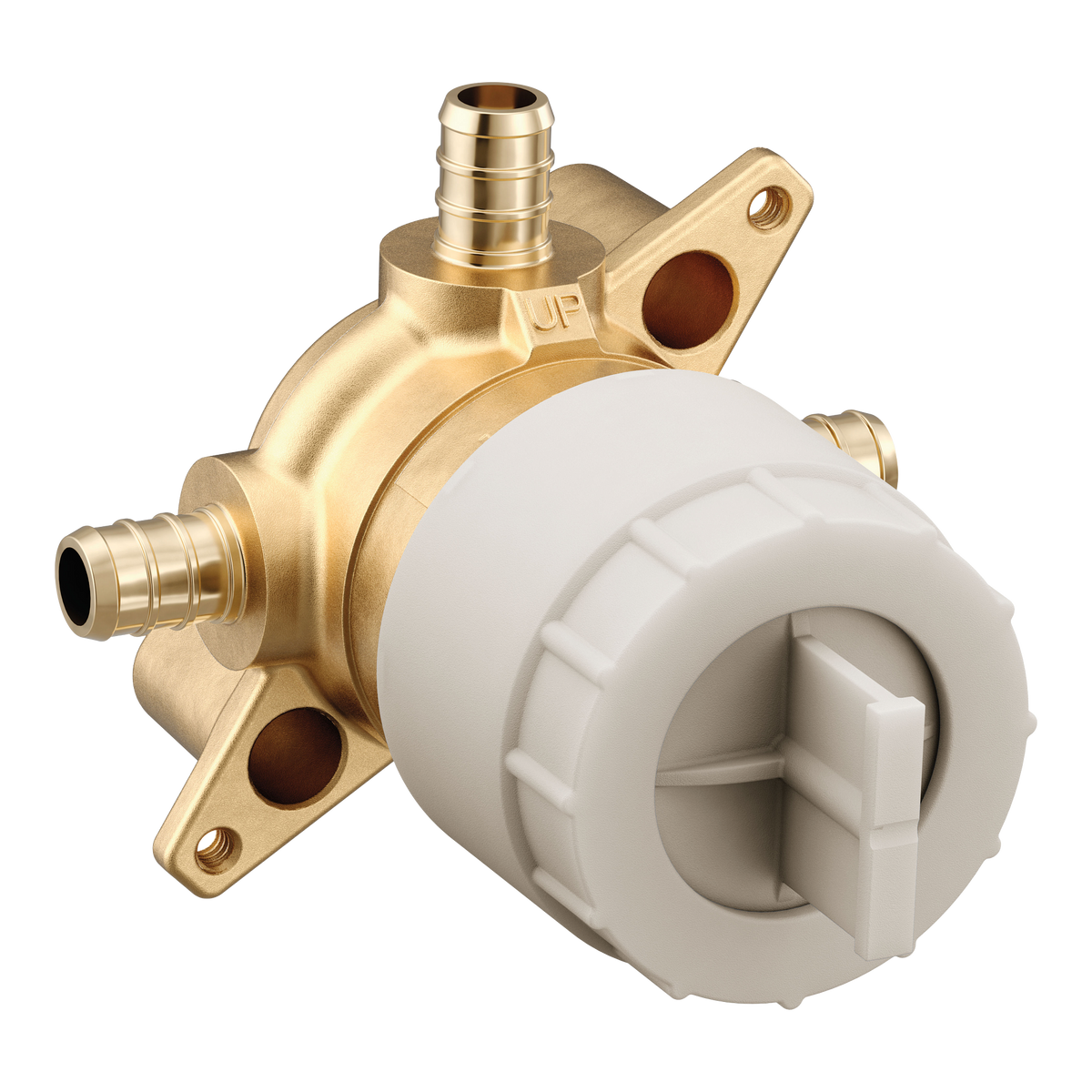

Moen U130X M-CORE 3 Port 1/2" Crimp Ring Pex Connection
$32.30
$32.30
Sold out
2 in stock
Couldn't load pickup availability
$8 US shipping (free on items $100+) · Ships next business day · Arrives in 3–6 business days
- $8 US shipping · free only on items $100+
- Ships in 1 business day
- 30-day returns
- Secure checkout
Description
The Moen U130X is a brass M-CORE 3-port rough-in valve with 1/2" crimp ring PEX inlet and outlet connections. It installs behind the wall of a shower and works in both thin and thick wall applications. It suits new construction, remodels, or replacement of an existing rough-in when paired with an M-CORE trim kit.
Key features
- M-CORE 3-port rough-in valve
- 1/2" crimp ring PEX connections; all inlets match outlets
- Brass construction
- Supplied flush plug allows pressure testing up to 200 PSI with air (300 PSI water)
- Installs in thin or thick wall applications
- Cartridge is supplied in the M-CORE trim kit (sold separately)
What's in the box
- Flush plug
Compatibility
Rough-in valve for M-CORE shower systems; requires an M-CORE trim kit, which supplies the cartridge. Suitable for thin or thick wall installations; walls thicker than 1" (25mm) require an optional extension kit.
Specifications
| Brand | Moen |
|---|---|
| Model | U130X |
| Product type | Valves & Rough-In Plumbing |
| Valve platform | M-CORE |
| Ports | 3 |
| Connection | 1/2" crimp ring PEX |
| Construction | Brass |
| Cartridge | Supplied in the M-CORE trim kit (not included with valve) |
| Pressure testing | Up to 200 PSI with air (300 PSI water) using supplied flush plug |
| Wall thickness | Thin or thick wall; walls thicker than 1" (25mm) require optional extension kit |
| Certifications | Third party certified to meet ASME A112.18.1/CSA B125.1 |
Moen U130X M-CORE 3 Port 1/2" Crimp Ring Pex Connection
$32.30
Specifications
| Brand | Moen |
|---|---|
| Model number | U130X |
| Product type | Valves & Rough-In Plumbing |
| Valve platform | Moen M-CORE |
| Condition | New |
| UPC | 026508319437 |
