Model #: U361X
Valves & Rough-In Plumbing

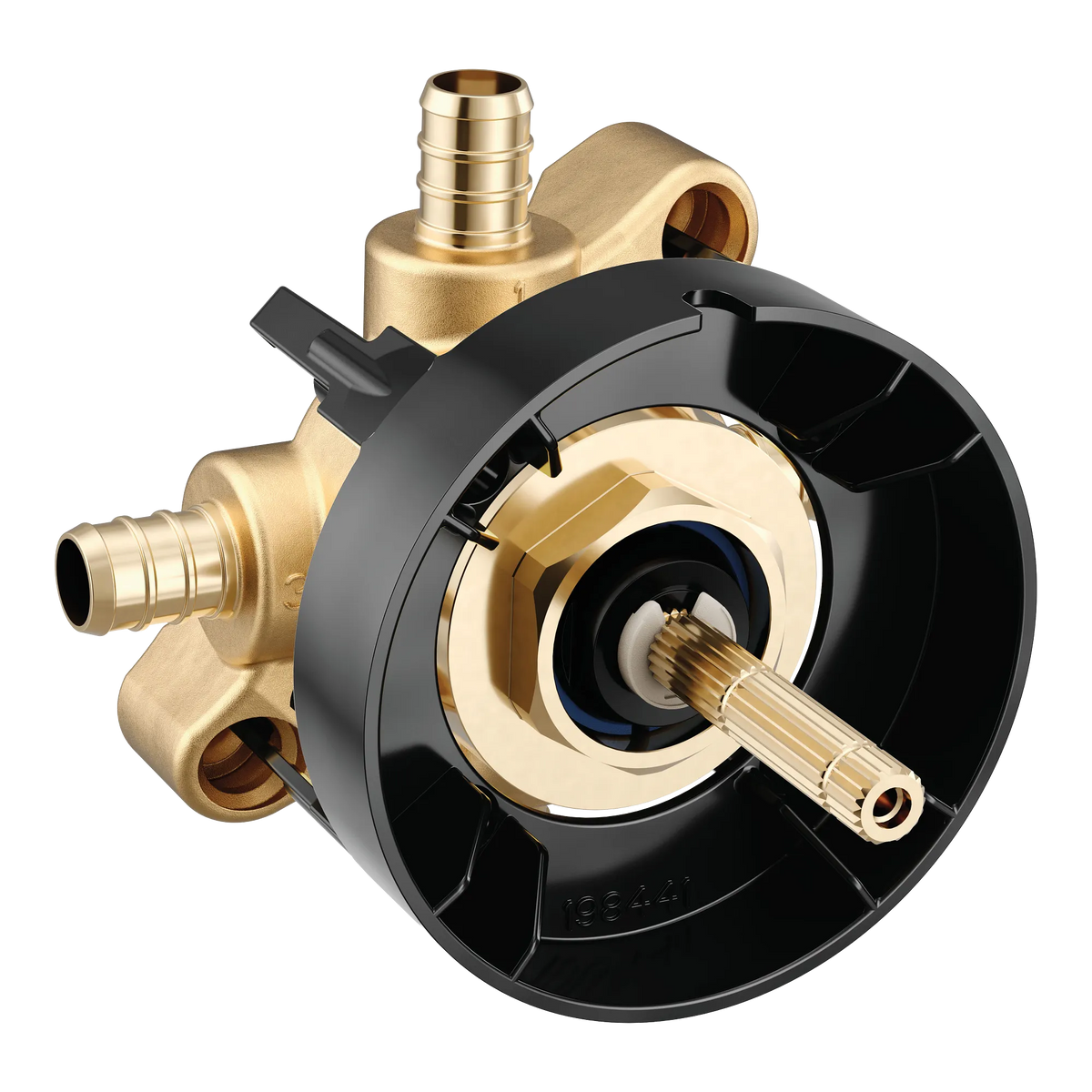

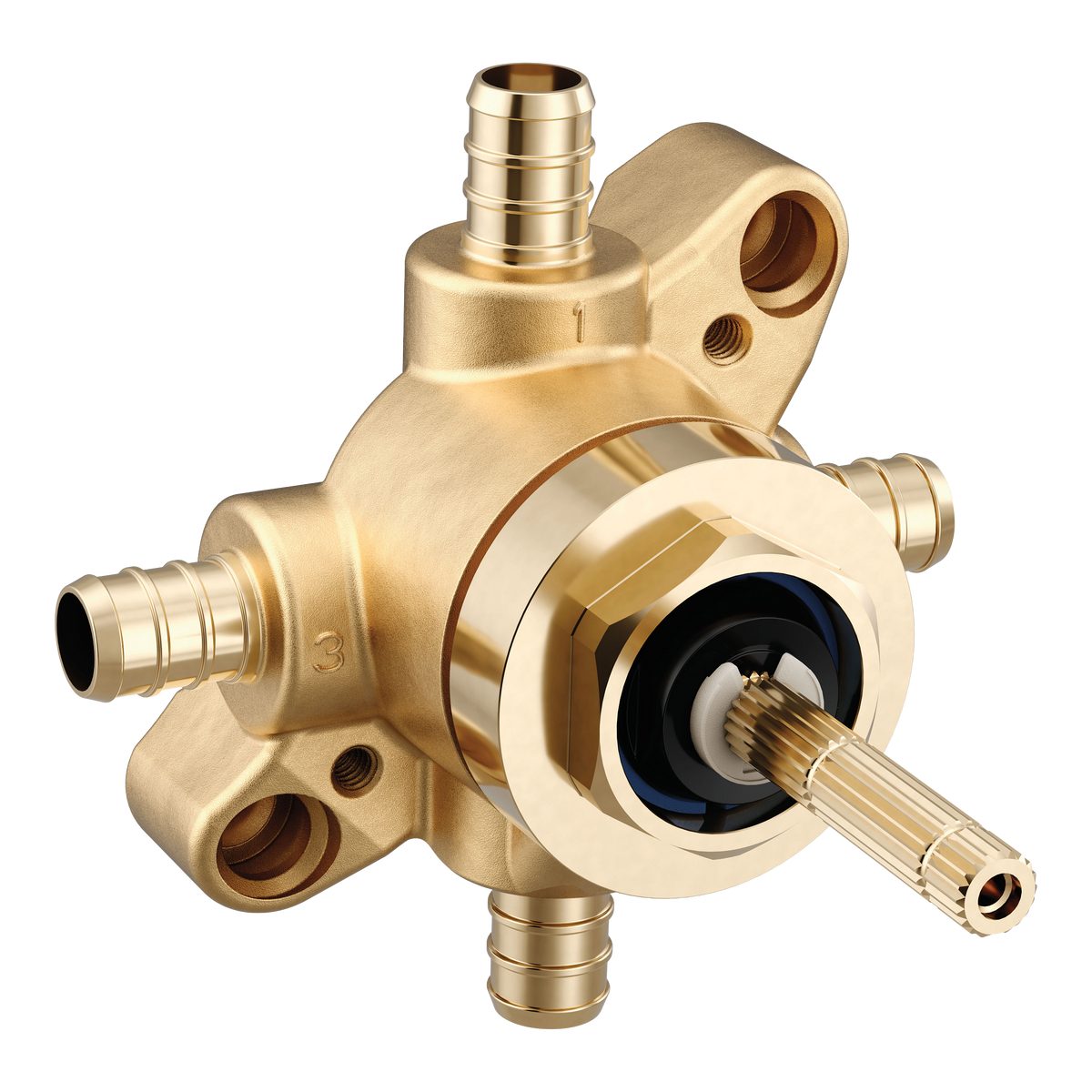

Moen U361X M-CORE Transfer 1/2" Crimp Ring PEX Rough-In Valve
$41.99
$41.99
Sold out
3 in stock
Couldn't load pickup availability
$8 US shipping (free on items $100+) · Ships next business day · Arrives in 3–6 business days
- $8 US shipping · free only on items $100+
- Ships in 1 business day
- 30-day returns
- Secure checkout
Description
The Moen U361X is an M-CORE transfer rough-in valve with 1/2" crimp ring PEX connections, installed in the wall to direct water between showering devices in a shower system. It is factory set for 2 showering devices and can be adjusted for 3. It suits both new shower builds and remodels that use PEX supply lines.
Key features
- M-CORE transfer valve platform
- 3 function (2 independent / 1 shared) or 6 function (3 independent / 3 shared) operation
- Factory set for 2 showering devices, adjustable for 3
- Detents at each flow position
- Brass construction with ceramic disk cartridge
- 1/2" crimp ring PEX connections
Compatibility
Rough-in transfer valve for M-CORE shower systems with 2 or 3 showering devices and 1/2" crimp ring PEX supply connections. Designed for finished walls from 1/4" (6mm) to 1" (25mm) thick; walls thicker than 1" (25mm) require an optional extension kit.
Specifications
| Brand | Moen |
|---|---|
| Model | U361X |
| Product type | Valves & Rough-In Plumbing |
| Valve platform | M-CORE transfer valve |
| Functions | 3 function (2 independent / 1 shared) or 6 function (3 independent / 3 shared) |
| Connection | 1/2" crimp ring PEX |
| Construction | Brass |
| Cartridge | Ceramic disk |
| Operation | Detents at each flow position; factory set for 2 showering devices, adjustable for 3 |
| Finished wall thickness | 1/4" (6mm) min, 1" (25mm) max; thicker walls require optional extension kit |
| Certifications | Third party certified to meet ASME A112.18/CSA B125.1 |
Moen U361X M-CORE Transfer 1/2" Crimp Ring PEX Rough-In Valve
$41.99
Specifications
| Brand | Moen |
|---|---|
| Model number | U361X |
| Product type | Valves & Rough-In Plumbing |
| Valve platform | Moen M-CORE |
| Condition | New |
| UPC | 026508319659 |
