Model #: UT2191BG
Tub & Shower Trim

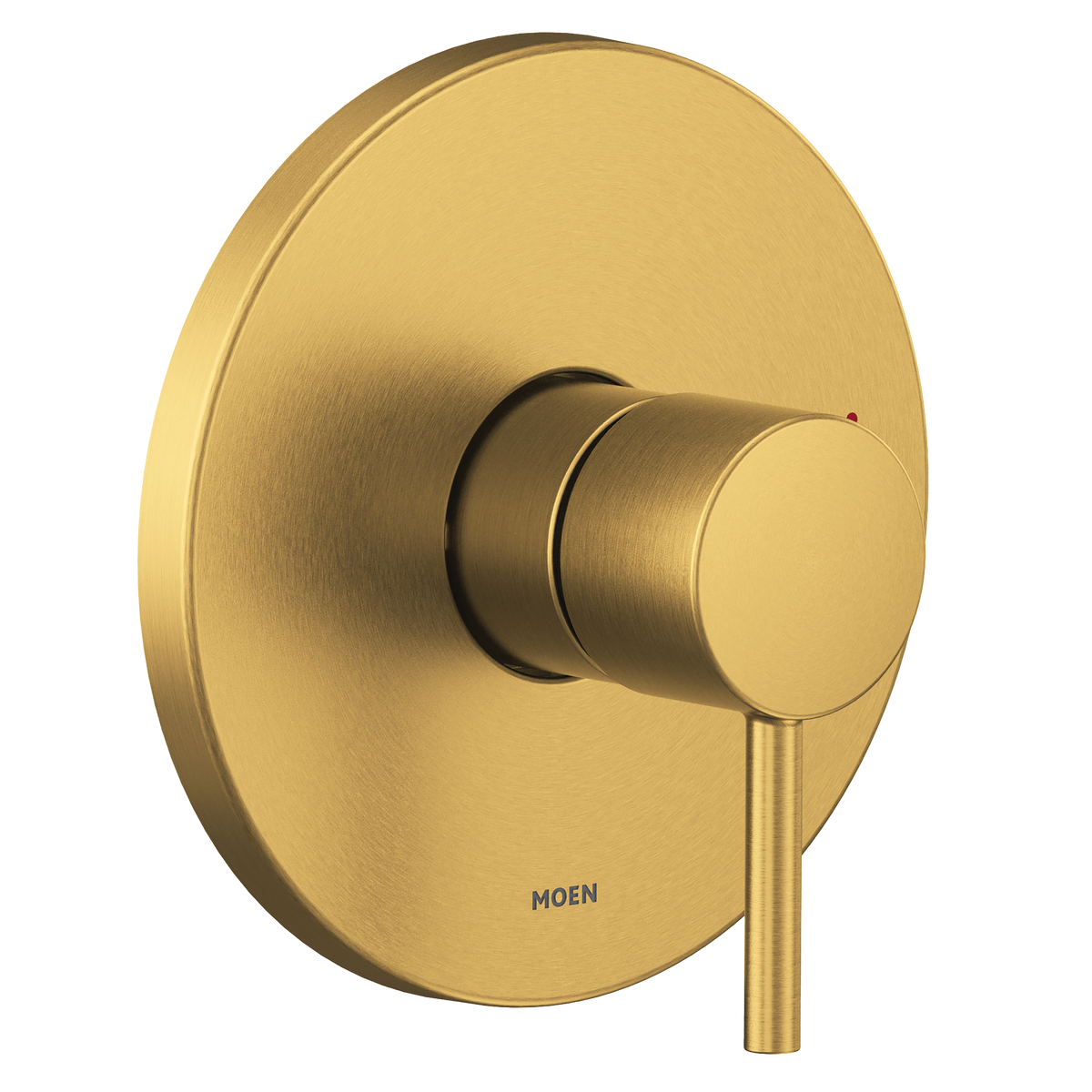

Moen UT2191BG Align Brushed Gold M-CORE 2-Series Tub/Shower Valve Trim
1 in stock
Couldn't load pickup availability
Free US shipping · Ships next business day · Arrives in 3–6 business days
- Free US shipping
- Ships in 1 business day
- 30-day returns
- Secure checkout
Description
Valve required, sold separately. This is a trim kit (the visible handle, plate and fixtures). It installs on a Moen M-CORE rough-in valve, which is not included. This is an M-CORE 2-Series trim: one handle that controls temperature only (no separate volume control). Before ordering, make sure a compatible Moen M-CORE rough-in valve is already installed, or order one separately.
The Moen UT2191BG is a single-handle valve trim from the Align collection in a Brushed Gold finish, designed for the M-CORE 2-Series tub and shower valve. It provides the visible handle and wall trim for a tub or shower area and can be used in large master baths or smaller bathrooms. It suits both replacement and remodel projects where a compatible Moen M-CORE rough-in valve is installed or planned.
Key features
- Align collection with simple lines and a contemporary, modern style
- Single lever handle operating through a 150° arc, off at 6 o'clock
- M-CORE 2-Series pressure balance platform holds selected temperature to +/- 3.6°F (+/- 2°C)
- Adjustable temperature limit stop to control maximum hot water temperature
- Brushed Gold finish on metal construction
- Valve trim only design: rough-in valve sold separately
Compatibility
This is a trim kit, not a valve. It requires a Moen M-CORE rough-in valve, sold separately. Compatible valves per the Moen specification sheet: U130 Series and U140 Series.
Specifications
| Brand | Moen |
|---|---|
| Model | UT2191BG |
| Collection | Align |
| Finish | Brushed Gold |
| Product type | Tub & Shower Valve Trim (M-CORE 2-Series) |
| Compatible valves | Moen M-CORE U130 Series and U140 Series (sold separately) |
| Handles | Single lever handle |
| Construction | Metal |
| Operation | Counterclockwise through 150° arc; off at 6 o'clock, maximum hot at 1 o'clock |
| Temperature control | Pressure balancing, +/- 3.6°F (+/- 2°C); adjustable temperature limit stop |
| Cartridge | 1212 Ceramic Disk Temperature Control Cartridge |
| Max. wall thickness | 1 in (25 mm) |
| Certifications | ASME A112.18.1/CSA B125.1, ASSE 1016/ASME A112.1016/CSA B125.16; ADA compliant for lever handle |
Manufacturer specification sheet: Moen UT2191BG specifications (PDF)
Specifications
| Brand | Moen |
|---|---|
| Model number | UT2191BG |
| Product type | Tub & Shower Trim |
| Valve platform | Moen M-CORE |
| Condition | New |
| UPC | 026508338490 |
Compatibility
This is a trim kit: the handle and visible parts that mount on the wall. It installs over a Moen M-CORE rough-in valve, which is sold separately. Not sure which valve is in your wall? How to tell Moen Posi-Temp, M-CORE and M-PACT valves apart.
