Model #: UT2262EPBL
Tub & Shower Trim
Moen UT2262EPBL Cia Matte Black M-CORE 2-Series Shower Only Trim
2 in stock
Couldn't load pickup availability
Free US shipping · Ships next business day · Arrives in 3–6 business days
- Free US shipping
- Ships in 1 business day
- 30-day returns
- Secure checkout
Description
Valve required, sold separately. This is a trim kit (the visible handle, plate and fixtures). It installs on a Moen M-CORE rough-in valve, which is not included. This is an M-CORE 2-Series trim: one handle that controls temperature only (no separate volume control). Before ordering, make sure a compatible Moen M-CORE rough-in valve is already installed, or order one separately.

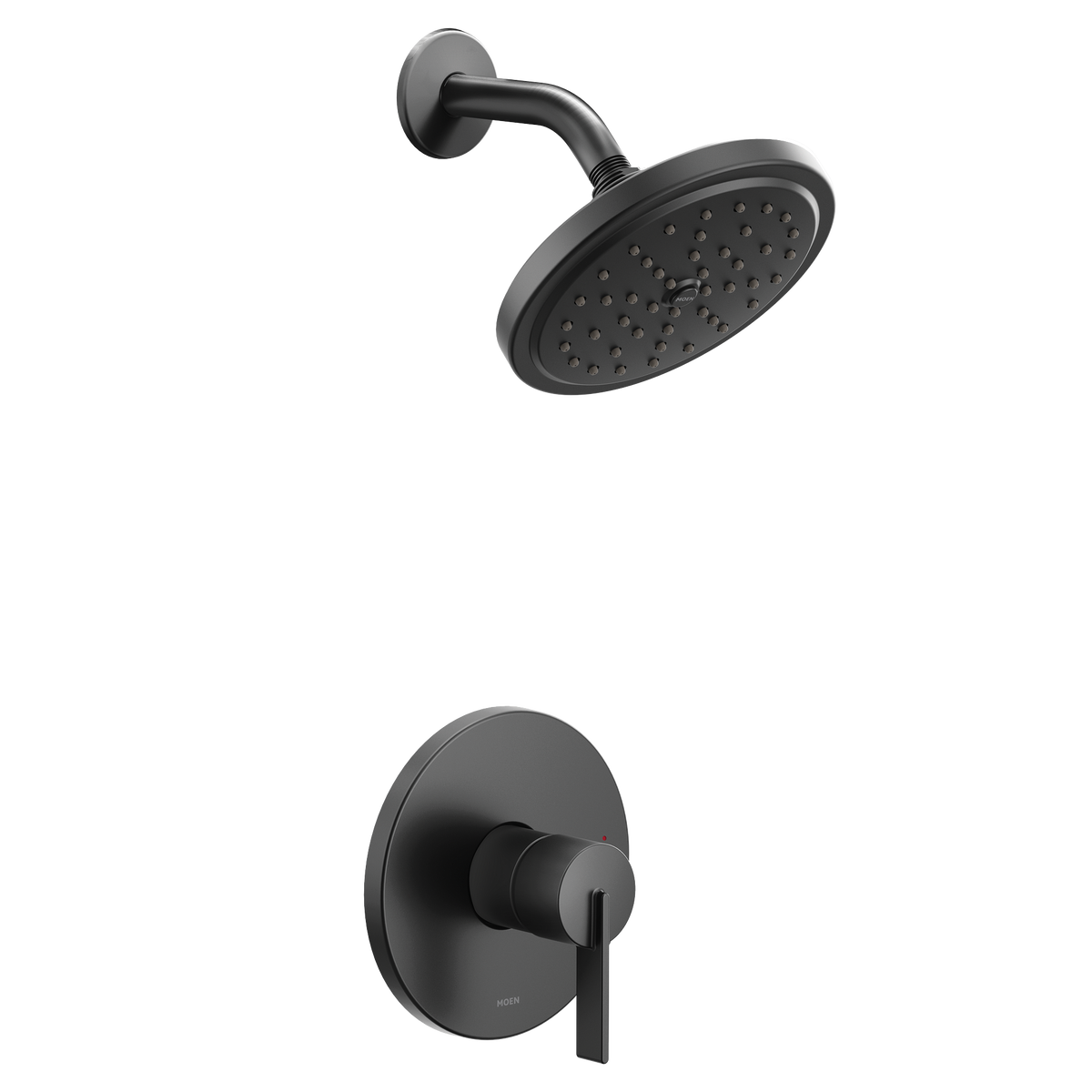

The Moen UT2262EPBL is a Cia single-handle shower only trim kit in Matte Black for the Moen M-CORE 2-Series pressure balance platform. It finishes a shower with a showerhead, arm and flange and is limited to 1.75 gpm (eco-performance). It suits a remodel or the replacement of an existing trim on a compatible M-CORE rough-in valve, which is sold separately.
Key features
- Cia collection styling with contemporary curves and a handle with defined edges
- Single lever handle operating through a 150° arc, with an adjustable temperature limit stop
- M-CORE pressure balance mechanism maintains the selected temperature to +/- 3.6°F (+/- 2°C)
- Eco-performance flow limited to 1.75 gpm (6.6 L/min) at 80 psi; EPA WaterSense certified
- Matte Black finish, metal construction
What's in the box
- Showerhead
- Shower arm
- Flange
Compatibility
This is a trim kit only and requires a Moen M-CORE 2-Series rough-in valve, sold separately. Valves: U140 series, U130 series.
Specifications
| Brand | Moen |
|---|---|
| Model | UT2262EPBL |
| Collection | Cia |
| Finish | Matte Black |
| Product type | Shower only trim kit (M-CORE 2-Series) |
| Compatible valves | U140 series, U130 series (sold separately) |
| Handles | Single lever handle |
| Operation | Counterclockwise through a 150° arc; off at 6 o'clock, maximum hot at 1 o'clock |
| Temperature control | Pressure balance, +/- 3.6°F (+/- 2°C); adjustable temperature limit stop |
| Flow rate | 1.75 gpm (6.6 L/min) at 80 psi |
| Cartridge | 1212 cartridge; nonmetallic/nonferrous and stainless steel materials; accommodates back to back installations |
| Construction | Metal |
| Certifications | ASME A112.18.1/CSA B125.1, ASSE 1016/ASME A112.1016/CSA B125.16, EPA WaterSense, ADA compliant for lever handle |
Specifications
| Brand | Moen |
|---|---|
| Model number | UT2262EPBL |
| Product type | Tub & Shower Trim |
| Valve platform | Moen M-CORE |
| Condition | New |
| UPC | 026508336342 |
Compatibility
This is a trim kit: the handle and visible parts that mount on the wall. It installs over a Moen M-CORE rough-in valve, which is sold separately. Not sure which valve is in your wall? How to tell Moen Posi-Temp, M-CORE and M-PACT valves apart.
