Model #: UT2342EPBZG
Tub & Shower Trim

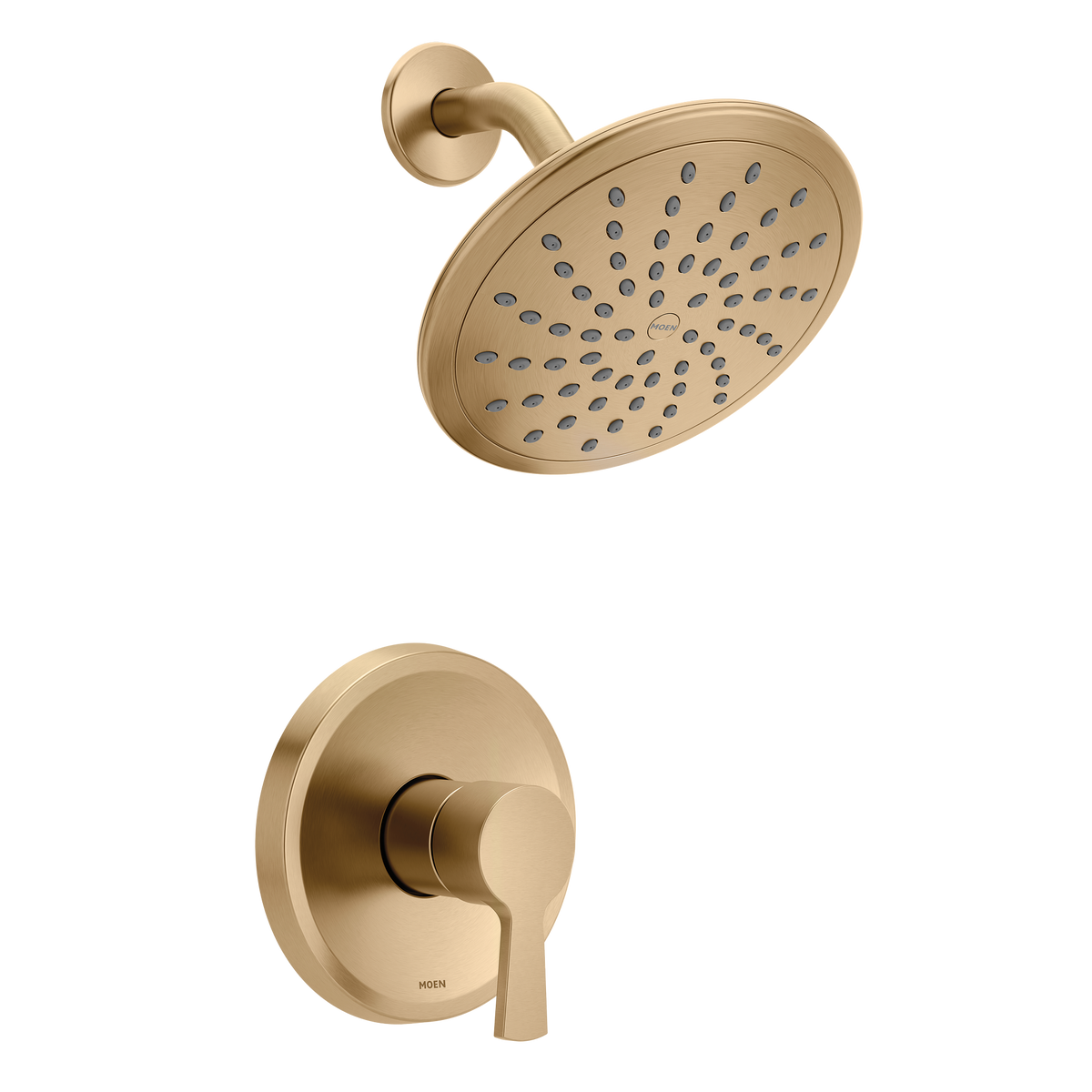

Moen UT2342EPBZG Jase Bronzed Gold M-CORE 2-Series Shower Only Trim
1 in stock
Couldn't load pickup availability
Free US shipping · Ships next business day · Arrives in 3–6 business days
- Free US shipping
- Ships in 1 business day
- 30-day returns
- Secure checkout
Description
Valve required, sold separately. This is a trim kit (the visible handle, plate and fixtures). It installs on a Moen M-CORE rough-in valve, which is not included. This is an M-CORE 2-Series trim: one handle that controls temperature only (no separate volume control). Before ordering, make sure a compatible Moen M-CORE rough-in valve is already installed, or order one separately.
The Moen UT2342EPBZG is a Jase M-CORE 2-Series single-handle shower only trim kit in Bronzed Gold. It is intended for a shower-only installation and mounts over a Moen M-CORE rough-in valve, which is sold separately. It suits replacing the visible trim on an existing M-CORE valve or finishing a new shower in a remodel.
Key features
- Jase collection, M-CORE 2-Series shower only trim
- Single lever handle; operates counterclockwise through a 150° arc, off at 6 o'clock
- Pressure balancing maintains selected temperature to +/- 3.6°F (+/- 2°C); adjustable temperature limit stop
- Eco-performance (EP) showerhead limited to 1.75 gpm (6.6 L/min), WaterSense certified
- Metal construction in Bronzed Gold finish
What's in the box
- Showerhead
- Shower arm
- Flange
Compatibility
This is a trim kit only and requires a Moen M-CORE rough-in valve (sold separately). Valves: U130 Series and U140 Series.
Specifications
| Brand | Moen |
|---|---|
| Model | UT2342EPBZG |
| Collection | Jase |
| Series | M-CORE 2-Series |
| Finish | Bronzed Gold |
| Product type | Tub & Shower Trim (Shower Only) |
| Compatible valves | U130 Series and U140 Series (sold separately) |
| Handles | Single lever handle |
| Construction | Metal |
| Flow rate | Showerhead limited to 1.75 gpm (6.6 L/min) |
| Cartridge | 1212 Ceramic Disk Temperature Control Cartridge |
| Temperature control | Pressure balancing, +/- 3.6°F (+/- 2°C); adjustable temperature limit stop |
| Max. wall thickness | 1" (25 mm) |
| Certifications | ASME A112.18.1/CSA B125.1, ASSE 1016/ASME A112.1016/CSA B125.16, EPA WaterSense; ADA compliant for lever handle |
Manufacturer specification sheet: Moen UT2342EPBZG specifications (PDF)
Specifications
| Brand | Moen |
|---|---|
| Model number | UT2342EPBZG |
| Product type | Tub & Shower Trim |
| Valve platform | Moen M-CORE |
| Condition | New |
| UPC | 026508403471 |
Compatibility
This is a trim kit: the handle and visible parts that mount on the wall. It installs over a Moen M-CORE rough-in valve, which is sold separately. Not sure which valve is in your wall? How to tell Moen Posi-Temp, M-CORE and M-PACT valves apart.
