Model #: UT3692BN
Tub & Shower Trim

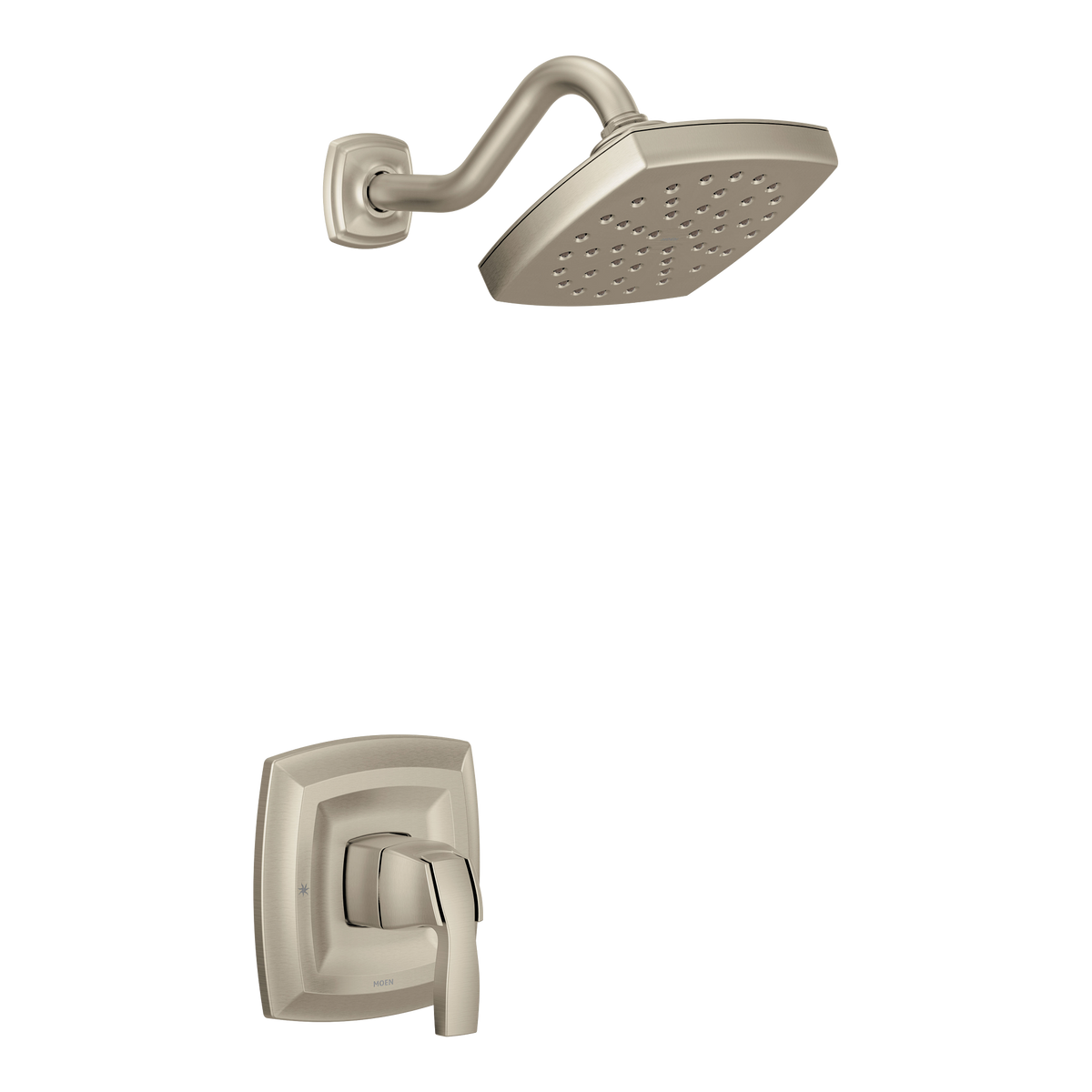

Moen UT3692BN Voss Brushed Nickel M-CORE 3-Series Shower Only Trim
1 in stock
Couldn't load pickup availability
Free US shipping · Ships next business day · Arrives in 3–6 business days
- Free US shipping
- Ships in 1 business day
- 30-day returns
- Secure checkout
Description
Valve required, sold separately. This is a trim kit (the visible handle, plate and fixtures). It installs on a Moen M-CORE rough-in valve, which is not included. This is an M-CORE 3-Series trim: one handle that controls both water volume and temperature. Before ordering, make sure a compatible Moen M-CORE rough-in valve is already installed, or order one separately.
The Moen UT3692BN is a Voss M-CORE 3-Series single-handle shower only trim in Brushed Nickel. It installs over a Moen M-CORE rough-in valve (U130 or U140 series, sold separately) in a shower. It suits a remodel or the replacement of an existing trim on a compatible M-CORE valve.
Key features
- Voss collection: crisp edges and uncomplicated, Transitional styling
- Single lever handle with temperature indicator on the escutcheon
- M-CORE 3-Series pressure balancing mechanism maintains the selected discharge temperature to ± 2°F
- Adjustable temperature limit stop to control maximum hot water temperature
- Brushed Nickel finish
Compatibility
This is a trim kit only; it requires a Moen M-CORE rough-in valve, sold separately. Compatible valves per the Moen specification sheet: U130 Series and U140 Series. Not compatible with back to back installations.
Specifications
| Brand | Moen |
|---|---|
| Model | UT3692BN |
| Collection | Voss |
| Series | M-CORE 3-Series |
| Finish | Brushed Nickel |
| Product type | Tub & Shower Trim (shower only trim) |
| Compatible valves | U130 Series and U140 Series (sold separately) |
| Handles | Single lever handle with temperature indicator on the escutcheon |
| Volume control | Handle is lifted in a 0 to 25° arc |
| Temperature control | 110° arc of handle rotation (full cold to full hot); adjustable temperature limit stop |
| Pressure balancing | Maintains selected discharge temperature to ± 2°F |
| Flow rate | Showerhead limited to 2.5 gpm (9.5 L/min) |
| Cartridge | 1213 ceramic disk volume control cartridge |
| Certifications | M-CORE pressure balance system capable of meeting ASSE 1016 pressure and temperature variation requirements when tested as low as 1.5 gpm (5.68 L/min); ADA for lever handle |
Specifications
| Brand | Moen |
|---|---|
| Model number | UT3692BN |
| Product type | Tub & Shower Trim |
| Valve platform | Moen M-CORE |
| Condition | New |
| UPC | 026508320532 |
Compatibility
This is a trim kit: the handle and visible parts that mount on the wall. It installs over a Moen M-CORE rough-in valve, which is sold separately. Not sure which valve is in your wall? How to tell Moen Posi-Temp, M-CORE and M-PACT valves apart.
