Model #: UT4813EPBL
Tub & Shower Trim

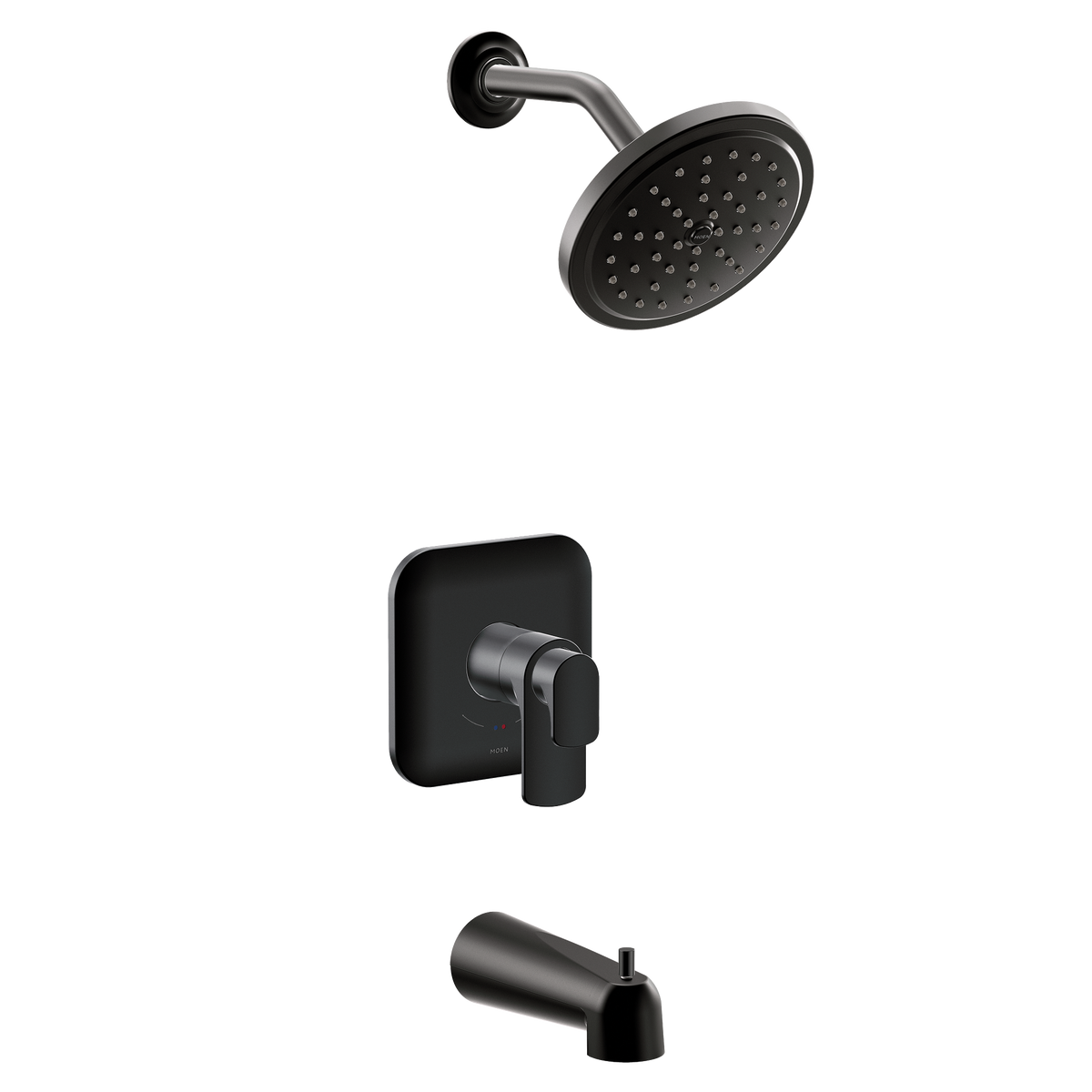

Moen UT4813EPBL Rizon Matte Black M-CORE 4-Series Tub/Shower Trim
1 in stock
Couldn't load pickup availability
Free US shipping · Ships next business day · Arrives in 3–6 business days
- Free US shipping
- Ships in 1 business day
- 30-day returns
- Secure checkout
Description
Valve required, sold separately. This is a trim kit (the visible handle, plate and fixtures). It installs on a Moen M-CORE rough-in valve, which is not included. This is an M-CORE 4-Series trim: separate controls for water volume and temperature. Before ordering, make sure a compatible Moen M-CORE rough-in valve is already installed, or order one separately.
The Moen UT4813EPBL is a Rizon M-CORE 4-Series tub/shower trim kit in Matte Black for a bathtub and shower combination. It installs over a Moen M-CORE U130 Series or U140 Series rough-in valve, which is sold separately. It suits a bathroom remodel or replacing the trim on an existing compatible M-CORE valve.
Key features
- Rizon collection styling with clean, horizontal lines
- Matte Black finish
- Separate flow and temperature levers; temperature lever is ADA compliant
- Thermostatic and pressure balancing M-CORE 4-Series system holds the selected temperature to +/- 3.6°F (+/- 2°C)
- Adjustable temperature limit stop to control maximum hot water temperature
- Eco-Performance showerhead limited to 1.75 gpm (6.6 L/min), EPA WaterSense certified
What's in the box
- Showerhead
- Shower arm
- Flange
- Diverter tub spout
Compatibility
This is a trim kit only and requires a Moen M-CORE rough-in valve (sold separately). Valves: U130 Series and U140 Series. Not compatible with back-to-back installations. Maximum wall thickness 1 in (25 mm).
Specifications
| Brand | Moen |
|---|---|
| Model | UT4813EPBL |
| Collection | Rizon |
| Finish | Matte Black |
| Product type | Tub & Shower Trim (M-CORE 4-Series) |
| Compatible valves | Moen M-CORE U130 Series and U140 Series (sold separately) |
| Handles | Flow lever and temperature lever |
| Flow rate | Showerhead limited to 1.75 gpm (6.6 L/min) |
| Cartridge | 1214 thermostatic and pressure balancing cartridge |
| Temperature range | Factory set 70°F (21°C) to 120°F (49°C); adjustable limit stop |
| Maximum wall thickness | 1 in (25 mm) |
| Construction | Metal |
| Certifications | ASME A112.18.1/CSA B125.1; ASSE 1016/ASME A112.1016/CSA B125.16; EPA WaterSense; ADA compliant lever handle |
Specifications
| Brand | Moen |
|---|---|
| Model number | UT4813EPBL |
| Product type | Tub & Shower Trim |
| Valve platform | Moen M-CORE |
| Condition | New |
| UPC | 026508348604 |
Compatibility
This is a trim kit: the handle and visible parts that mount on the wall. It installs over a Moen M-CORE rough-in valve, which is sold separately. Not sure which valve is in your wall? How to tell Moen Posi-Temp, M-CORE and M-PACT valves apart.
