Model #: UT8350CBN
Tub & Shower Trim

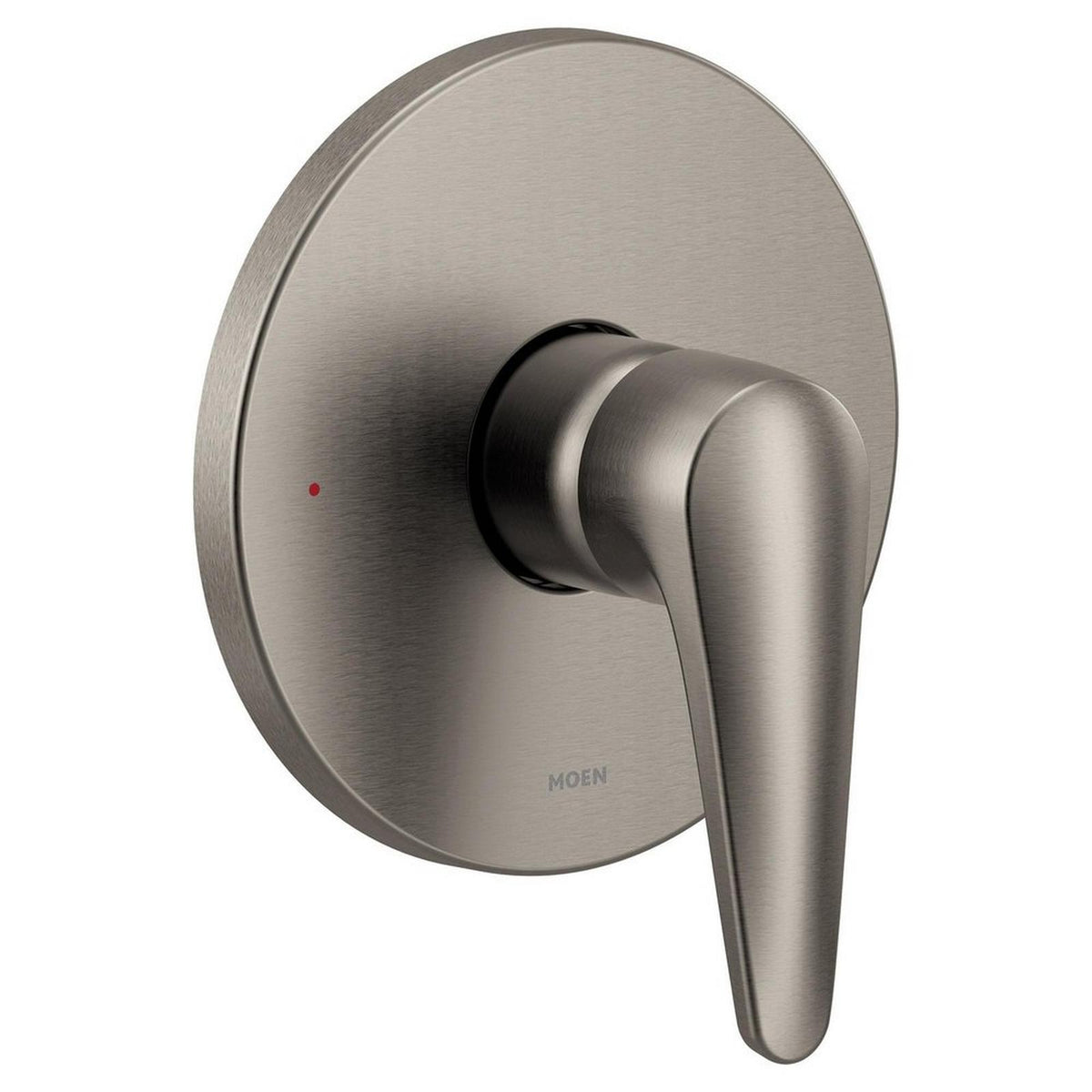

Moen UT8350CBN Commercial M-CORE 3-Series Brushed Nickel Tub & Shower Trim
3 in stock
Couldn't load pickup availability
$8 US shipping (free on items $100+) · Ships next business day · Arrives in 3–6 business days
- $8 US shipping · free only on items $100+
- Ships in 1 business day
- 30-day returns
- Secure checkout
Description
Valve required, sold separately. This is a trim kit (the visible handle, plate and fixtures). It installs on a Moen M-CORE rough-in valve, which is not included. This is an M-CORE 3-Series trim: one handle that controls both water volume and temperature. Before ordering, make sure a compatible Moen M-CORE rough-in valve is already installed, or order one separately.
The Moen UT8350CBN is a single-handle M-CORE 3-Series pressure balancing valve trim for tub/shower installations. It mounts over a Moen M-CORE U130 Series or U140 Series rough-in valve, which is sold separately. It suits replacing an existing trim on a compatible M-CORE valve or finishing a new tub/shower remodel.
Key features
- Single lever-style handle with temperature indicator on the escutcheon
- Volume is controlled by lifting the handle; temperature through a 110° arc of handle rotation from full cold to full hot
- Adjustable temperature limit stop to control maximum hot water temperature
- Pressure balancing mechanism maintains selected discharge temperature to ± 2°F
- Metal construction in Brushed Nickel finish
- ADA compliant lever handle
Compatibility
This is a trim kit only and requires a Moen M-CORE rough-in valve, sold separately. Compatible valves per the Moen specification sheet: U130 Series and U140 Series. Not compatible with back to back installations.
Specifications
| Brand | Moen |
|---|---|
| Model | UT8350CBN |
| Finish | Brushed Nickel |
| Product type | Tub & Shower Valve Trim (trim kit) |
| Valve platform | M-CORE 3-Series pressure balance |
| Compatible valves | U130 Series and U140 Series (sold separately) |
| Handles | Single lever handle |
| Temperature control | Pressure balancing to ± 2°F; adjustable temperature limit stop |
| Cartridge | 1213 Ceramic Disk Volume Control Cartridge |
| Certifications | ASME A112.18.1/CSA B-125-1, ASSE 1016; ADA for lever handle |
Manufacturer specification sheet: Moen UT8350CBN specifications (PDF)
Specifications
| Brand | Moen |
|---|---|
| Model number | UT8350CBN |
| Product type | Tub & Shower Trim |
| Valve platform | Moen M-CORE |
| Condition | New |
| UPC | 026508321133 |
Compatibility
This is a trim kit: the handle and visible parts that mount on the wall. It installs over a Moen M-CORE rough-in valve, which is sold separately. Not sure which valve is in your wall? How to tell Moen Posi-Temp, M-CORE and M-PACT valves apart.
