Model #: UTL181
Tub & Shower Trim

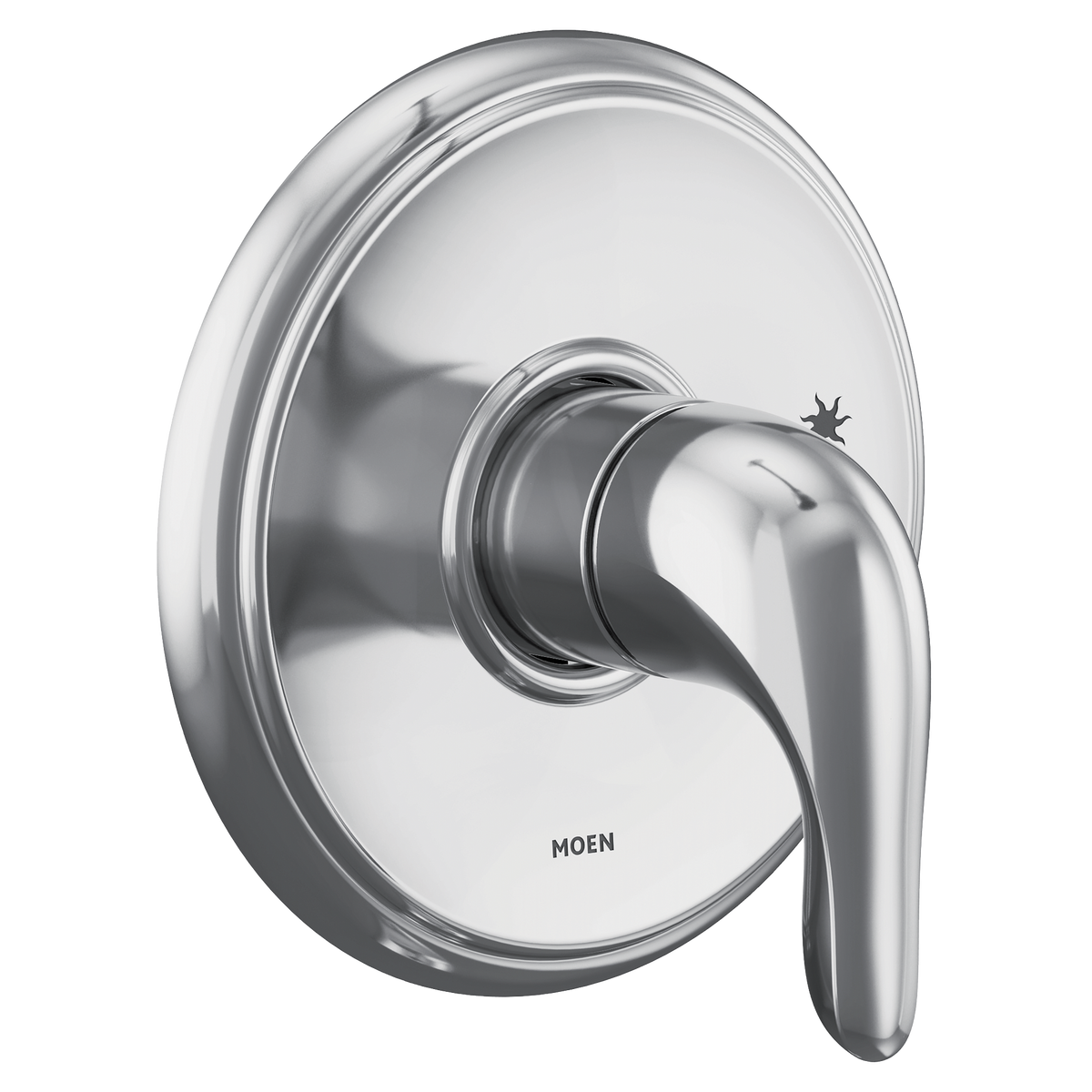

Moen UTL181 Chateau Chrome M-CORE 2-Series Tub & Shower Trim
1 in stock
Couldn't load pickup availability
$8 US shipping (free on items $100+) · Ships next business day · Arrives in 3–6 business days
- $8 US shipping · free only on items $100+
- Ships in 1 business day
- 30-day returns
- Secure checkout
Description
Valve required, sold separately. This is a trim kit (the visible handle, plate and fixtures). It installs on a Moen M-CORE rough-in valve, which is not included. This is an M-CORE 2-Series trim: one handle that controls temperature only (no separate volume control). Before ordering, make sure a compatible Moen M-CORE rough-in valve is already installed, or order one separately.
The Moen UTL181 is a Chateau single-handle valve trim in Chrome for the M-CORE 2-Series pressure-balancing tub/shower system. It is the valve trim version of the series, without a showerhead or tub spout, and mounts over a Moen U130 Series or U140 Series rough-in valve sold separately. It suits a tub/shower trim replacement or a remodel built on the M-CORE platform.
Key features
- Chateau collection: Moen performance and reliability with a simple, understated appeal
- Single-handle valve trim for the M-CORE 2-Series pressure balance system
- Handle operates counterclockwise through a 150° arc, off at 6 o'clock, maximum hot at 1 o'clock
- Adjustable temperature limit stop to control maximum hot water temperature
- Pressure balancing maintains selected discharge temperature to +/- 3.6°F (+/- 2°C)
- Chrome finish, metal construction
Compatibility
This is a trim kit only and requires a Moen M-CORE rough-in valve, sold separately. Valves: U130 Series and U140 Series.
Specifications
| Brand | Moen |
|---|---|
| Model | UTL181 |
| Collection | Chateau |
| Finish | Chrome |
| Product type | Tub & Shower Trim (valve trim) |
| Valve platform | M-CORE 2-Series |
| Compatible valves | U130 Series and U140 Series (sold separately) |
| Handles | Single handle |
| Construction | Metal |
| Operation | Counterclockwise through a 150° arc; off at 6 o'clock, maximum hot at 1 o'clock; shut off clockwise |
| Temperature control | Pressure balancing to +/- 3.6°F (+/- 2°C); adjustable temperature limit stop |
| Cartridge | 1212 Ceramic Disk Temperature Control Cartridge |
| Certifications | ASME A112.18.1/CSA B125.1, ASSE 1016/ASME A112.1016/CSA B125.16 |
Manufacturer specification sheet: Moen UTL181 specifications (PDF)
Specifications
| Brand | Moen |
|---|---|
| Model number | UTL181 |
| Product type | Tub & Shower Trim |
| Finish | Chrome |
| Valve platform | Moen M-CORE |
| Condition | New |
| UPC | 026508339961 |
Compatibility
This is a trim kit: the handle and visible parts that mount on the wall. It installs over a Moen M-CORE rough-in valve, which is sold separately. Not sure which valve is in your wall? How to tell Moen Posi-Temp, M-CORE and M-PACT valves apart.
