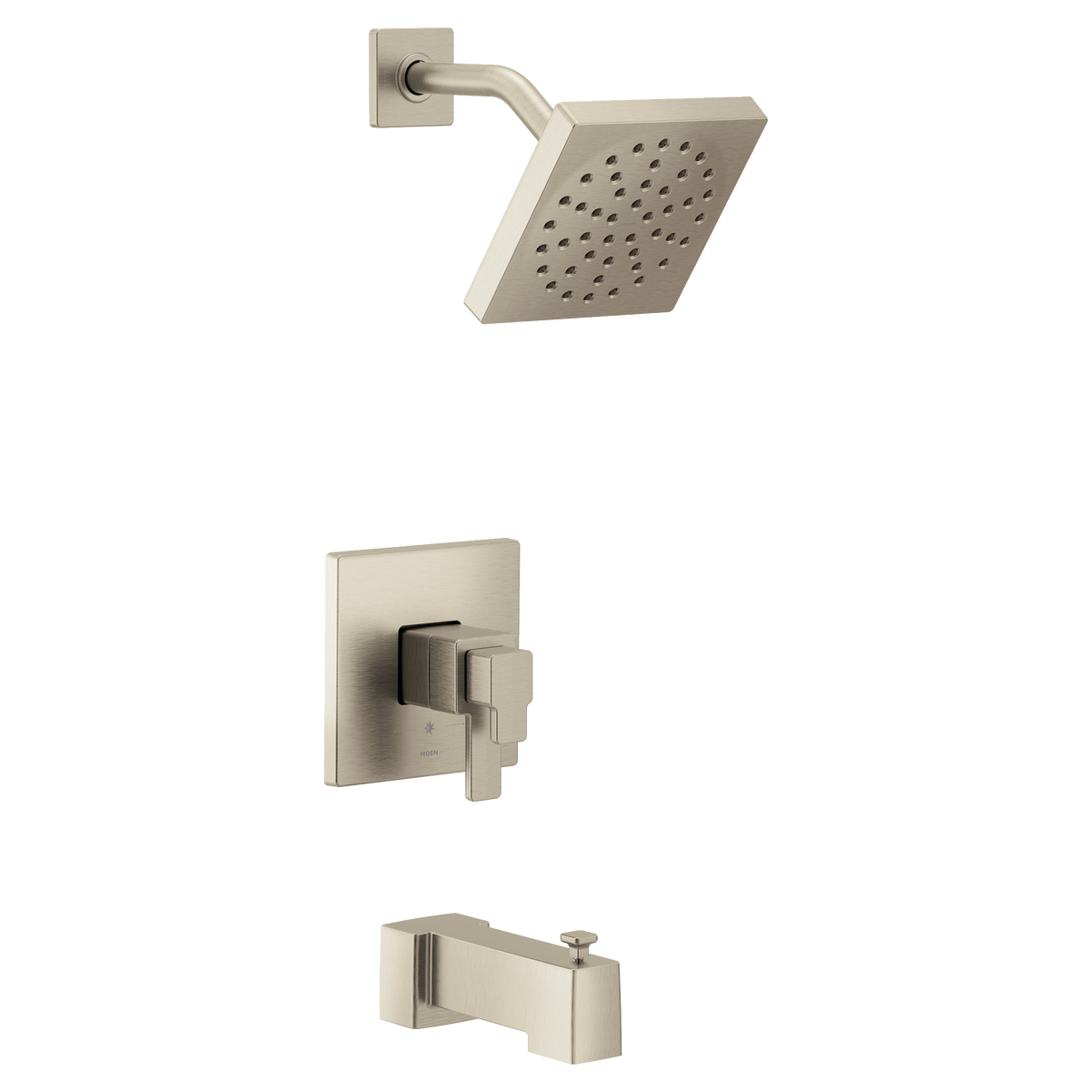

Moen UTS4713EPBN 90 Degree Brushed Nickel M-CORE 4-Series Tub/Shower Trim

Valve required, sold separately. This is a trim kit (the visible handle, plate and fixtures). It installs on a Moen M-CORE rough-in valve, which is not included. This is an M-CORE 4-Series trim: separate controls for water volume and temperature. Before ordering, make sure a compatible Moen M-CORE rough-in valve is already installed, or order one separately.

The Moen UTS4713EPBN is a 90 Degree M-CORE 4-Series tub/shower trim kit in Brushed Nickel for a wall-mounted bathtub and shower combination. It installs on a Moen M-CORE U130 or U140 Series rough-in valve, which is sold separately. The geometric forms, squared corners and straight lines suit a contemporary bathroom remodel or the replacement of an existing M-CORE trim.

Key features

• 90 Degree collection styling with geometric forms, squared corners and straight lines
• M-CORE 4-Series thermostatic and pressure balancing system that maintains the selected temperature to +/- 3.6°F (+/- 2°C)
• Separate flow lever and temperature lever, with an adjustable temperature limit stop
• Eco-performance (EP) showerhead limited to 1.75 gpm (6.6 L/min), EPA WaterSense certified
• Metal construction in Brushed Nickel finish
• Tub/shower kit with showerhead, arm, flange and diverter spout

What's in the box

• Showerhead
• Shower arm
• Flange
• Diverter spout

Compatibility

This is a trim kit only; it requires a Moen M-CORE rough-in valve, sold separately. Valves: U130 Series and U140 Series. Maximum finished wall thickness is 1" (25 mm). Not compatible with back to back installations.
