Shower System With Tub Spout and Handheld: How to Plan Three Outlets

A standard half-inch supply line delivering 5.5 gallons per minute is the absolute baseline required to run three separate water delivery components effectively. Attempting to install a shower system with tub spout and handheld attachments without verifying your static household water pressure will result in a disappointing trickle. You need at least 50 PSI at the meter to drive a multi-outlet setup. This reading dictates everything from your pipe sizing to the specific type of transfer valves you install.

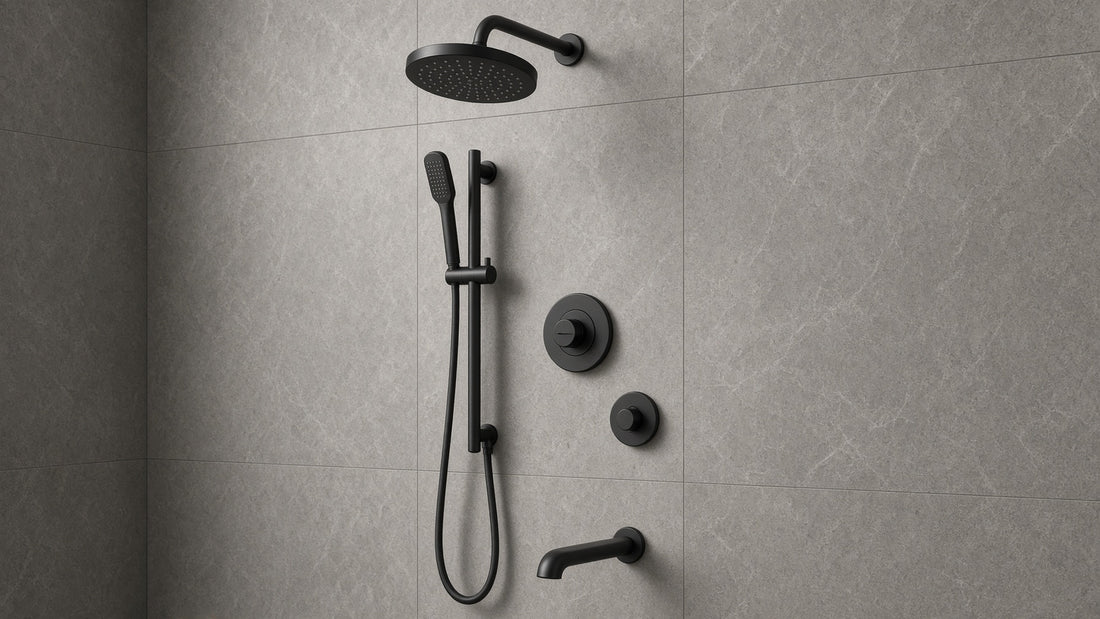

Mapping out a configuration that includes a fixed head, a flexible wand, and a basin filler requires calculating total flow against your water heater capacity. Running multiple outlets simultaneously drains a standard tank rapidly. The planning phase involves precise measurements and understanding exactly how water routes through the wall brass.

Assessing Supply Lines and Water Pressure

Your main household water lines dictate the maximum volume your new fixtures can output. Most older framing hides half-inch copper lines, which struggle to supply a high-flow shower system with tub spout and handheld shower operating simultaneously. Replacing the run with three-quarter-inch piping provides the volume necessary to prevent temperature drops.

Static pressure readings give you the raw pushing force available from your municipal supply. Attach a standard pressure gauge to the laundry tub to get a baseline reading. If the needle rests below 45 PSI, adding three distinct outlets stretches the system too thin. You might need to install a supplemental booster pump.

Flow rate calculations must account for the specific volume demands of each fixture. A standard filler demands high volume to fill the basin quickly. The fixed head and wand typically use less flow. Your infrastructure must support the combined maximum flow if you use a shared transfer valve.

Selecting the Primary Mixing Valve

Every multi-outlet setup begins with the main thermostatic or pressure-balancing mixing valve. This central brass hub controls the baseline temperature and the initial volume of water entering the enclosure. You must select a rough-in body that specifies a high flow rate, indicated by larger inlet ports.

Thermostatic valves offer distinct advantages for setups containing three delivery points. They separate the volume control from the temperature dial, allowing you to set a constant safe heat level. The internal wax element reacts instantly to supply changes, preventing scalding spikes when switching between the basin filler and the wand.

The installation depth of this primary valve determines the final appearance of your trim plates. Most brass rough-in bodies feature a plaster guard with distinct depth markings. Calculate the exact thickness of your cement board, waterproofing, and final tile to ensure the valve sits perfectly within tolerances.

Configuring the Diverter or Transfer Valve

Routing water from the main mixing hub to three distinct fixtures requires a dedicated transfer valve. You will install this secondary brass body above the primary mixer. A diverter accepts the mixed water and channels it to the specific outlet. The internal cartridge dictates whether you can share water.

Many builders prefer a specific moen shower system with handheld and tub spout setup because of the exact cartridge designs available. A non-shared cartridge forces the water entirely to one outlet. A shared cartridge splits the flow between two components. Ensure local building codes permit shared flow before installation.

Connecting the primary mixer to the transfer valve requires a precise length of rigid copper tubing. This connection loop must be completely vertical and perfectly plumb to allow the final trim plates to align visually on the tile. Careful strapping prevents pipe chatter and water hammer effects.

Positioning the Components on the Wall

Physical placement of each fixture directly affects usability and rough framing. The spout sits lowest, typically dropping four to six inches above the basin rim. The main mixing valve rests thirty to thirty-six inches from the floor. The diverter valve sits just above the mixer, separated by the required trim distance.

Placing the handheld bracket requires evaluating the primary users. Mounting the slide bar off-center prevents the hose from tangling around the controls. Standard placement puts the bottom of the bar around forty-two inches high. An off-center installation also visually separates a black shower system with handheld and tub spout finishes.

The fixed showerhead arm extends from the highest point in the system. Standard practice puts this drop ear elbow roughly eighty inches from the floor pan. You must add solid horizontal wood blocking between the wall studs at every fixture location to support the heavy brass components.

Planning the Plumbing Loop and Pipe Sizing

The internal piping network dictates the final pressure drop across the entire system. Running a dedicated home run to each outlet from the transfer valve reduces friction loss. Using three-quarter-inch pipe for the main supply lines ensures adequate volume, while you can step down to half-inch pipe for individual runs.

The lower connection demands special attention to pipe sizing and routing. You must pipe the drop to the basin filler in rigid half-inch copper, entirely avoiding PEX. PEX fittings restrict the internal diameter, causing water to back up and spill out of the upper fixtures while filling the bathtub.

Securing the entire plumbing loop inside the wall cavity stops vibration. Install pipe clamps every two feet along vertical runs and right before any ninety-degree elbows. Adding water hammer arrestors to the supply lines near the main mixer absorbs kinetic energy when ceramic cartridges snap shut.

Testing Rough In Connections Before Drywall

Closing the walls before performing a rigorous pressure test is a massive risk. You must cap all three outlet points using threaded brass caps. Once sealed, open the main supply lines to charge the entire newly built valve assembly with standard street pressure to verify solder joint integrity.

Leave the system fully pressurized for a minimum of twenty-four hours to reveal microscopic soldering flaws. Inspect every single connection point with a bright flashlight and dry paper towels. Even a single drop forming means you must drain the system and rebuild the faulty joint completely.

Flushing the lines clears out copper shavings, excess flux paste, and debris before you install the internal cartridges. Most rough-in valves come with temporary flush plugs for this purpose. Activating the water pushes foreign material out of the pipes, protecting the rubber seals of your final trim hardware.

Finalizing the Three Outlet Assembly

Successfully mapping out three distinct water delivery points hinges on sufficient incoming volume and accurate valve selection. You secure proper operation by sizing the supply lines correctly, matching the transfer cartridge to your desired flow pattern, and rigidly securing the copper drops. Taking the time to test the pressurized rough assembly ensures your complex three-way configuration will function correctly for decades.
