Model #: TV6805ORB
Bathroom Faucets

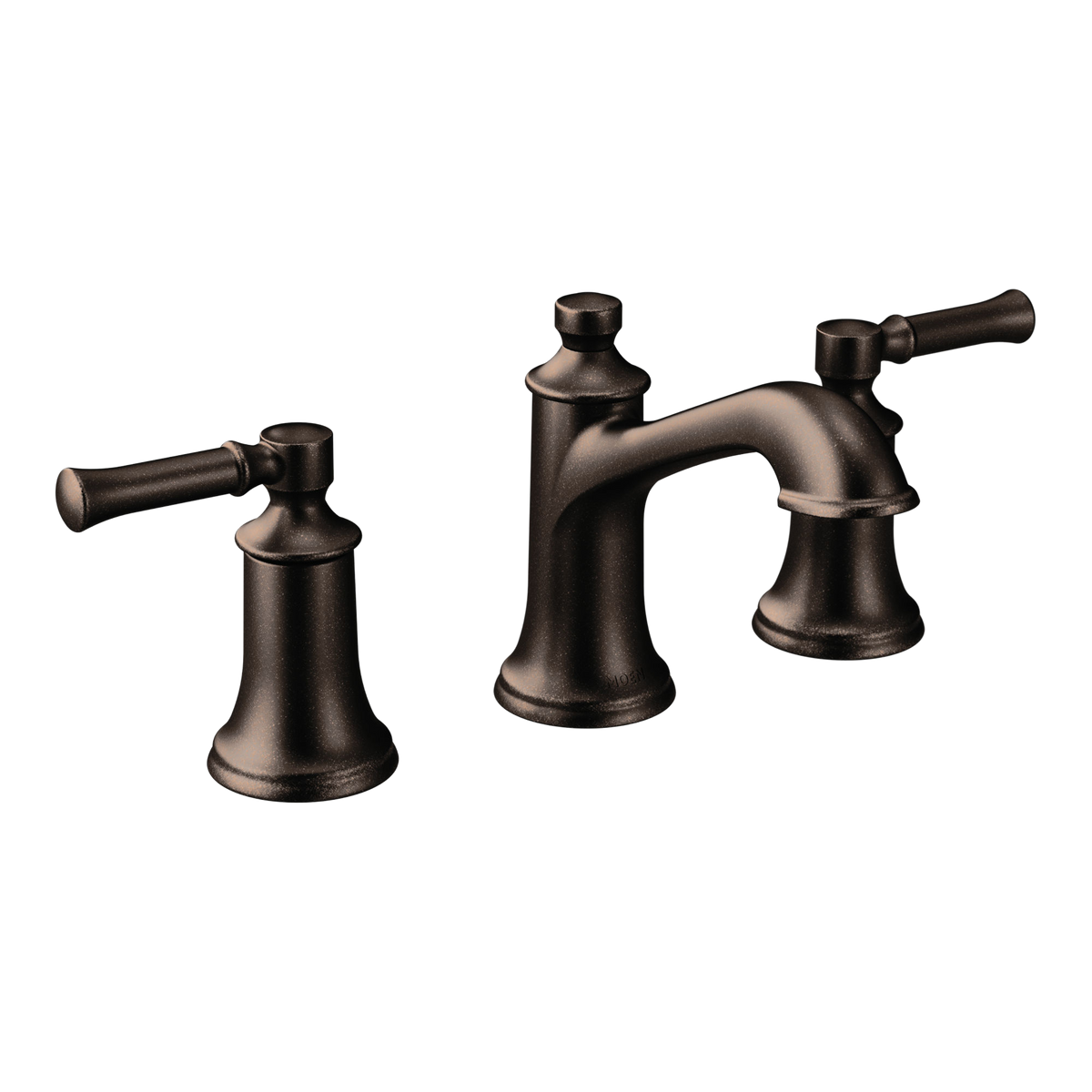

Moen TV6805ORB Dartmoor Oil Rubbed Bronze Two-Handle High Arc Bathroom Faucet, Valve Included
Out of stock
This model is sold out. In stock now:
The same model in another finish where we have it, otherwise the closest Moen match. Genuine Moen, ships from Florida.
-
-
-
Moen 6803 Dartmoor 1.2 GPM Single Hole Bathroom Faucet - Chrome
$199.00$199.00 -
Want this exact one? We will email you when it is back.
Couldn't load pickup availability
- Free US shipping
- Ships in 1 business day
- 30-day returns
- Secure checkout
Description
Valve included. This is a complete Moen two-handle widespread bathroom faucet: the Moen widespread rough-in valve (M-PACT 9000 series) comes in the box together with the spout and handles. No separate rough-in valve purchase is needed.
The Moen TV6805ORB is a Dartmoor two-handle, high arc widespread bathroom sink faucet in an Oil Rubbed Bronze finish. The Moen widespread rough-in valve (M-PACT 9000 series) is included in the box. It suits replacing an existing widespread faucet or completing a bathroom remodel in a classic style.
Key features
- Dartmoor collection styling: gently flared, generously sized spout, sculpted handles and finial detailing
- Two lever handles; hot and cold indicators available
- High arc spout for widespread 3-hole installation
- Oil Rubbed Bronze finish
- Maximum flow rate 1.2 gpm (4.5 L/min) at 60 psi
- The Moen widespread rough-in valve (M-PACT 9000 series) is included in the box.
Compatibility
The Moen widespread rough-in valve (M-PACT 9000 series) is included in the box. the spec sheet does not list specific compatible valve model numbers. Per the spec sheet, the faucet installs through 3 holes, 1-1/8" minimum diameter, with valves installing through 1-1/4" diameter holes. Maximum deck thickness is 1-1/4" (32 mm); for deck thickness of 1-1/2" to 3", use service kit #175709.
Specifications
| Brand | Moen |
|---|---|
| Model | TV6805ORB |
| Collection | Dartmoor |
| Finish | Oil Rubbed Bronze |
| Product type | Bathroom faucet (two-handle widespread lavatory faucet) |
| Valve | The Moen widespread rough-in valve (M-PACT 9000 series) is included in the box. |
| Handles | Two lever handles |
| Mounting | Widespread, 3-hole installation (1-1/8" min. hole diameter) |
| Max deck thickness | 1-1/4" (32 mm); 1-1/2" to 3" with service kit #175709 |
| Flow rate | 1.2 gpm max (4.5 L/min) at 60 psi |
| Certifications | WaterSense; ASME A112.18.1/CSA B125.1; NSF 61/9 & 372; ADA for lever handles |
Specifications
| Brand | Moen |
|---|---|
| Model number | TV6805ORB |
| Product type | Bathroom Faucets |
| Condition | New |
| UPC | 026508378441 |
