Model #: U361CX
Valves & Rough-In Plumbing

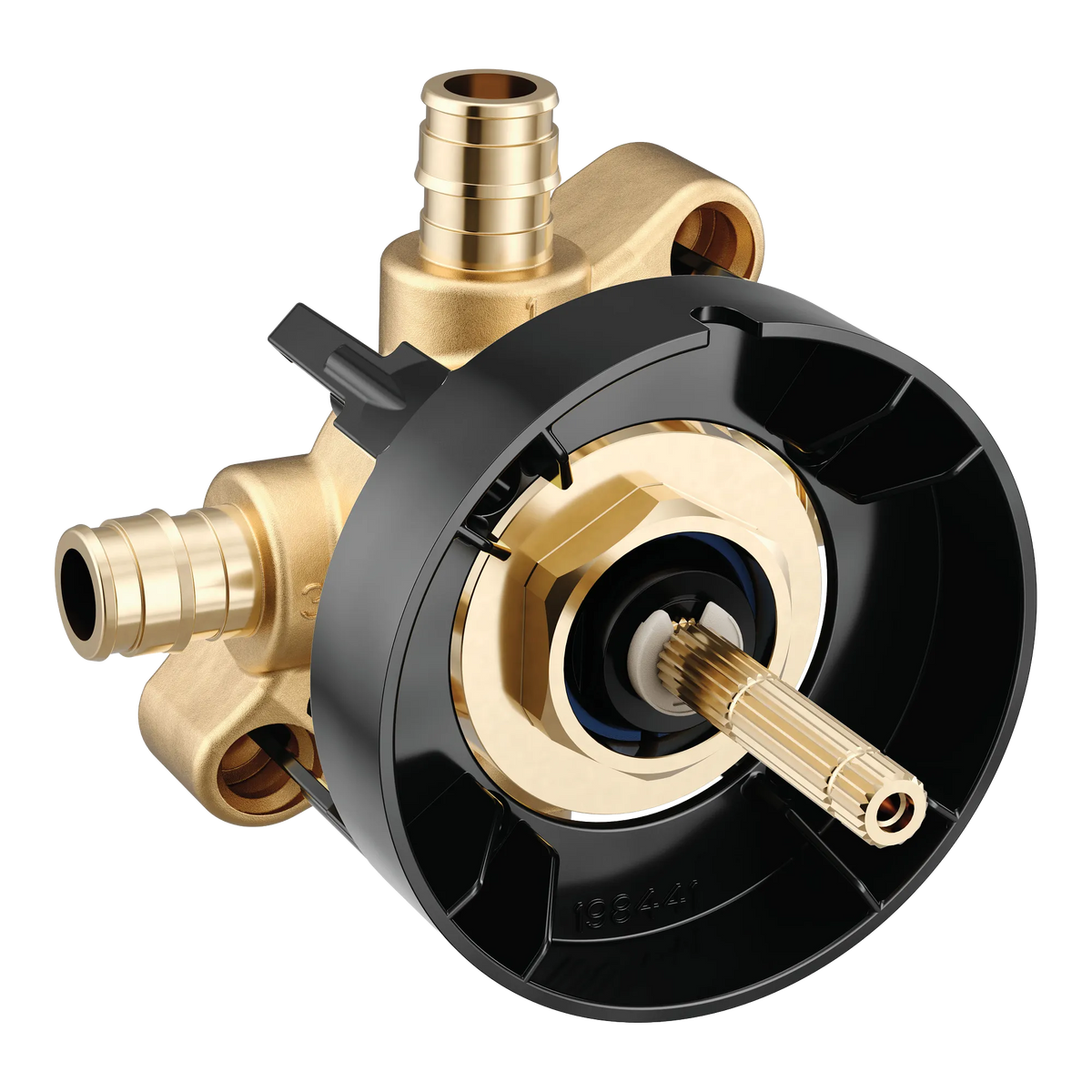

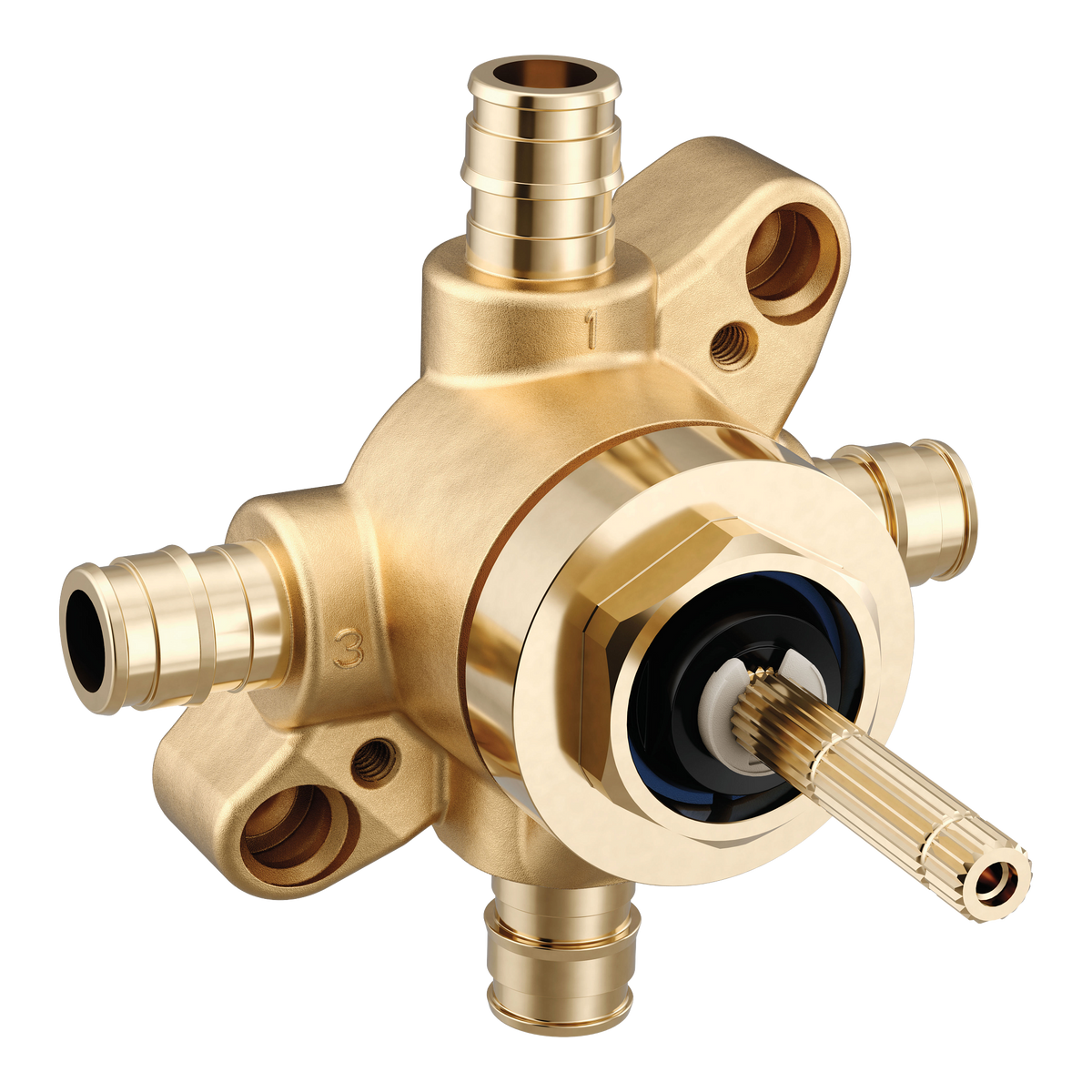

Moen U361CX M-CORE Transfer Rough-In Valve, 1/2" Cold Expansion PEX Connection
1 in stock
Couldn't load pickup availability
$8 US shipping (free on items $100+) · Ships next business day · Arrives in 3–6 business days
- $8 US shipping · free only on items $100+
- Ships in 1 business day
- 30-day returns
- Secure checkout
Description
The Moen U361CX is an M-CORE transfer rough-in valve with 1/2" cold expansion PEX connections. It is installed in the wall to direct water between showering devices in a shower system. It suits new shower builds and remodels that use cold expansion PEX supply lines.
Key features
- M-CORE transfer valve platform, 3 or 6 Function
- 1/2" cold expansion PEX connections
- Brass construction with ceramic disk cartridge
- Detents at each flow position
- Factory set for 2 showering devices, adjustable for 3 showering devices
- Rough-in part with no visible finish
Compatibility
Rough-in transfer valve for M-CORE shower systems with cold expansion PEX supply connections. Factory set for 2 showering devices and adjustable for 3; functionality is 2 independent with 1 shared, or 3 independent with 3 shared. Finished wall thickness 1/4" (6mm) min. to 1" (25mm) max.; walls thicker than 1" (25mm) require an optional extension kit.
Specifications
| Brand | Moen |
|---|---|
| Model | U361CX |
| Product type | Valves & Rough-In Plumbing |
| Valve platform | M-CORE Transfer Valve, 3 or 6 Function |
| Connection | 1/2" Cold Expansion PEX |
| Construction | Brass |
| Cartridge | Ceramic disk cartridge |
| Showering devices | Factory set for 2, adjustable for 3 |
| Functionality | 2 independent with 1 shared, or 3 independent with 3 shared |
| Valve depth (U361CX) | 3-5/8" (92mm) |
| Finished wall thickness | 1/4" (6mm) min. to 1" (25mm) max.; thicker walls require optional extension kit |
| Certifications | Third party certified to meet ASME A112.18/CSA B125.1; ADA for lever handle |
Specifications
| Brand | Moen |
|---|---|
| Model number | U361CX |
| Product type | Valves & Rough-In Plumbing |
| Valve platform | Moen M-CORE |
| Condition | New |
| UPC | 026508319642 |
