Model #: U362CXS

Valves & Rough-In Plumbing

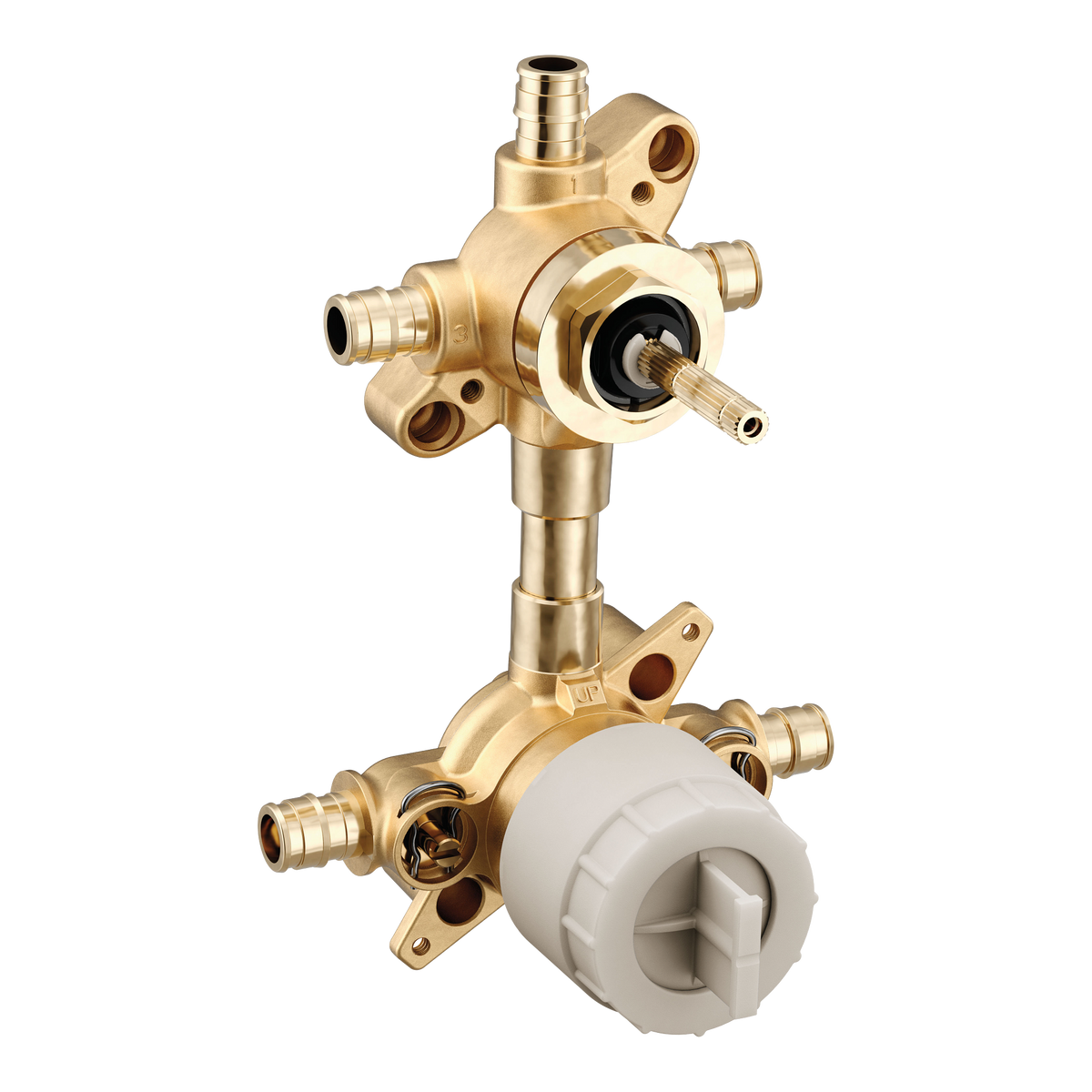

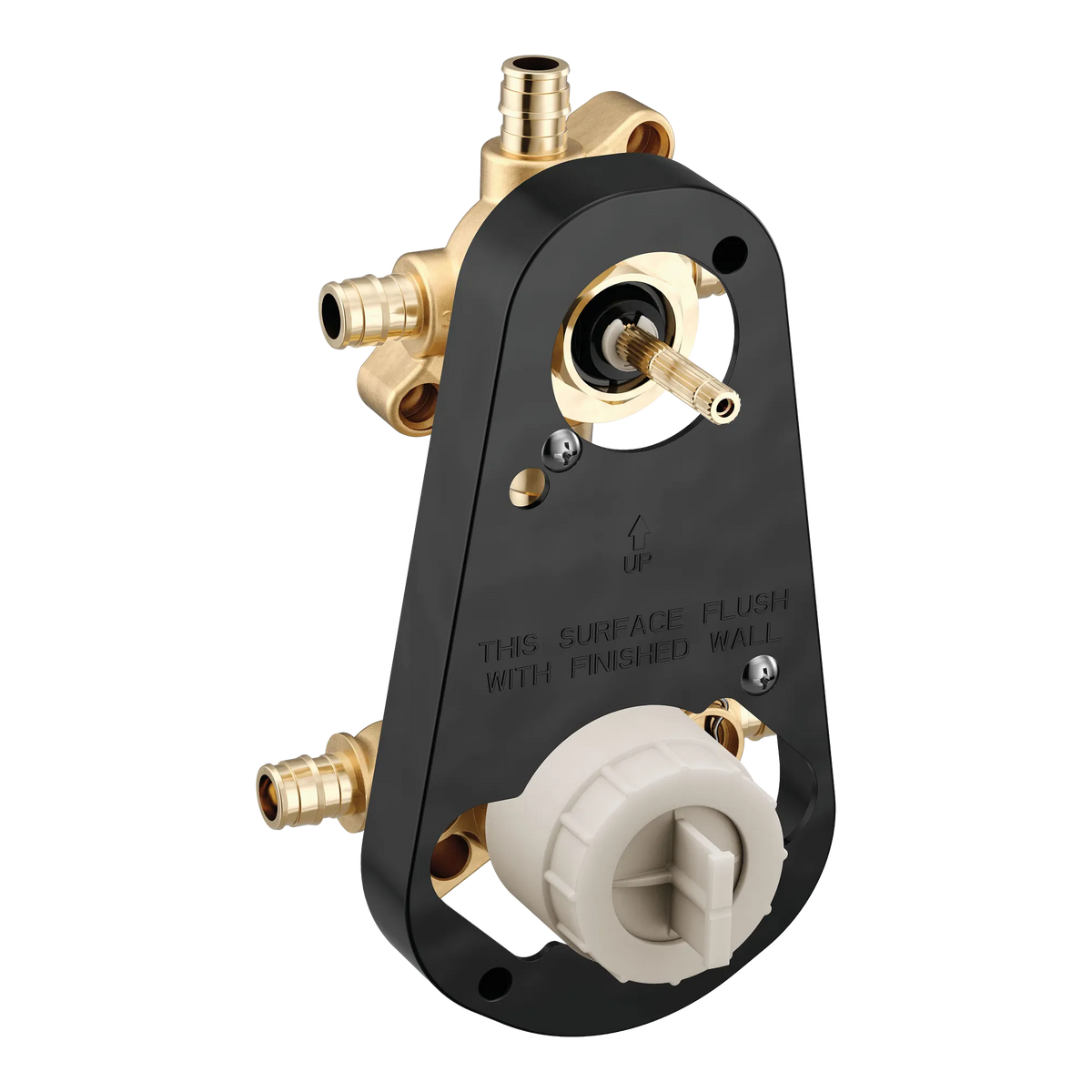

Moen U362CXS M-CORE Transfer Valve with 1/2" Cold Expansion PEX Connection

$124.96
$124.96
Sold out

Out of stock

This model is sold out. In stock now:

The same model in another finish where we have it, otherwise the closest Moen match. Genuine Moen, ships from Florida.

Want this exact one? We will email you when it is back.
  • Free US shipping
  • Ships in 1 business day
  • 30-day returns
  • Secure checkout

Genuine Moen products, offered unused by an independent retailer. Products may arrive in original or replacement packaging. Manufacturer warranty coverage may vary; purchases are backed by AquaLux Studio’s Limited Warranty.

The Moen U362CXS is an M-CORE rough-in valve with an integrated transfer valve and 1/2" cold expansion PEX connections, built for shower systems with multiple showering devices. It has no tub outlet and installs in thin or thick wall applications. It suits both new shower installations and remodels, paired with an M-CORE 3-Series trim kit sold separately.

Key features

  • Brass construction
  • Integrated 3 Function / 6 Function transfer valve with ceramic disk cartridge
  • 1/2" cold expansion PEX inlets; outlets match the inlet connection type
  • 1/4 turn stops on each inlet
  • Factory set for 2 showering devices, adjustable for 3 showering devices
  • Supplied flush plug allows testing up to 200 PSI with air (300 PSI water)

What's in the box

  • Flush plug
  • 3 Function / 6 Function ceramic disk cartridge for transfer valve

Compatibility

Shower-only installations (no tub outlet) in thin or thick walls; walls thicker than 1" (25mm) require an optional extension kit. The mixing cartridge is supplied in the M-CORE 3-Series trim kit, sold separately.

Specifications

Brand Moen
Model U362CXS
Product type Valves & Rough-In Plumbing
Valve platform M-CORE with integrated transfer valve
Inlet connection 1/2" Cold Expansion PEX
Outlets Match inlet connection type; no tub outlet
Construction Brass
Stops 1/4 turn stops on each inlet
Cartridge 3 Function / 6 Function ceramic disk cartridge for transfer valve included; mixing cartridge supplied in M-CORE 3-Series trim kit
Functionality 2 independent / 1 shared or 3 independent / 3 shared
Wall thickness Thin or thick wall; walls thicker than 1" (25mm) require optional extension kit
Certifications Third party certified to meet ASME A112.18.1/CSA B125.1

Manufacturer specification sheet: Moen U362CXS specifications (PDF)

 View Product Details

Specifications

BrandMoen
Model numberU362CXS
Product typeValves & Rough-In Plumbing
Valve platformMoen M-CORE
ConditionNew
UPC026508319673
